Hydraulic Manifold Valve Block SD5-G38 1 Spool Directional Valve: A Game-Changer in Fluid Power

Control Method:Manual

Spool:1 Spool

Rated Flow:45 L/min (11.8 US gpm)

Max Pressure:315 bar (4600 psi)

Inlet Port:G3/8

Outlet Port:G3/8

Port Size:G3/8

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:SD5 Series Monoblock Directional Valve

Packagingsize:23*20*12

Grossweight:3.80 kg

Availability: In Stock

755 Views are Looking for this Product

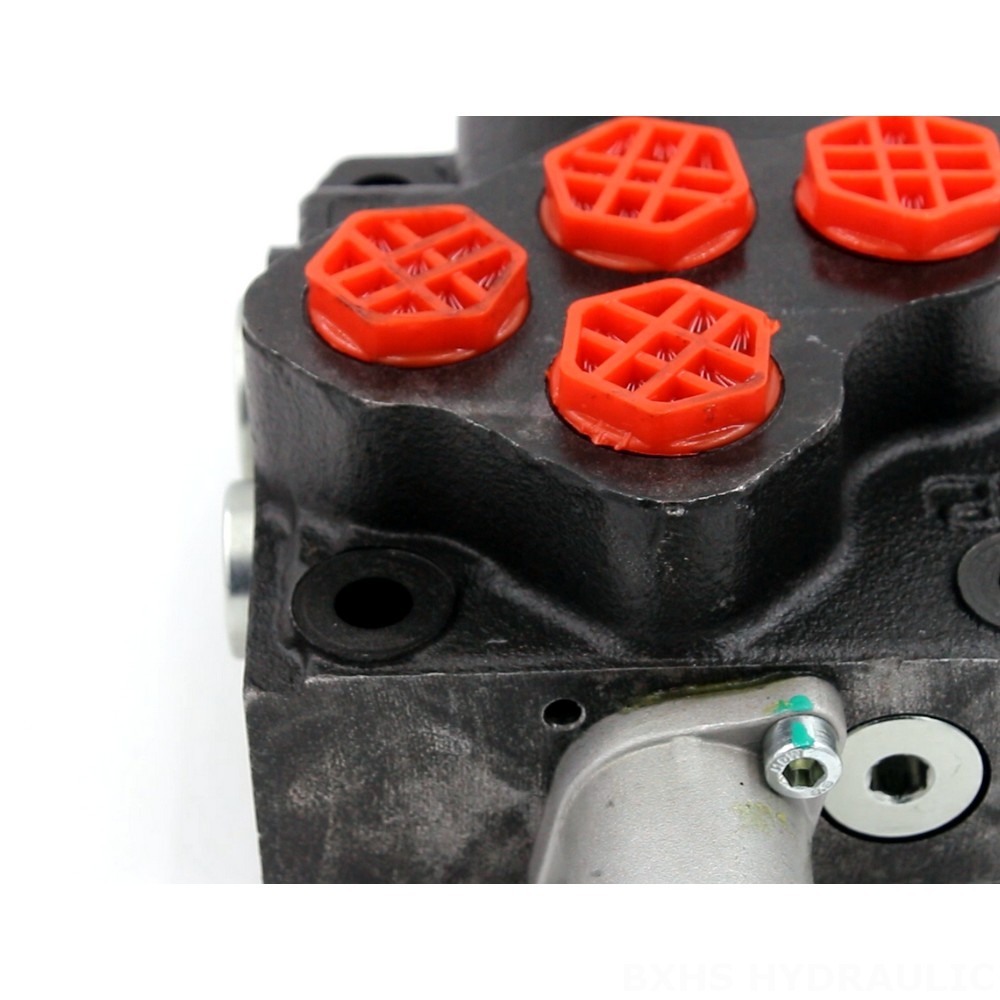

Hydraulic Manifold Valve Block SD5-G38 1 Spool Directional Valve: A Game-Changer in Fluid Power detailed image

Hydraulic Manifold Valve Block SD5-G38 1 Spool Directional Valve: A Game-Changer in Fluid Power detailed image

Hydraulic Manifold Valve Block SD5-G38 1 Spool Directional Valve: A Game-Changer in Fluid Power drawing image

The SD5-G38 1 Spool Directional Valve is a high-performance, compact hydraulic manifold block designed for use in a wide range of applications, including material handling, construction, and agriculture. Featuring a monoblock structure, manual control, and a rated flow of 40 L/min, this valve is a reliable and efficient solution for controlling hydraulic circuits.

SD5 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool
Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 305 bar (4400 psi)
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +60°C (-40°F to +140°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

The SD5-G38 1 Spool Directional Valve is a robust and versatile component for fluid power systems. This monoblock valve offers manual control and features a single spool design for precise and efficient operation. With a rated flow of 40 L/min and a maximum pressure rating of 305 bar, this valve is well-suited for demanding applications. Its wide operating viscosity range and ambient temperature tolerance ensure reliable performance in various environments. The SD5-G38 is specifically designed for use in a range of equipment, including telehandlers, forklifts, mini excavators, skid steer loaders, and more. The valve's compact size and integrated design make it an ideal choice for applications where space is limited. Choose the SD5-G38 1 Spool Directional Valve for reliable and efficient hydraulic control.

Hydraulic Manifold Valve Block SD5-G38 1 Spool Directional Valve: A Game-Changer in Fluid Power application image

Hydraulic Manifold Valve Block SD5-G38 1 Spool Directional Valve: A Game-Changer in Fluid Power packing image

Hydraulic Manifold Valve Block SD5-G38 1 Spool Directional Valve: A Game-Changer in Fluid Power company image

Hydraulic Manifold Valve Block SD5-G38 1 Spool Directional Valve: A Game-Changer in Fluid Power certification image
