Hydraulic Pressure Compensated Valves Source High-Quality P120 Valves Directly from the Factory

Control Method:Manual

Spool:2 Spool

Rated Flow:120 L/min (31.7 US gpm)

Max Pressure:250 bar (3600 psi)

Inlet Port:G3/4

Outlet Port:G1

Port Size:G3/4

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P120 Series Monoblock Directional Valve

Packagingsize:30*39*17

Grossweight:19.00 kg

Availability: In Stock

589 Views are Looking for this Product

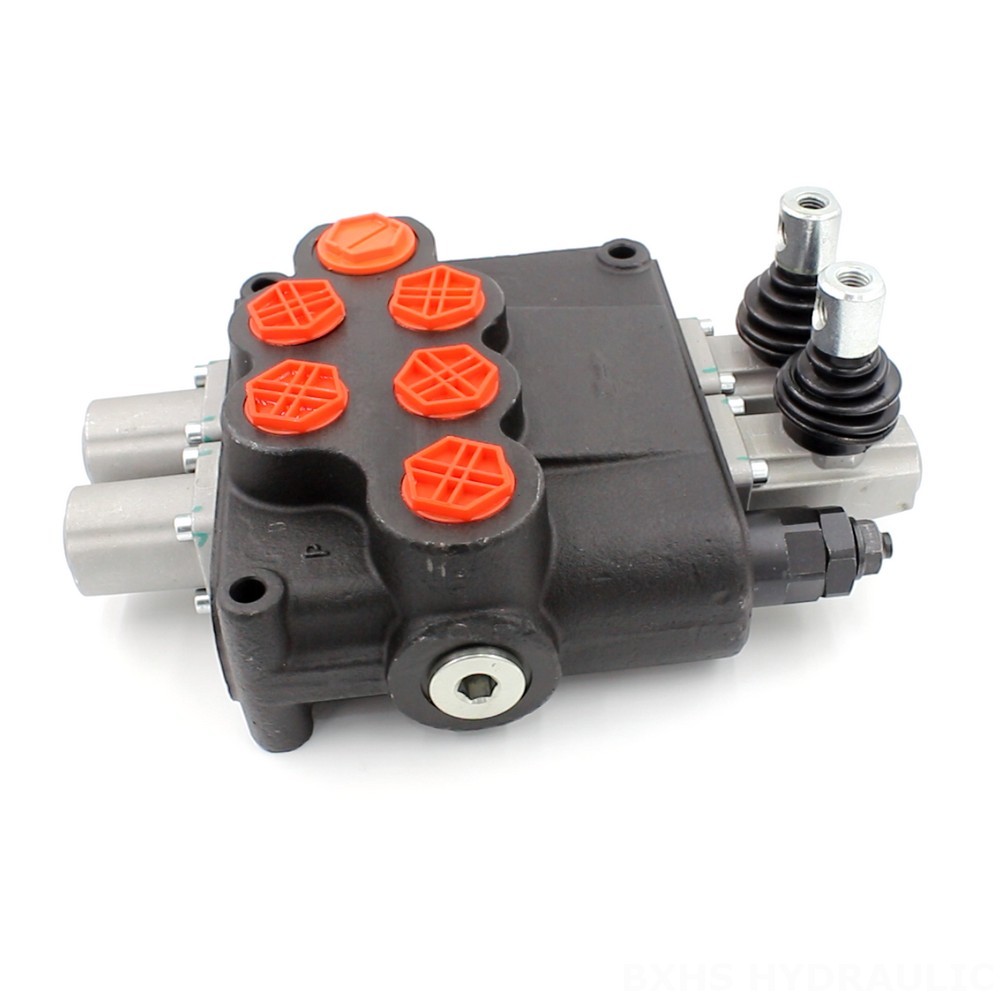

Hydraulic Pressure Compensated Valves Source High-Quality P120 Valves Directly from the Factory detailed image

Hydraulic Pressure Compensated Valves Source High-Quality P120 Valves Directly from the Factory detailed image

Hydraulic Pressure Compensated Valves Source High-Quality P120 Valves Directly from the Factory drawing image

Our P120 Series Hydraulic Pressure Compensated Valves are high-quality, reliable, and designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. Get yours directly from the factory!

P120 Series Monoblock Directional Valve Parameters
Control Method Manual, Cable, Joystick, Manual and Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool
Rated Flow 120 L/min (31.7 US gpm)
Max Pressure 250 bar (3600 psi)
Section 1 Section, 2 Section, 3 Section, 4 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

This P120 Series Hydraulic Pressure Compensated Valve is a high-performance, reliable solution for a wide range of applications. With a rated flow of 120 L/min (31.7 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve is suitable for use in demanding environments. The valve's monoblock construction ensures durability and long life, and the manual control method makes it easy to operate. We offer this P120 Valve directly from our factory at competitive prices. We are also a leading manufacturer of hydraulic components and can provide you with customized solutions to meet your specific needs. Whether you need a single valve or a complete hydraulic system, we have the expertise and resources to deliver. Contact us today to learn more about our products and services.
