Hydraulic Pressure Control Valves Manual Hydraulic Valve P80-G34-G12 | Wholesale & Distribution

Control Method:Manual

Spool:2 Spool

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:250 bar (3600 psi)

Inlet Port:G1/2

Outlet Port:G1/2

Port Size:G1/2

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Packagingsize:26*18*11

Grossweight:8.20 kg

Availability: In Stock

553 Views are Looking for this Product

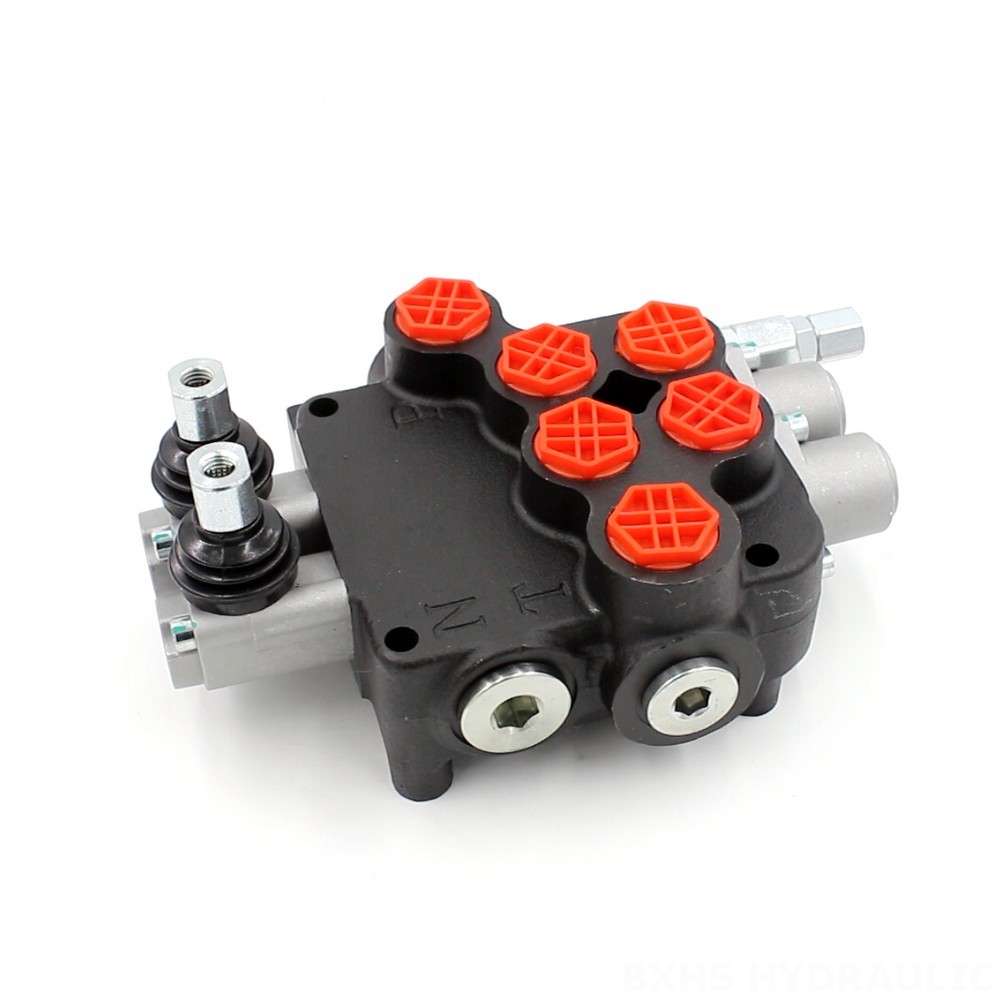

Hydraulic Pressure Control Valves Manual Hydraulic Valve P80-G34-G12 | Wholesale & Distribution detailed image

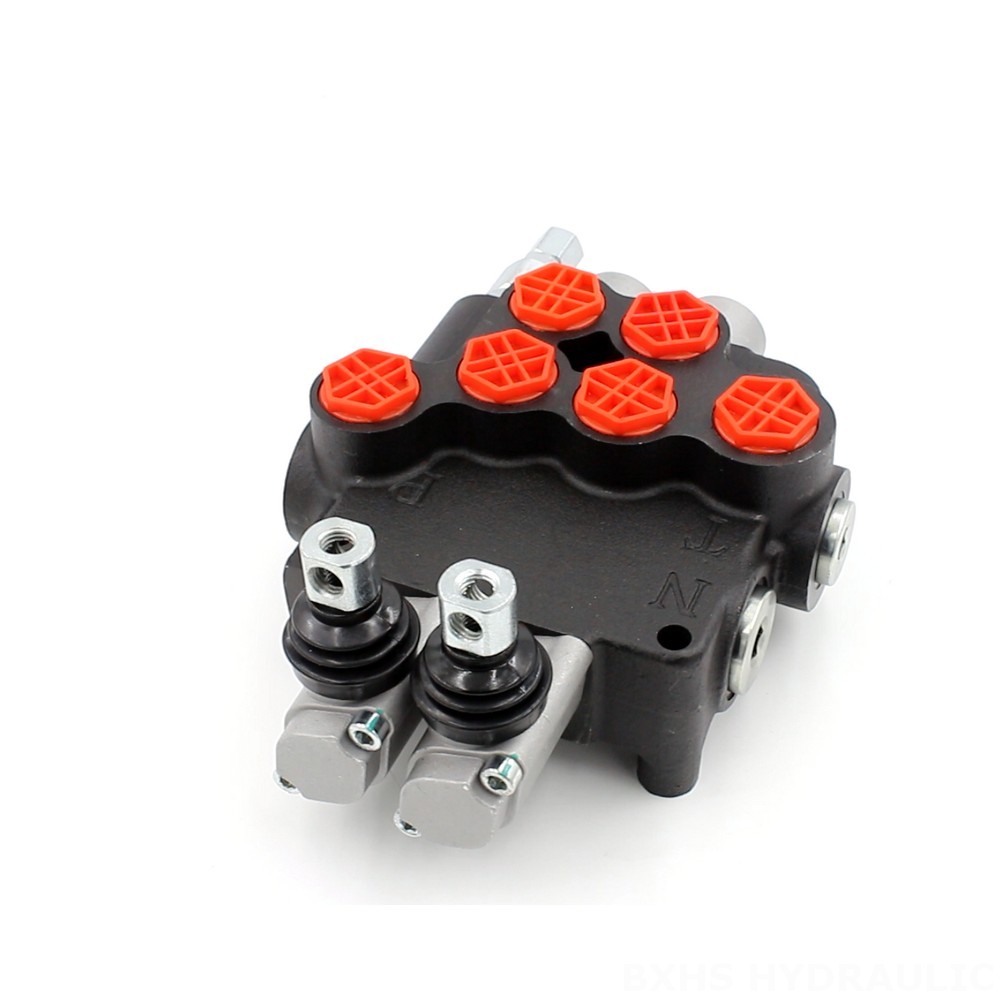

Hydraulic Pressure Control Valves Manual Hydraulic Valve P80-G34-G12 | Wholesale & Distribution detailed image

Hydraulic Pressure Control Valves Manual Hydraulic Valve P80-G34-G12 | Wholesale & Distribution drawing image

The P80-G34-G12 is a manual hydraulic pressure control valve designed for use in various applications, including construction equipment, material handling, agriculture, and industrial vehicles. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this monoblock valve offers reliable performance and durability.

P80 Series Monoblock Directional Valve Parameters
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure 315 bar (4600 psi)
Rated Flow 80 L/min (21.2 US gpm)
Structure Type Monoblock valve

The P80-G34-G12 is a 2-section manual hydraulic pressure control valve featuring a monoblock design. This valve is specifically engineered for demanding applications in the construction, material handling, agriculture, and industrial vehicle industries. With a rated flow of 80 L/min and a maximum pressure rating of 250 bar, the P80-G34-G12 offers exceptional performance across a wide range of operating conditions. Its robust construction ensures long-lasting durability and reliability in even the most challenging environments. This versatile valve is suitable for use in various machines such as telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, and compact wheel loaders. The P80-G34-G12 provides precise control of hydraulic pressure, enabling smooth and efficient operation in various applications. Its compact size and lightweight design allow for easy installation and integration into a variety of systems.
