Hydraulic Valve 120 Valve Factory Direct Supply of P40 Solenoid and Joystick Hydraulic Valves

Control Method:Solenoid and Joystick

Spool:3 Spool

Rated Flow:40 L/min (10.5 US gpm)

Max Pressure:250 bar (3600 psi)

Inlet Port:G1/2

Outlet Port:G1/2

Port Size:G3/8

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Packagingsize:30*22*15

Grossweight:10.00 kg

Availability: In Stock

735 Views are Looking for this Product

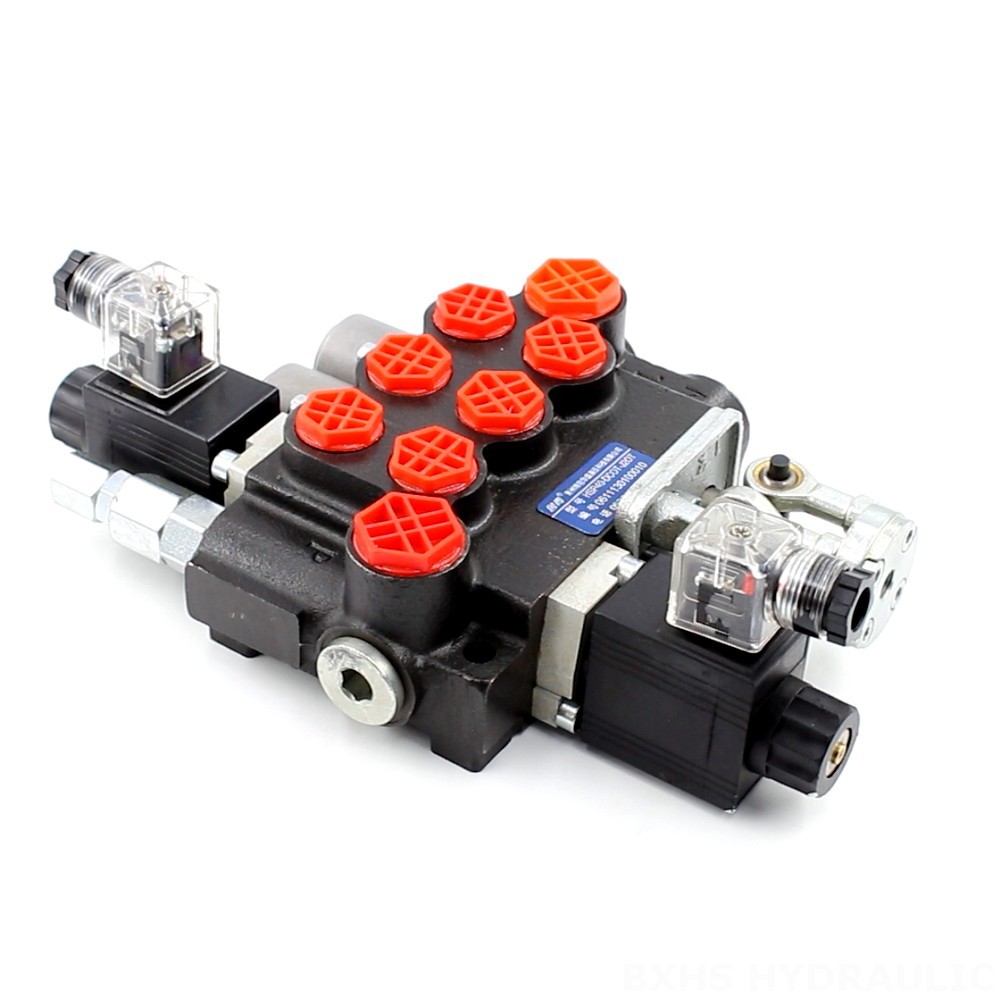

Hydraulic Valve 120 Valve Factory Direct Supply of P40 Solenoid and Joystick Hydraulic Valves detailed image

Hydraulic Valve 120 Valve Factory Direct Supply of P40 Solenoid and Joystick Hydraulic Valves detailed image

Hydraulic Valve 120 Valve Factory Direct Supply of P40 Solenoid and Joystick Hydraulic Valves drawing image

This high-performance P40 series hydraulic valve is designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. It features a robust monoblock design, solenoid and joystick control options, and a rated flow of 40 L/min. This valve is ideal for telehandlers, forklifts, mini-excavators, and more.

P40 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 250 bar (3600 psi)
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

This P40 series hydraulic valve is a reliable and durable solution for a wide range of heavy-duty applications. It features a 3-section monoblock design for exceptional strength and performance. The valve is available with both solenoid and joystick control options, providing versatility and ease of operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is capable of handling demanding hydraulic systems. It's suitable for use in telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers, tractors, and harvesters. This valve is manufactured to the highest standards and is backed by factory direct supply, ensuring quality and affordability.

Hydraulic Valve 120 Valve Factory Direct Supply of P40 Solenoid and Joystick Hydraulic Valves application image

Hydraulic Valve 120 Valve Factory Direct Supply of P40 Solenoid and Joystick Hydraulic Valves packing image

Hydraulic Valve 120 Valve Factory Direct Supply of P40 Solenoid and Joystick Hydraulic Valves company image

Hydraulic Valve 120 Valve Factory Direct Supply of P40 Solenoid and Joystick Hydraulic Valves certification image
