Hydraulic Valve For Agricultural Machinery SD5 Hydraulic Valve | Key Features and Applications

Control Method:Solenoid

Spool:3 Spool

Rated Flow:45 L/min (11.8 US gpm)

Max Pressure:315 bar (4600 psi)

Inlet Port:G3/8

Outlet Port:G3/8

Port Size:G3/8

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:SD5 Series Monoblock Directional Valve

Packagingsize:30*21*13

Grossweight:9.00 kg

Availability: In Stock

642 Views are Looking for this Product

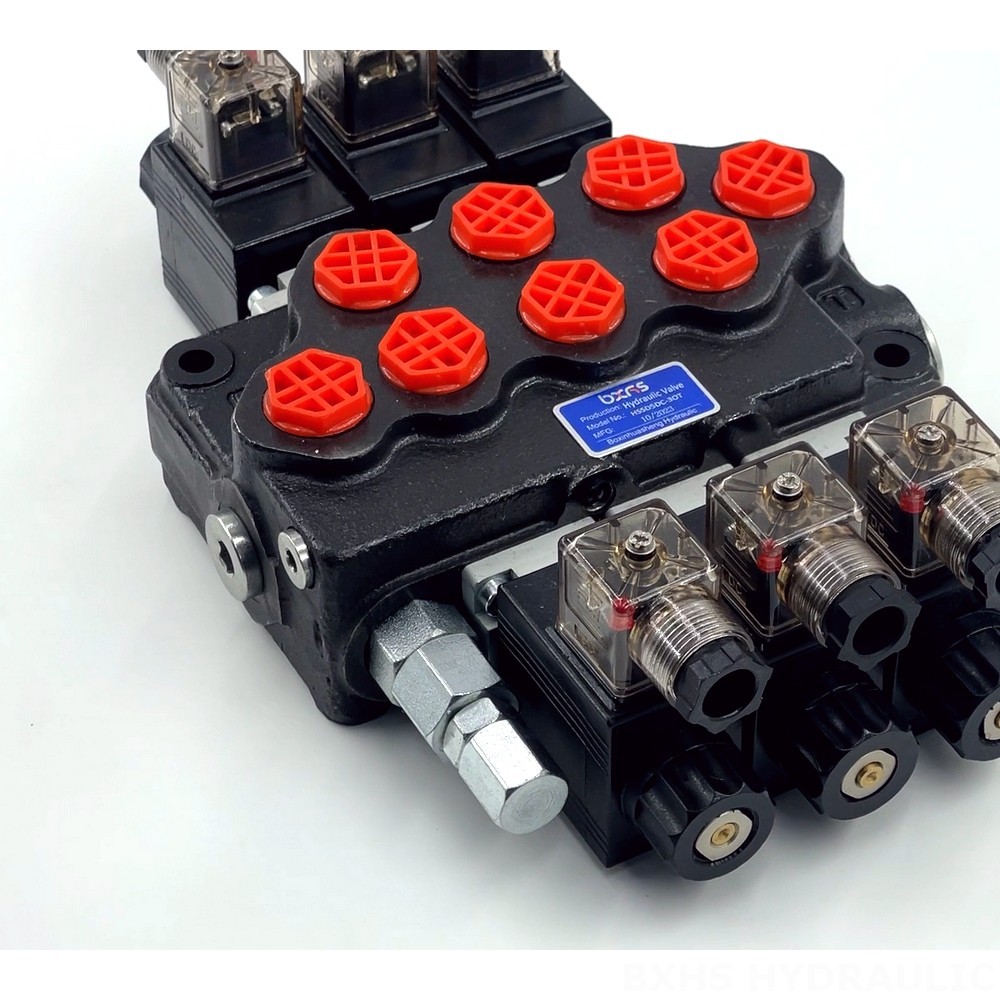

Hydraulic Valve For Agricultural Machinery SD5 Hydraulic Valve | Key Features and Applications detailed image

Hydraulic Valve For Agricultural Machinery SD5 Hydraulic Valve | Key Features and Applications detailed image

Hydraulic Valve For Agricultural Machinery SD5 Hydraulic Valve | Key Features and Applications drawing image

The SD5 Hydraulic Valve is a high-performance solenoid-controlled monoblock valve designed for use in agricultural machinery, construction equipment, and industrial vehicles. With a rated flow of 40 L/min and a maximum pressure of 305 bar, it's ideal for applications demanding reliable hydraulic control.

SD5 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool
Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 305 bar (4400 psi)
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +60°C (-40°F to +140°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

This 3-section SD5 Series valve offers exceptional control with its solenoid operation and robust construction. Designed for demanding environments, it boasts an operating viscosity range of 15 - 75 mm²/s and a wide ambient temperature range from -40°C to +60°C. With its 3 spools and 40 L/min rated flow, it's perfect for controlling hydraulic systems in a variety of agricultural machinery, including telehandlers, forklifts, mini-excavators, skid steer loaders, and more. Its monoblock design ensures durability and reliable performance, making it a valuable asset for any hydraulic system.

Hydraulic Valve For Agricultural Machinery SD5 Hydraulic Valve | Key Features and Applications application image

Hydraulic Valve For Agricultural Machinery SD5 Hydraulic Valve | Key Features and Applications packing image

Hydraulic Valve For Agricultural Machinery SD5 Hydraulic Valve | Key Features and Applications company image

Hydraulic Valve For Agricultural Machinery SD5 Hydraulic Valve | Key Features and Applications certification image
