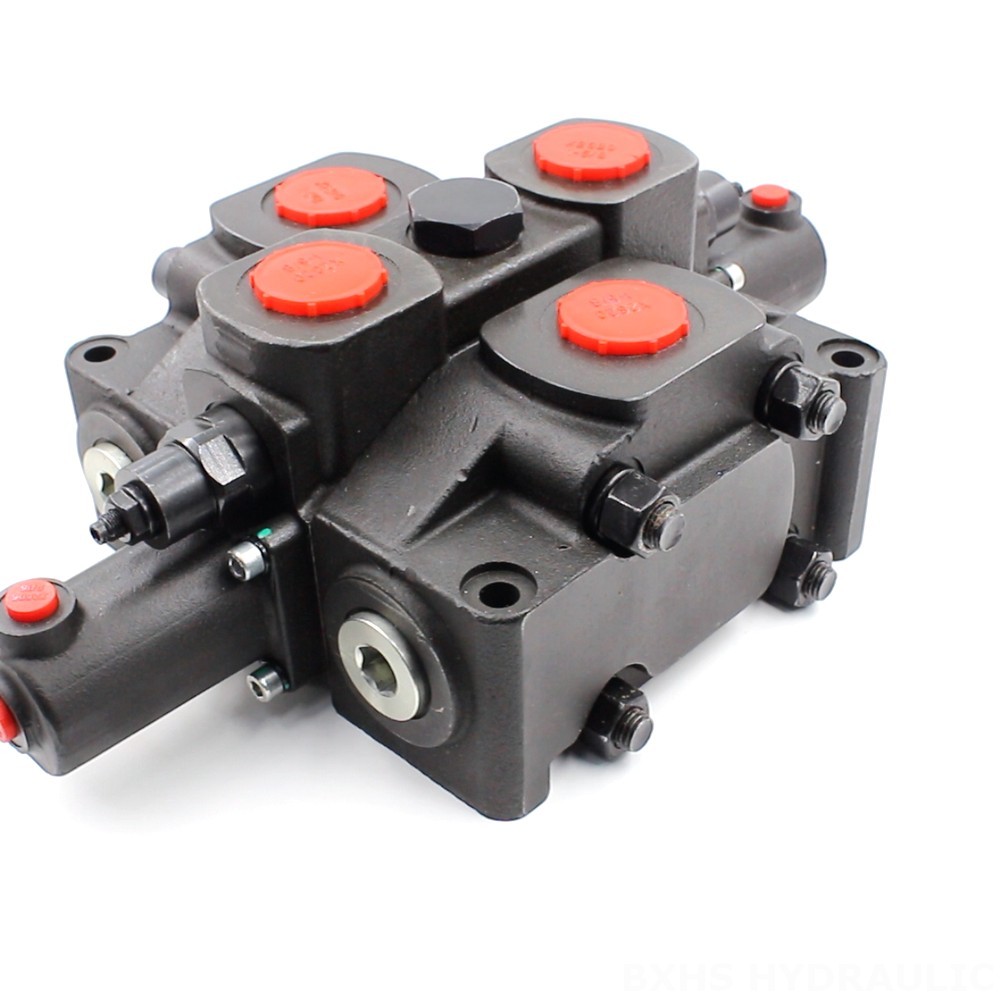

The SDS380 Directional Valve is a high-performance hydraulic valve designed for optimal flow control in heavy-duty applications. Featuring a robust sectional design, it delivers reliable operation for demanding tasks.
| SDS380 Series Sectional Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Cable |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool |
| Rated Flow | 380 L/min (100.4 US gpm) |
| Max Pressure | 315 bar (4600 psi) |
| Inlet Port | G1-1/2, SAE 20 |
| Outlet Port | G1-1/2 |
| Port Size | G1-1/2 |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section, 11 Section, 12 Section |
| Structure Type | Sectional valve |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
The SDS380 Directional Valve is a robust and reliable hydraulic valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. With a rated flow of 380 L/min (100.4 US gpm) and a maximum pressure rating of 315 bar (4600 psi), this 1-section sectional valve provides precise flow control for a wide range of hydraulic systems. It's ideal for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, wheel loaders, tractors, front-end loaders, and harvesters. The valve features a compact design, easy installation, and exceptional durability for long-lasting performance. Its operating temperature range from -40°C to +80°C (-40°F to +176°F) ensures reliable operation in various environments.
