Hydraulic Valves Manufacturer: Providing P80-U78 Valve & Other Hydraulic Products

Control Method:Manual

Spool:1 Spool

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:250 bar (3600 psi)

Inlet Port:SAE 10

Outlet Port:SAE 10

Port Size:SAE 10

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Packagingsize:26*15*11

Grossweight:5.00 kg

Availability: In Stock

2759 Views are Looking for this Product

Hydraulic Valves Manufacturer: Providing P80-U78 Valve & Other Hydraulic Products detailed image

Hydraulic Valves Manufacturer: Providing P80-U78 Valve & Other Hydraulic Products detailed image

Hydraulic Valves Manufacturer: Providing P80-U78 Valve & Other Hydraulic Products drawing image

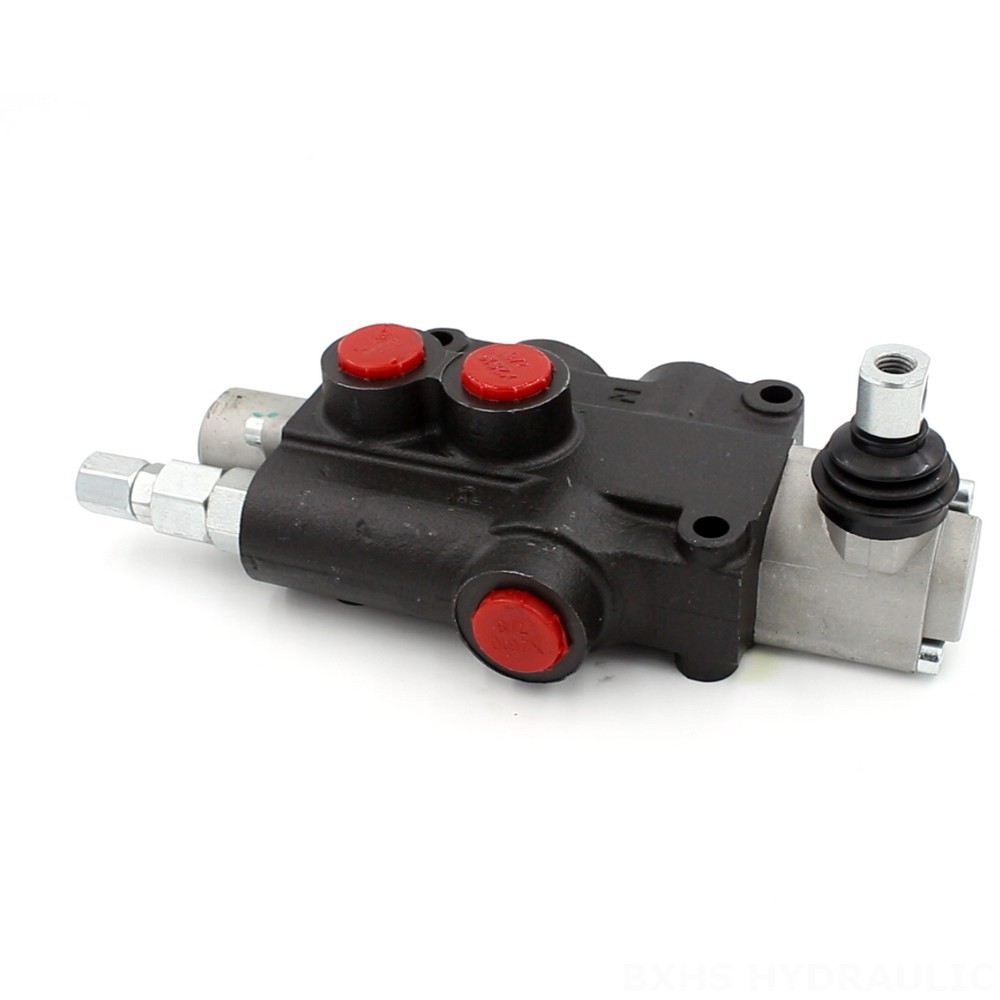

This hydraulic valve is a P80-U78 valve with manual control. It is a monoblock valve with a rated flow of 80 L/min and a maximum pressure of 250 bar. It has an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C. It has 1 spool and is part of the P80 series. It is suitable for use in material handling, construction and earth moving, agriculture, and industrial vehicles.

P80 Series Monoblock Directional Valve Parameters
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure 315 bar (4600 psi)
Rated Flow 80 L/min (21.2 US gpm)
Structure Type Monoblock valve

**Product Name:** Hydraulic Valves Manufacturer: Providing P80-U78 Valve & Other Hydraulic Products
**Control Method:** Manual
**Section:** 1 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 80 L/min (21.2 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 1 Spool
**Series:** P80 Series
**Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER
