JHP2080-2080 80 cc/rev 16 MPa (2320 psi) Hydraulic Gear Pump

Rated Pressure:16 MPa (2320 psi)

Max Pressure:18 MPa (2610 psi)

Vendor:BXHS

Product Type:Hydraulic Gear Pump

Product Series:JHP Tandem Series Hydraulic Gear Pump

Productsize:44*16*14.5

Netweight:32.00 kg

Availability: In Stock

  • 10 cc/rev
  • 32 cc/rev
  • 40 cc/rev
  • 63 cc/rev
  • 80 cc/rev
  • 100 cc/rev
  • 125 cc/rev
  • 140 cc/rev
  • 160 cc/rev
  • 90 cc/rev
  • 16 cc/rev
369 Views are Looking for this Product

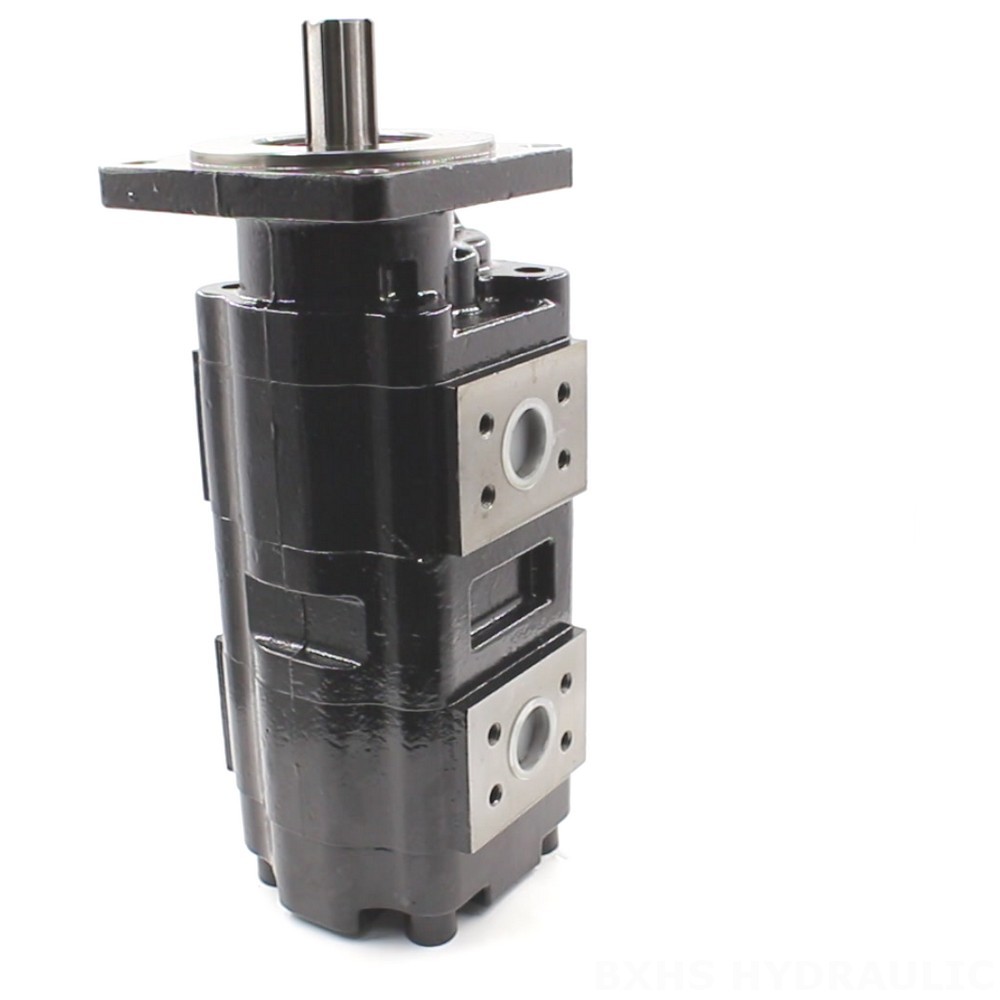

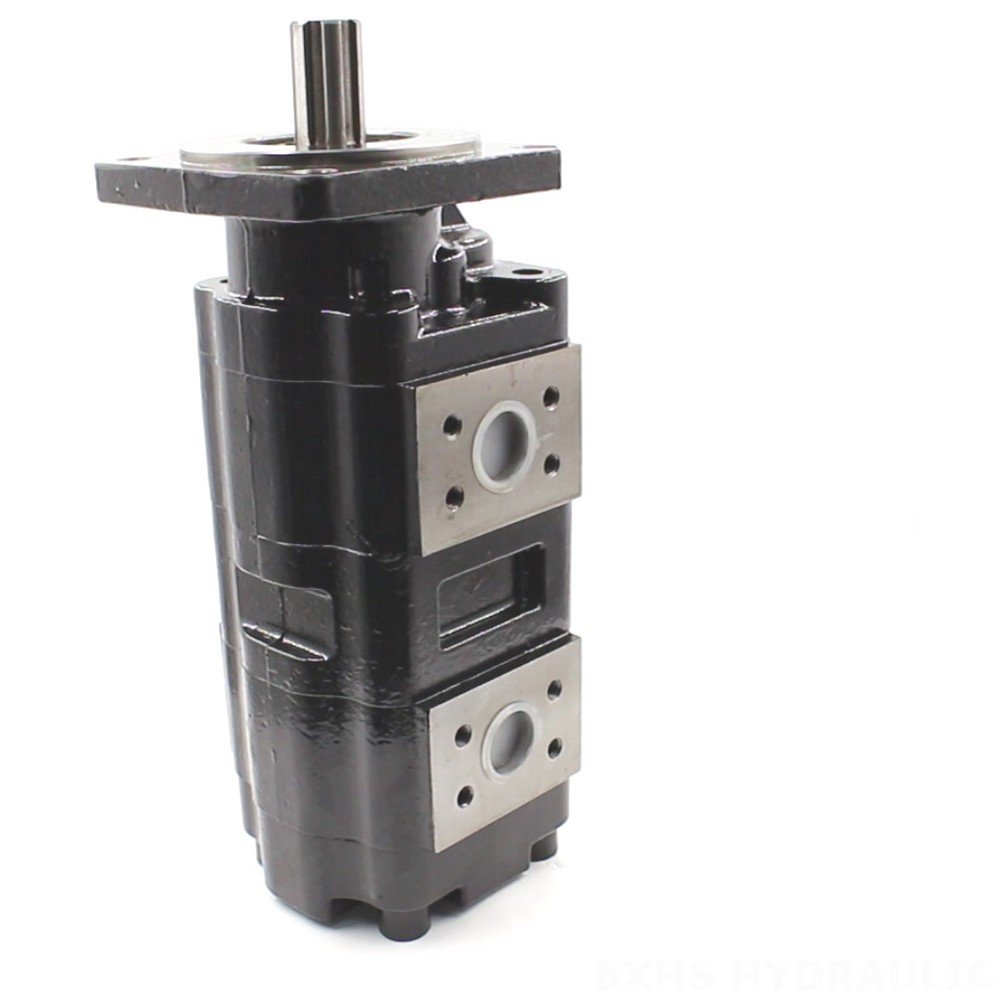

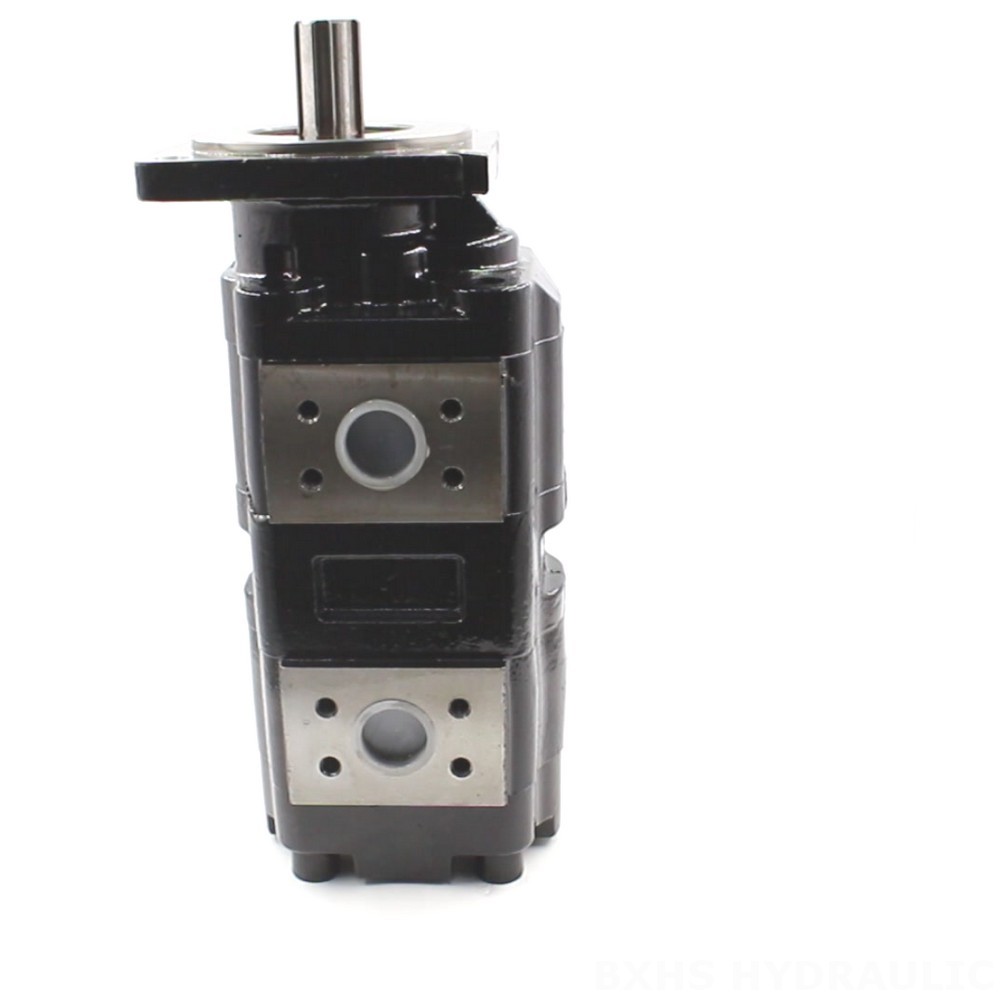

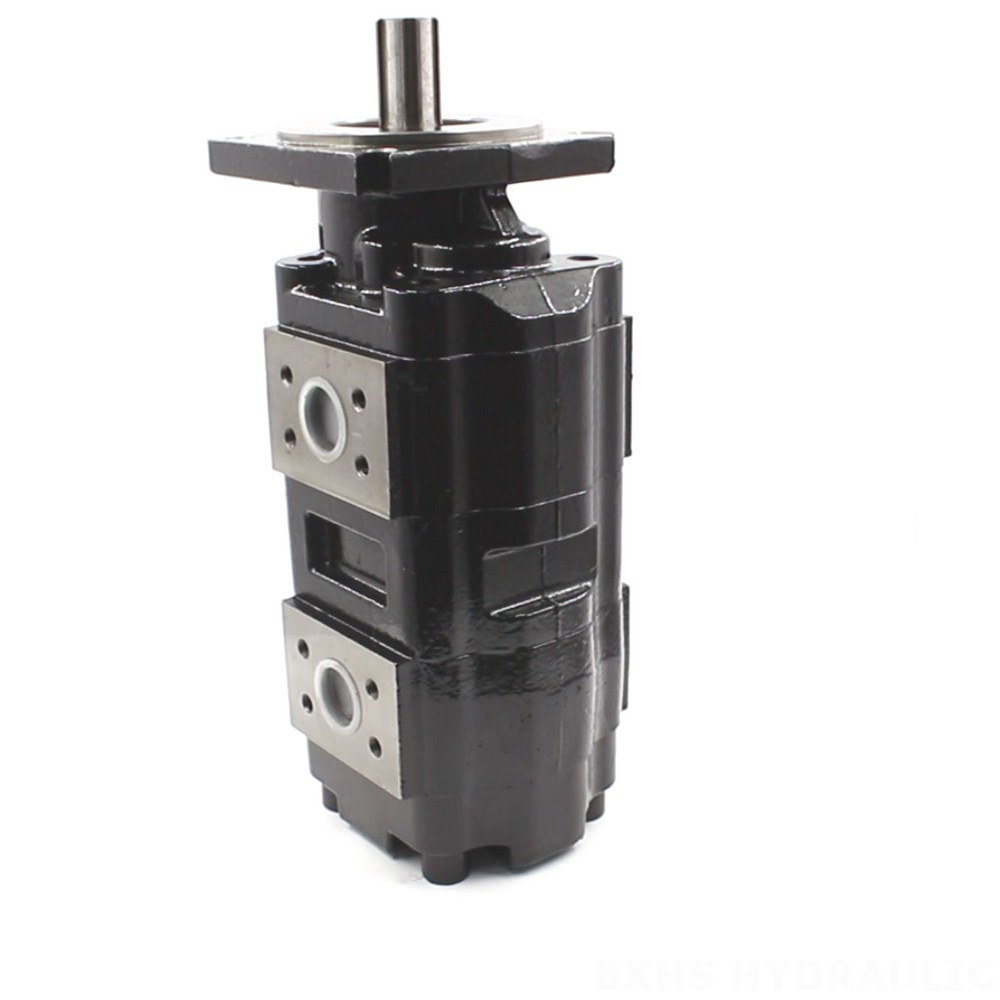

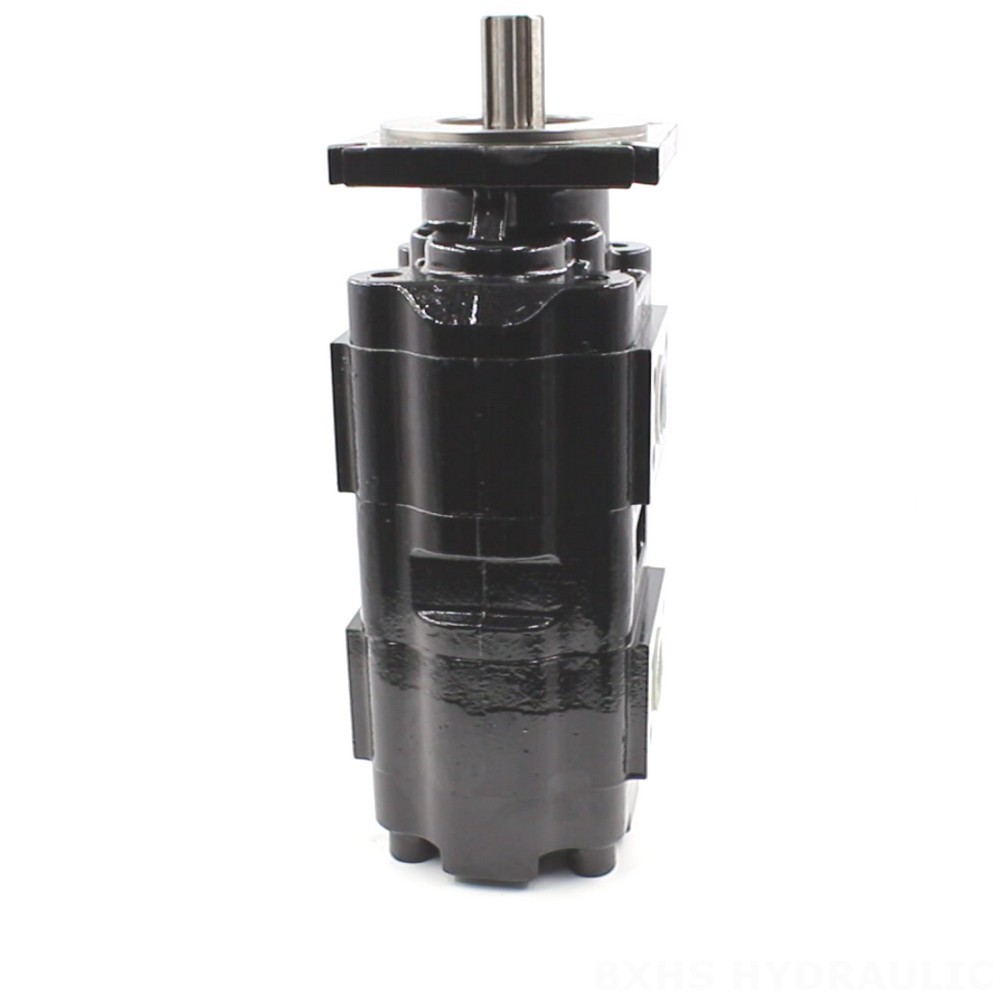

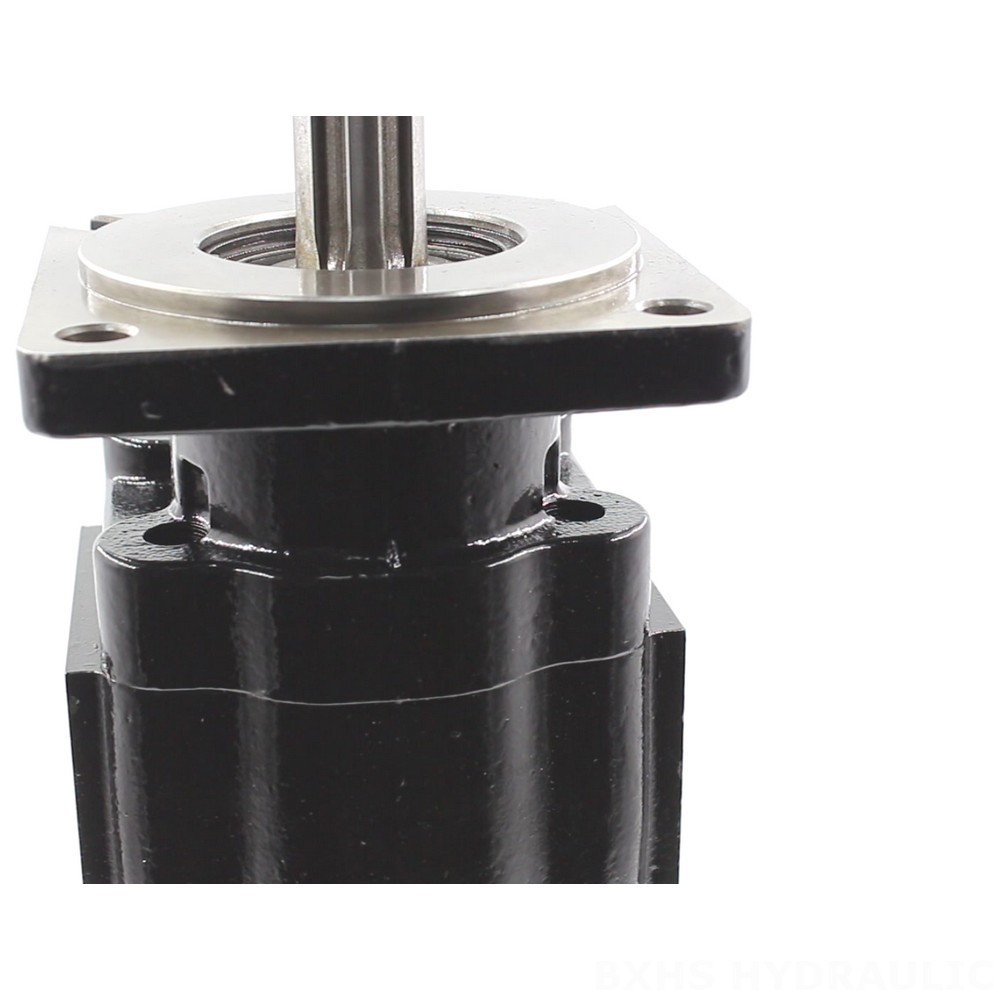

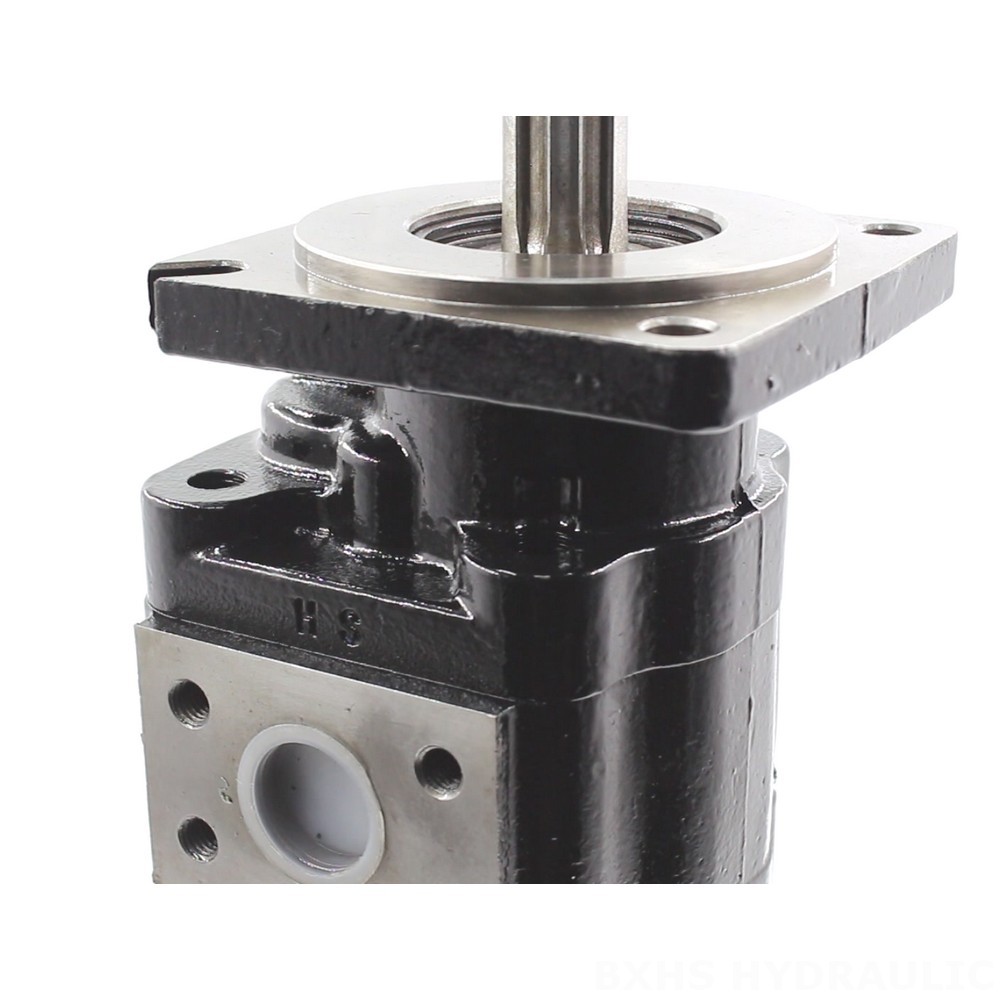

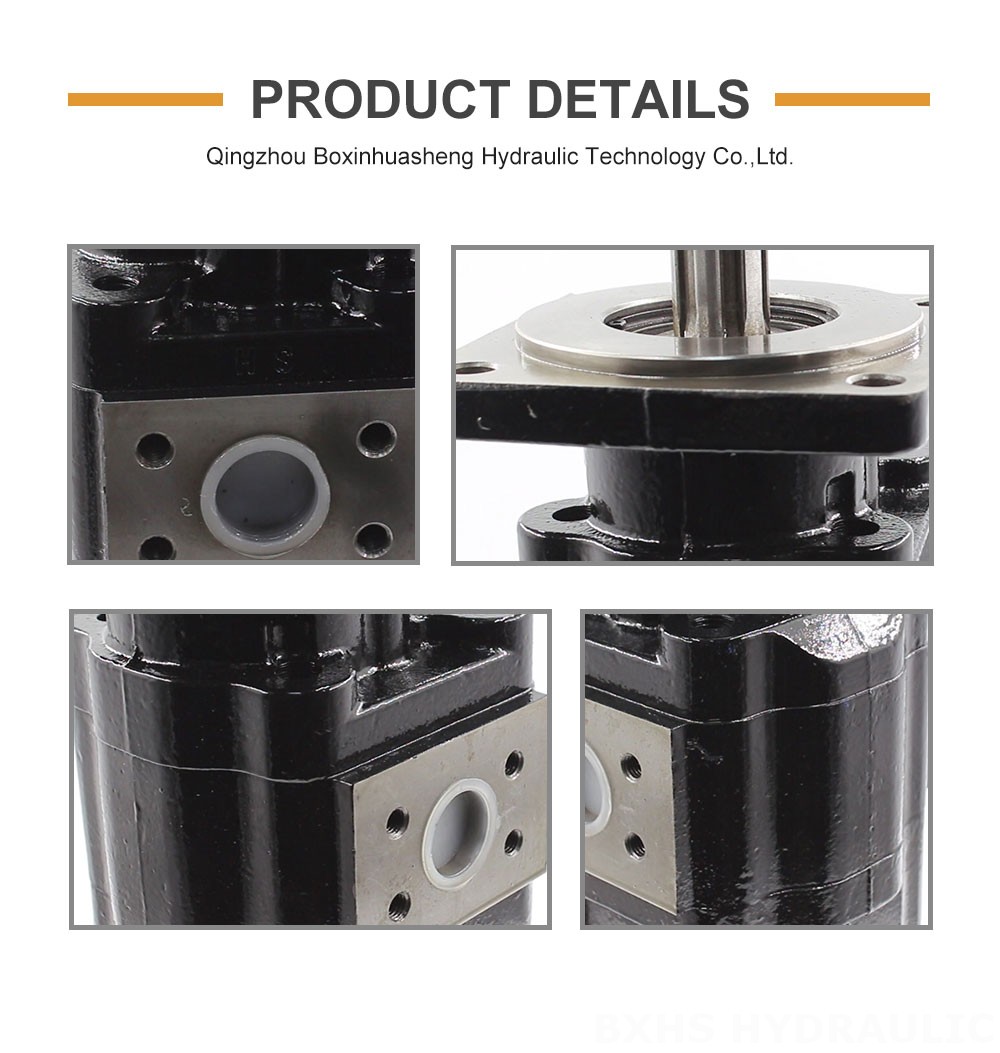

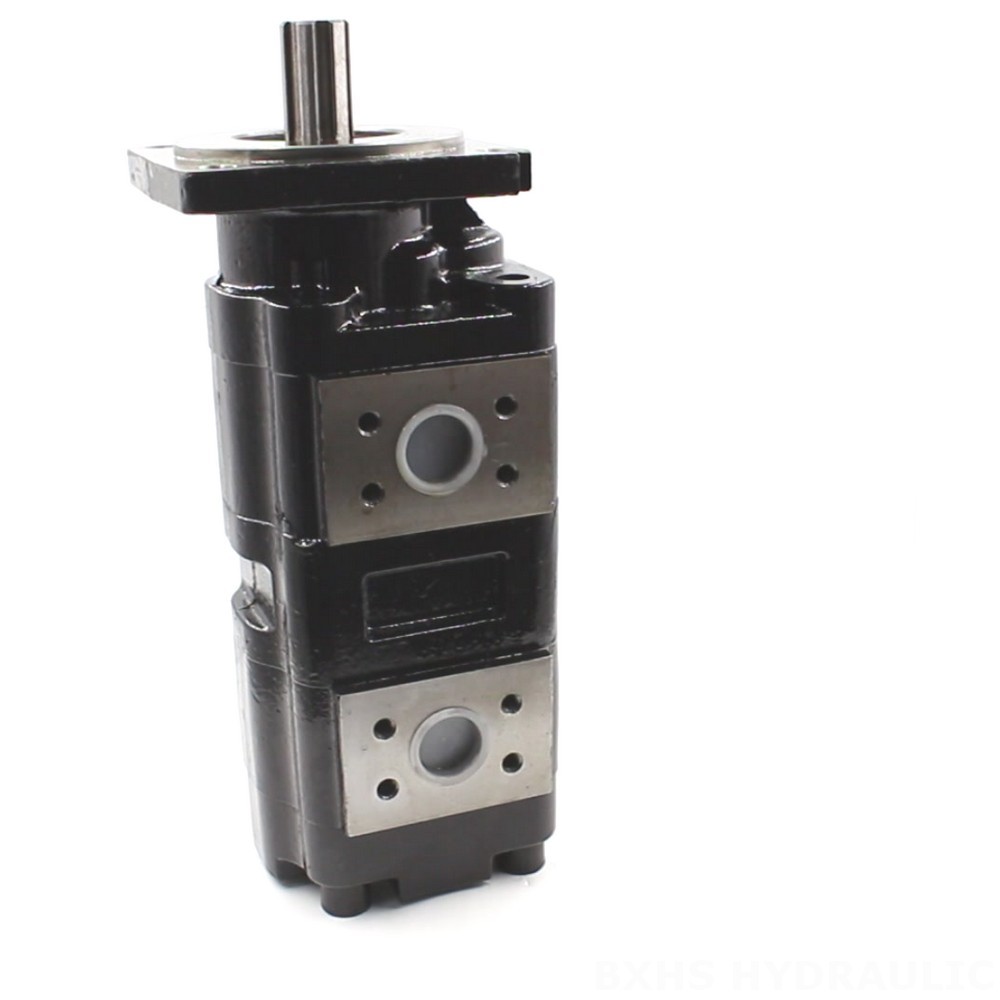

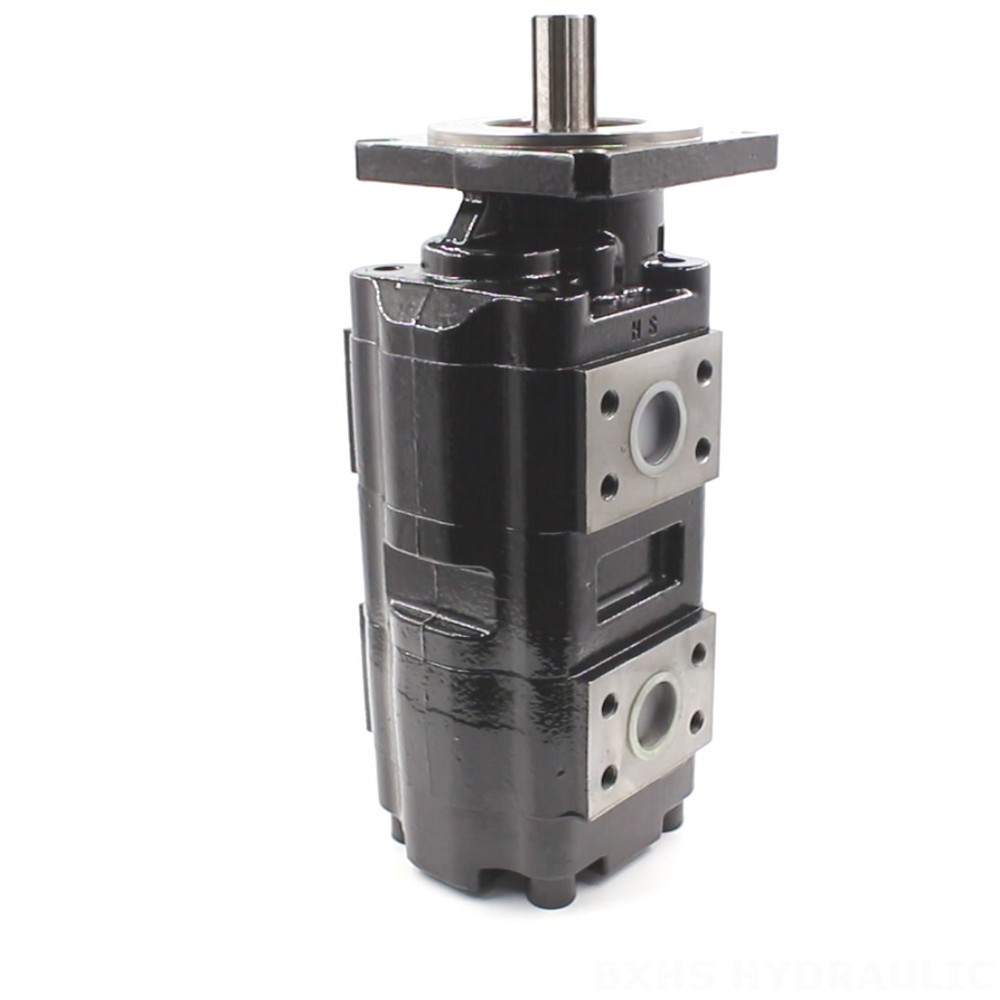

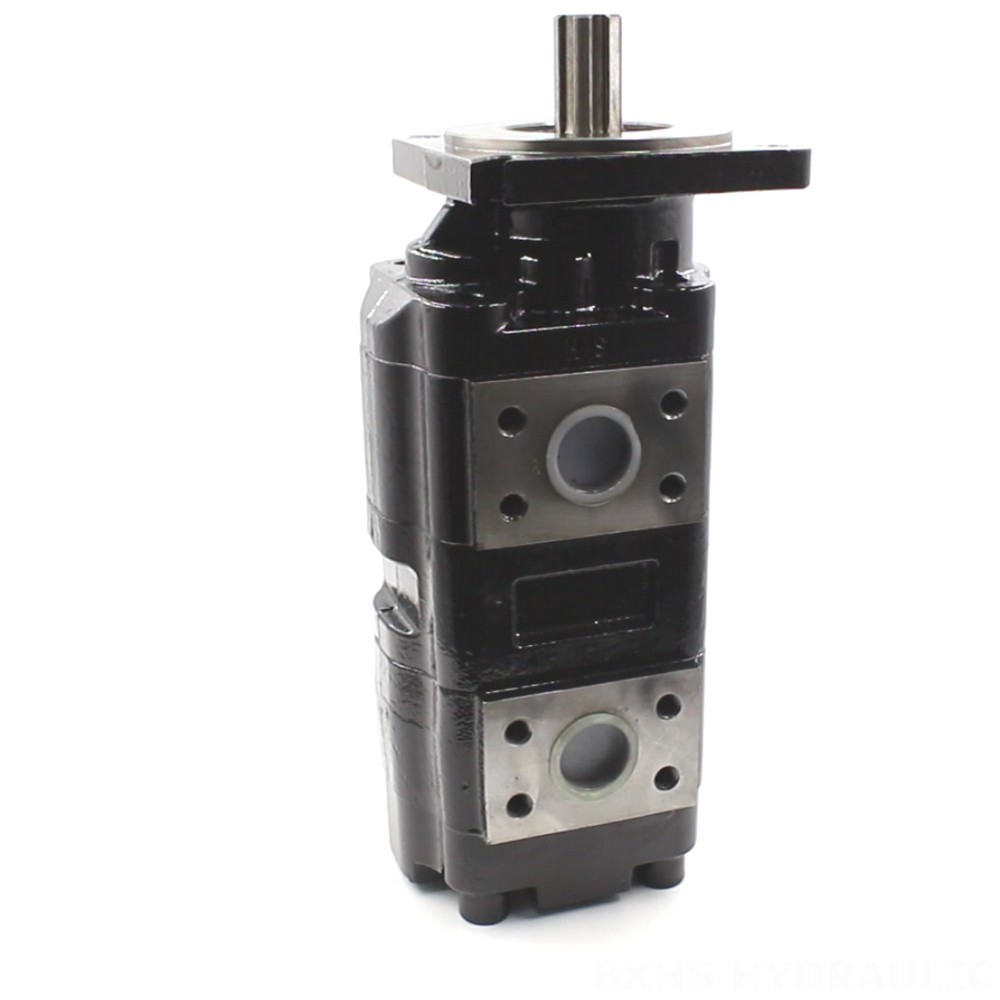

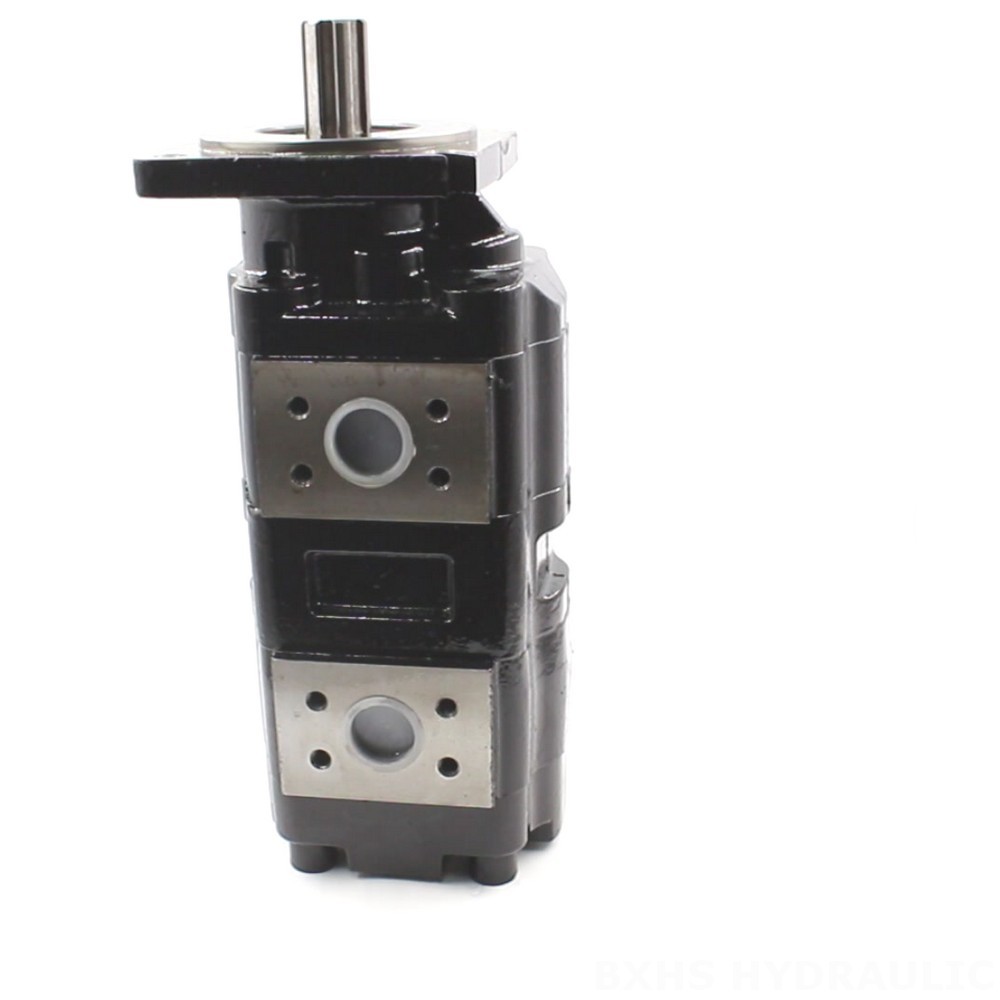

JHP2080-2080 80 cc/rev 16 MPa (2320 psi) Hydraulic Gear Pump detailed image

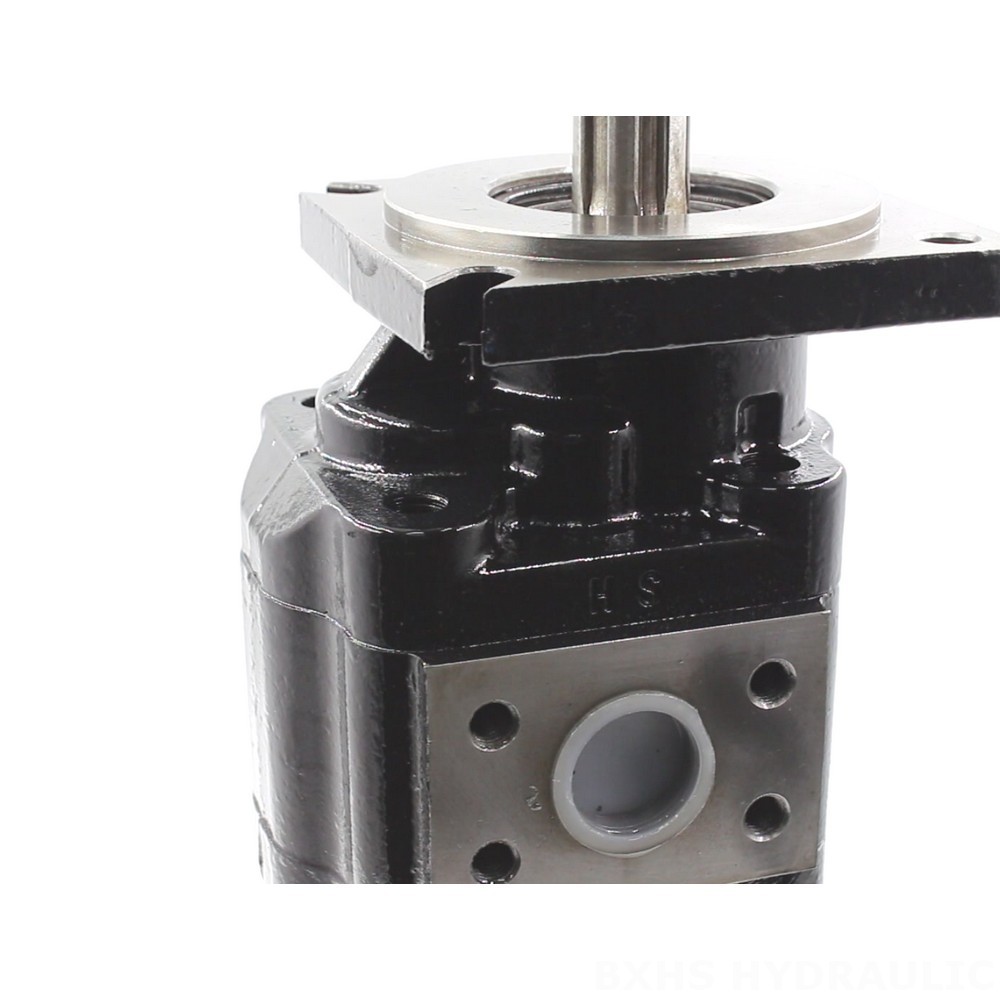

JHP2080-2080 80 cc/rev 16 MPa (2320 psi) Hydraulic Gear Pump detailed image

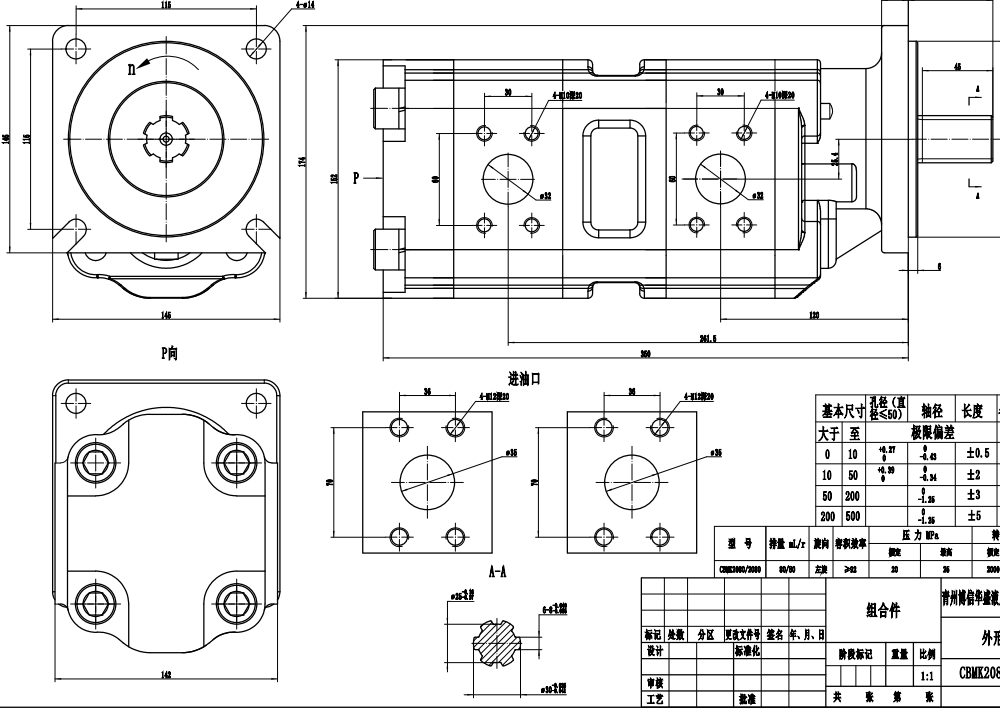

JHP2080-2080 80 cc/rev 16 MPa (2320 psi) Hydraulic Gear Pump drawing image

The JHP2080-2080 is a robust 80 cc/rev hydraulic gear pump, rated at 16 MPa (2320 psi) with a maximum pressure of 20 MPa (2900 psi). Made of cast iron with a B-Square flange and available with rectangle spline or plain key shaft, it's ideal for a wide range of applications in material handling, construction, agriculture, and industrial vehicles.

JHP Tandem Series Hydraulic Gear Pump Parameters
Displacement 10 cc/rev, 32 cc/rev, 40 cc/rev, 63 cc/rev, 80 cc/rev, 100 cc/rev, 125 cc/rev, 140 cc/rev, 160 cc/rev, 90 cc/rev, 16 cc/rev
Rated Pressure 16 MPa (2320 psi)
Max Pressure 20 MPa (2900 psi)
Rated Speed 2200 r/min
Max Speed 2500 r/min
Rotation L: Left (counter-clockwise), R: Right (clockwise)
Structure External Gear Pump
Material Cast Iron
Flange Version B-Square Flange
Shaft Type H: Rectangle Spline, P: Plain Key

The JHP2080-2080 hydraulic gear pump offers high performance and reliability for diverse applications. Its robust cast iron construction ensures durability and long service life, even under demanding operating conditions. The 80 cc/rev displacement provides ample flow for various hydraulic systems. The pump operates at a rated speed of 2000 r/min and has a maximum speed of 2200 r/min. The rated pressure of 16 MPa ensures reliable performance in many applications. The B-Square flange facilitates easy installation, while the choice of rectangle spline or plain key shaft offers flexibility in system integration. This versatile pump is suitable for a wide variety of equipment, including forklifts, skid steer loaders, compact wheel loaders, tractors, mini-excavators, midi-excavators, telehandlers, harvesters, balers, and sprayers. Its high-pressure capacity makes it suitable for heavier-duty equipment and applications. We offer manufacturing, OEM, private labeling, customization, and wholesale options, and are actively seeking distributors, wholesalers, agents, and trading companies worldwide.
