Manual 3 Spool Monoblock Directional Valve: OEM & ODM Services Available

Control Method:Manual

Spool:3 Spool

Rated Flow:60 L/min (15.8 US gpm)

Max Pressure:315 bar (4600 psi)

Inlet Port:G1/2

Outlet Port:G3/4

Port Size:G1/2

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:HSDS15 Series Monoblock Directional Valve

Packagingsize:23.5*22*11

Grossweight:12.00 kg

Availability: In Stock

688 Views are Looking for this Product

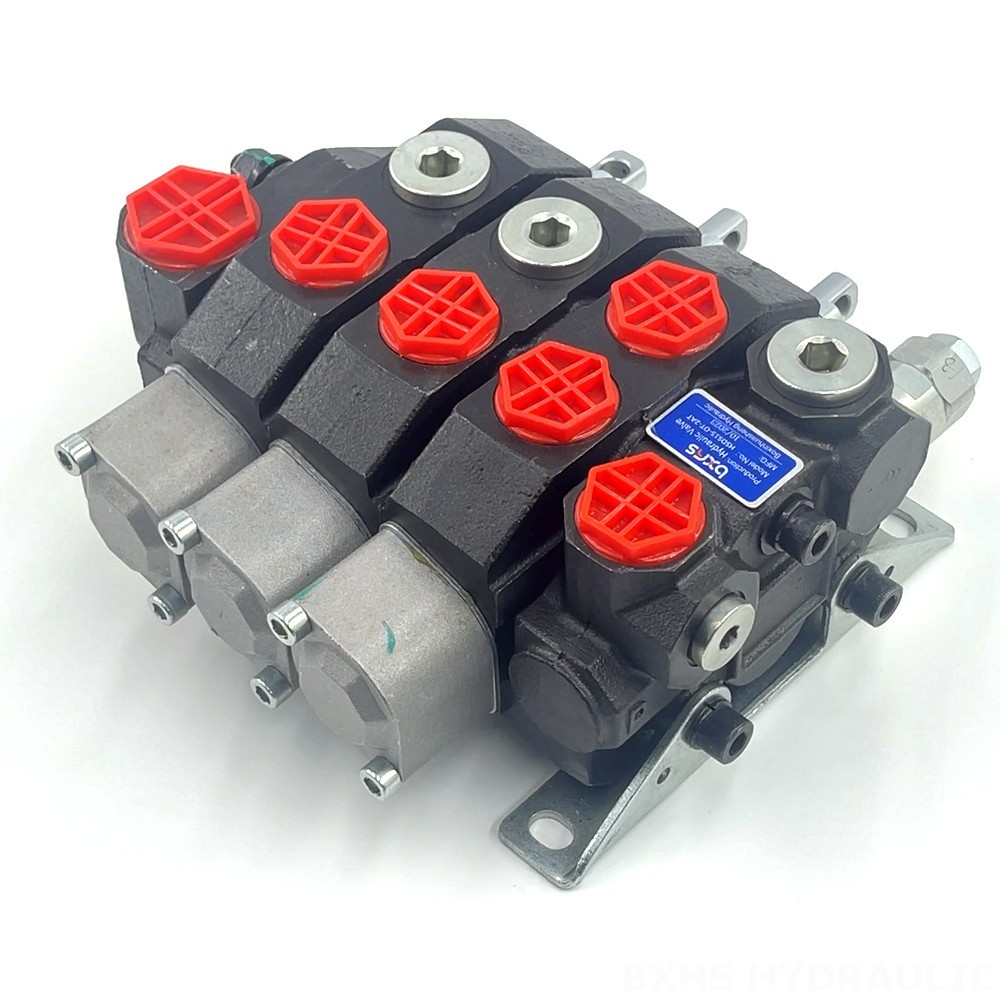

Manual 3 Spool Monoblock Directional Valve: OEM & ODM Services Available detailed image

Manual 3 Spool Monoblock Directional Valve: OEM & ODM Services Available detailed image

Manual 3 Spool Monoblock Directional Valve: OEM & ODM Services Available drawing image

This is a robust and reliable 3-spool manual directional valve designed for demanding applications in various industries, including construction, material handling, agriculture, and industrial vehicles. It offers a rated flow of 60 L/min and a maximum pressure of 315 bar, making it suitable for a wide range of equipment.

HSDS15 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool
Rated Flow 60 L/min (15.8 US gpm)
Max Pressure 250 bar (3600 psi)
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section, 11 Section, 12 Section
Structure Type Sectional valve
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

Our Manual 3 Spool Monoblock Directional Valve (HSDS15 Series) is a high-performance hydraulic valve ideal for various applications in construction, material handling, agriculture, and industrial vehicles. This sectional valve features a manual control method with 3 spools, a rated flow of 60 L/min, and a maximum pressure of 315 bar. It operates within a viscosity range of 15 - 75 mm²/s and withstands ambient temperatures from -40°C to +80°C. We offer comprehensive OEM and ODM services, allowing you to customize this valve to meet your specific requirements. Whether you need a standard valve or a bespoke solution, we can provide the perfect fit for your application. Contact us to explore our flexible manufacturing, private labeling, and customization options.
