Modular Solenoid Valve System: DCV58 Valve for Complex Hydraulic Applications

Control Method:Solenoid

Spool:3 Spool

Rated Flow:60 L/min (15.8 US gpm)

Max Pressure:350 bar (5100 psi)

Inlet Port:G3/4

Outlet Port:G3/4

Port Size:G3/4

Vendor:BXHS

Product Type:Sectional Directional Valve

Product Series:DCV58 Series Sectional Directional Valve

Packagingsize:26*27*11

Grossweight:14.50 kg

Availability: In Stock

594 Views are Looking for this Product

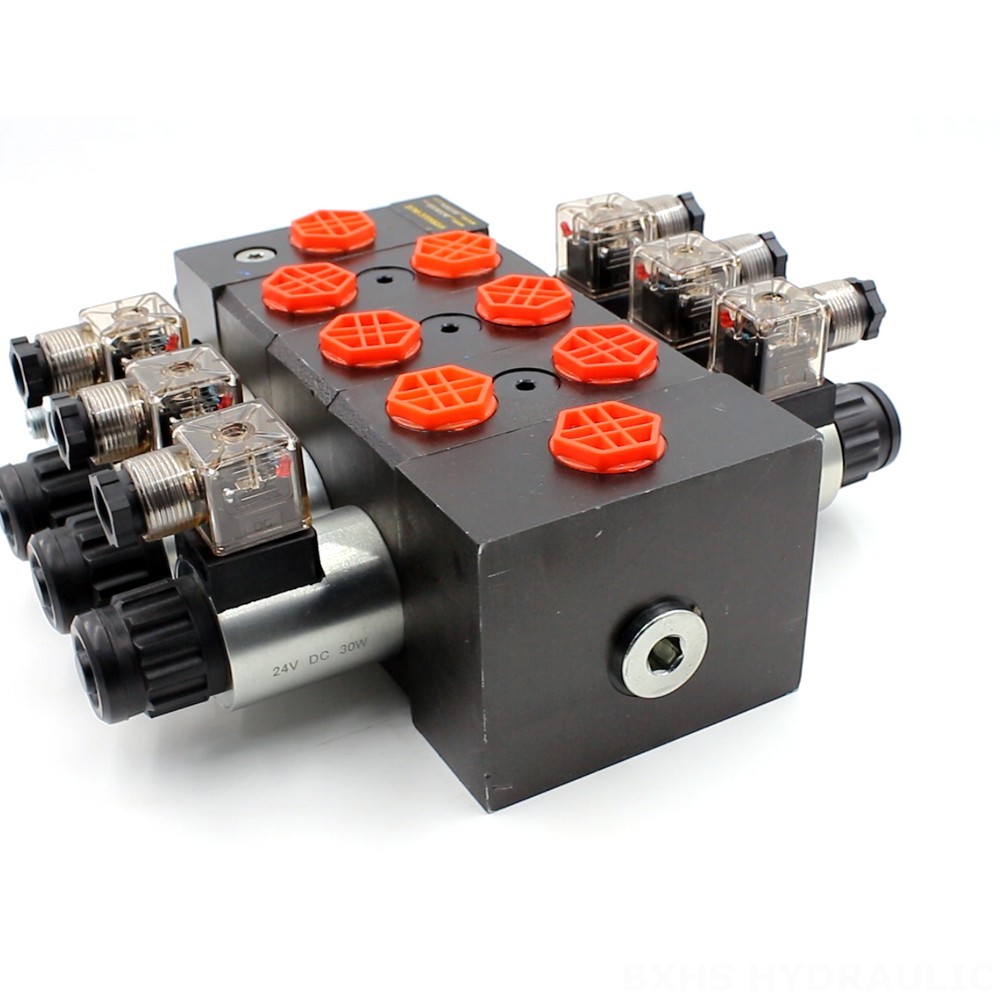

Modular Solenoid Valve System: DCV58 Valve for Complex Hydraulic Applications detailed image

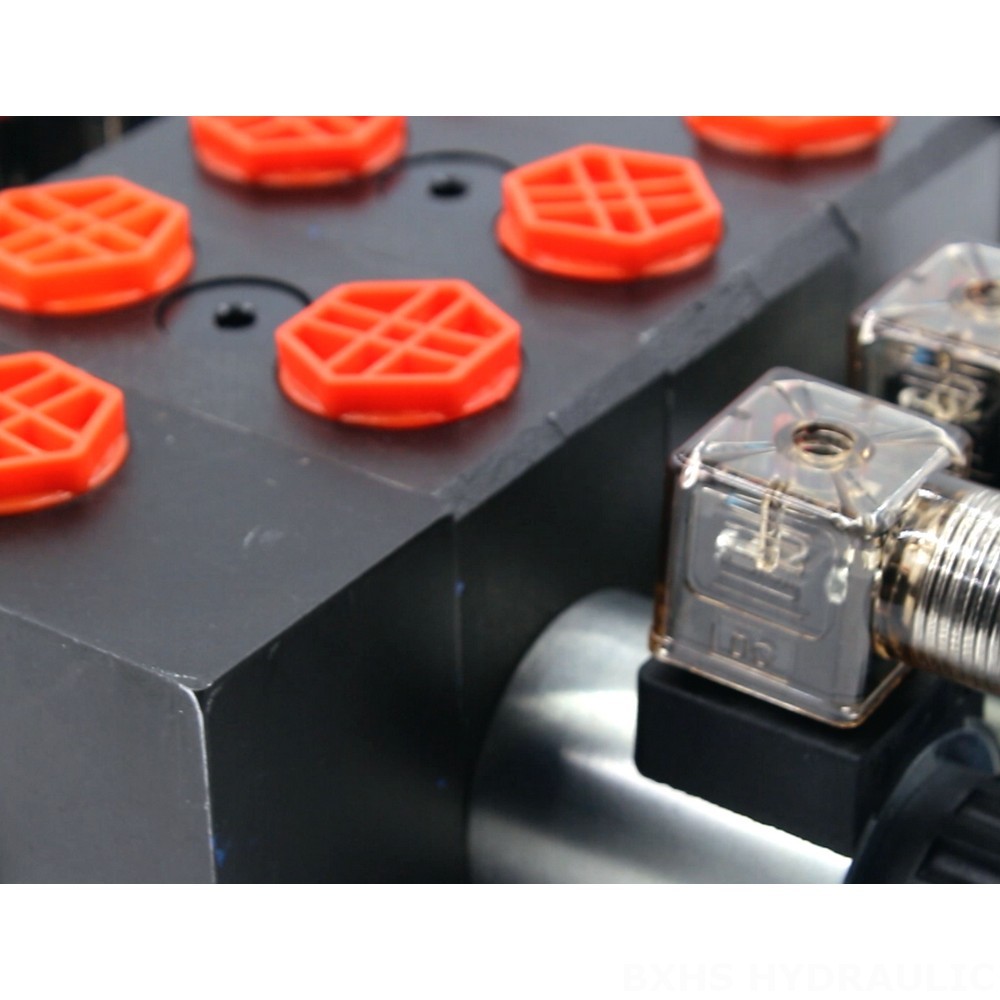

Modular Solenoid Valve System: DCV58 Valve for Complex Hydraulic Applications detailed image

Modular Solenoid Valve System: DCV58 Valve for Complex Hydraulic Applications drawing image

The Modular Solenoid Valve System with DCV58 Valve is designed for complex hydraulic applications. With solenoid control, it features a 3-section sectional valve structure, a rated flow of 60 L/min, and a maximum pressure of 350 bar.

DCV58 Series Sectional Directional Valve Parameters
Control Method Solenoid, Solenoid And Manual
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool, 11 Spool, 12 Spool
Rated Flow 60 L/min (15.8 US gpm)
Max Pressure 350 bar (5100 psi)
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section, 8 Section, 9 Section, 10 Section, 11 Section, 12 Section
Structure Type Sectional valve
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

**DCV58 Modular Solenoid Valve System**

**Control Method:** Solenoid
**Section:** 3 Section
**Structure Type:** Sectional valve
**Rated Flow:** 60 L/min (15.8 US gpm)
**Max Pressure:** 350 bar (5100 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 3 Spool
**Series:** DCV58 Series
**Application Area:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, TELEHANDLER, MIDI-EXCAVATOR, MINI-EXCAVATOR, SKID STEER LOADER
