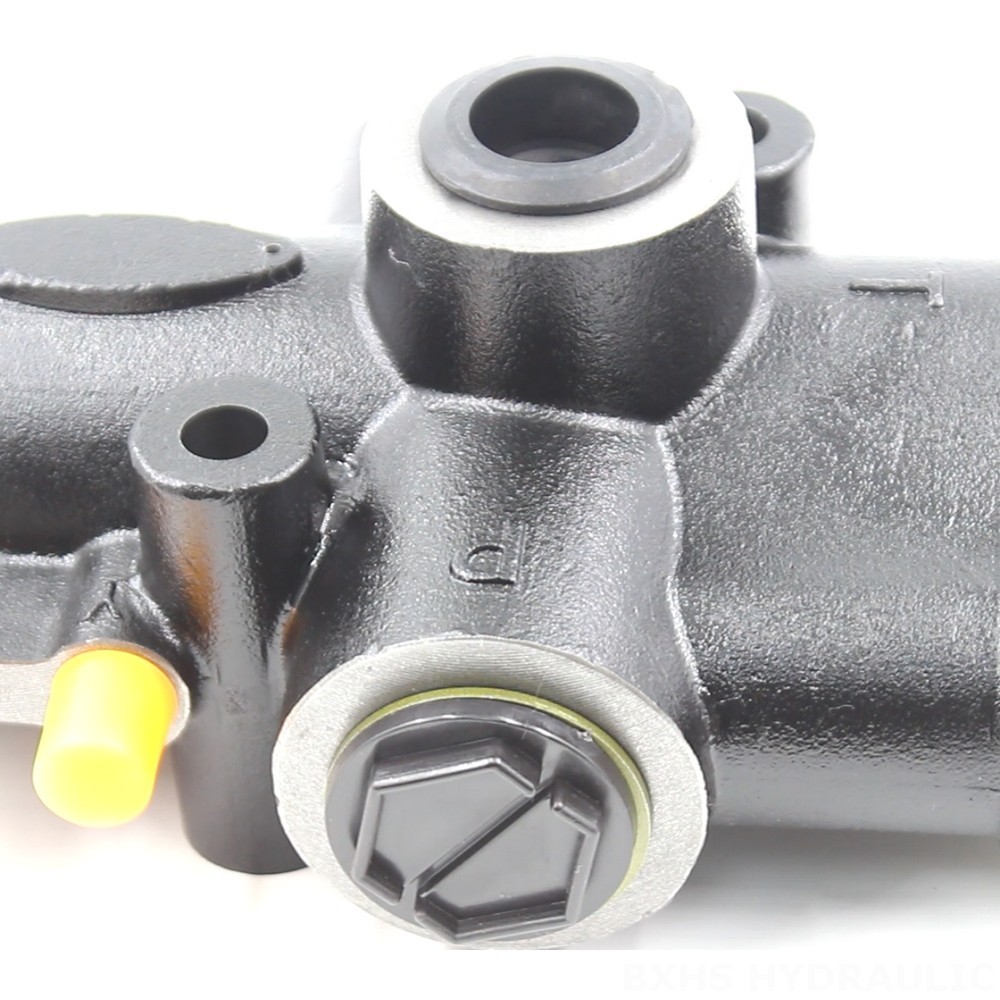

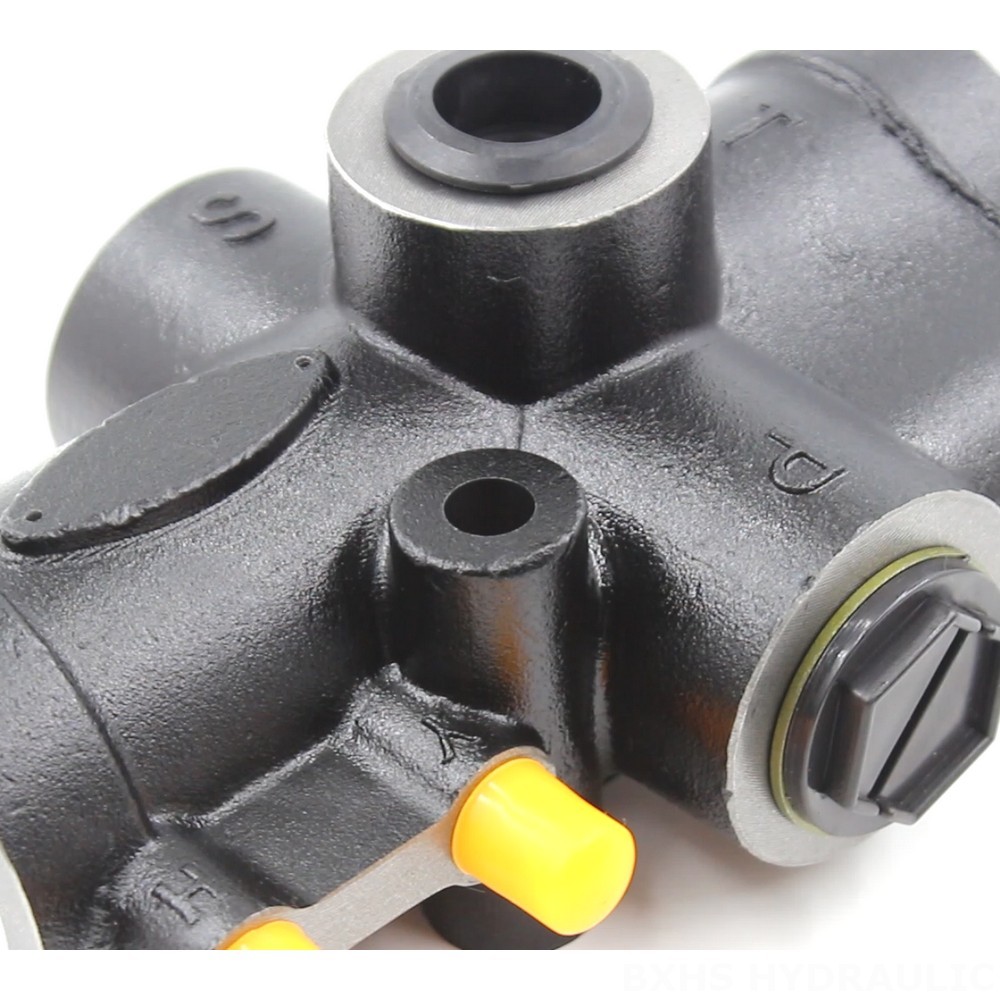

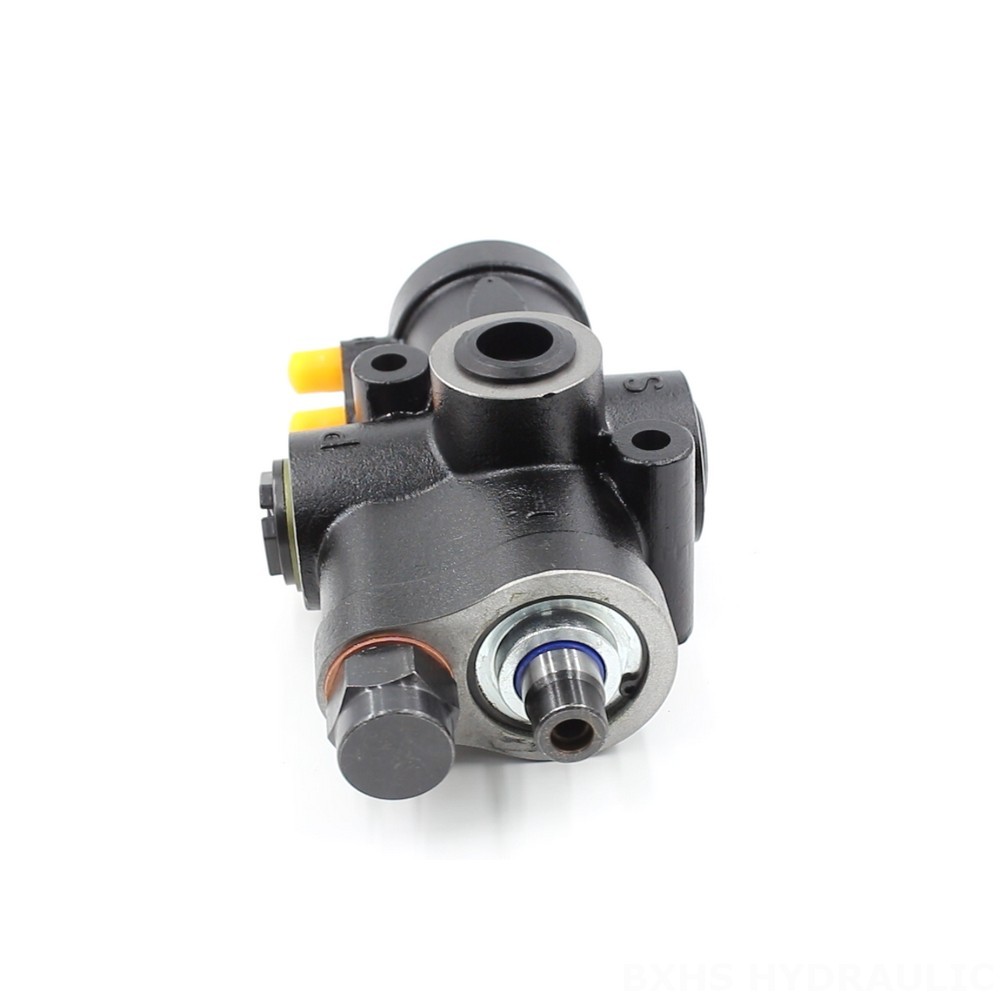

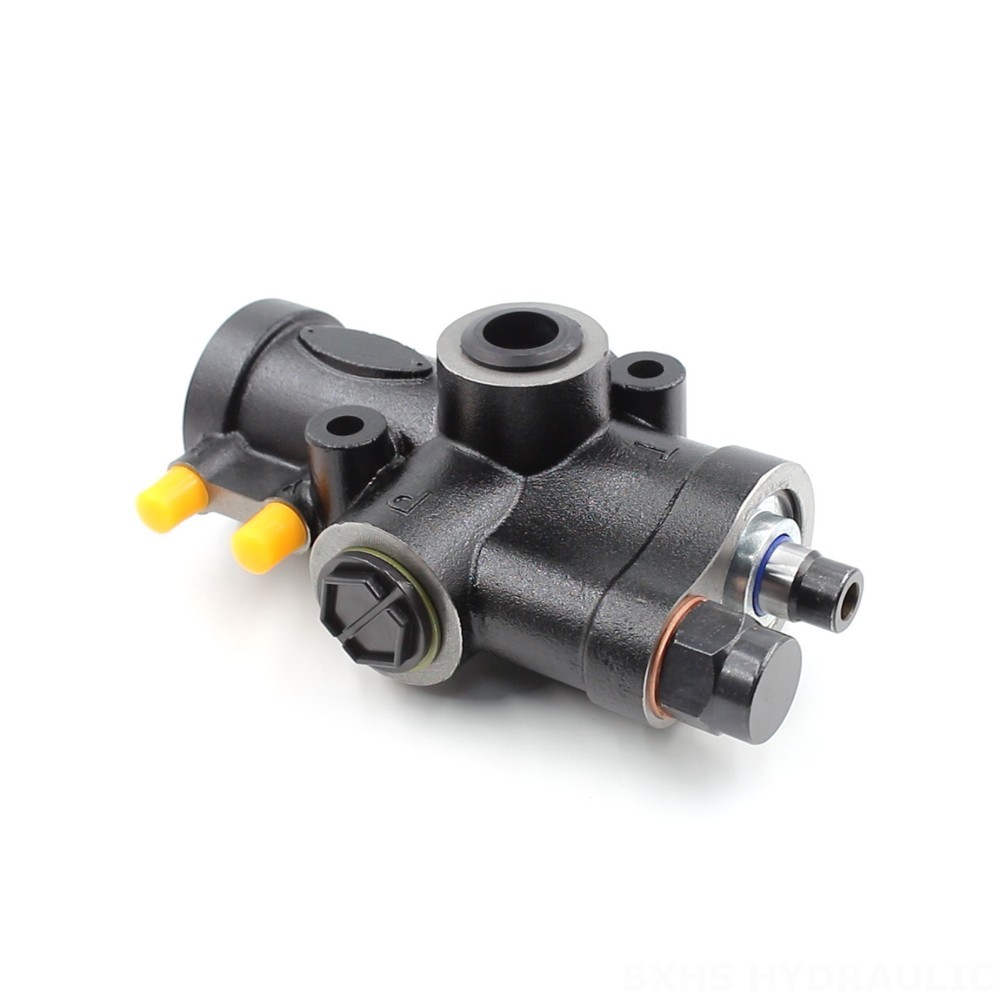

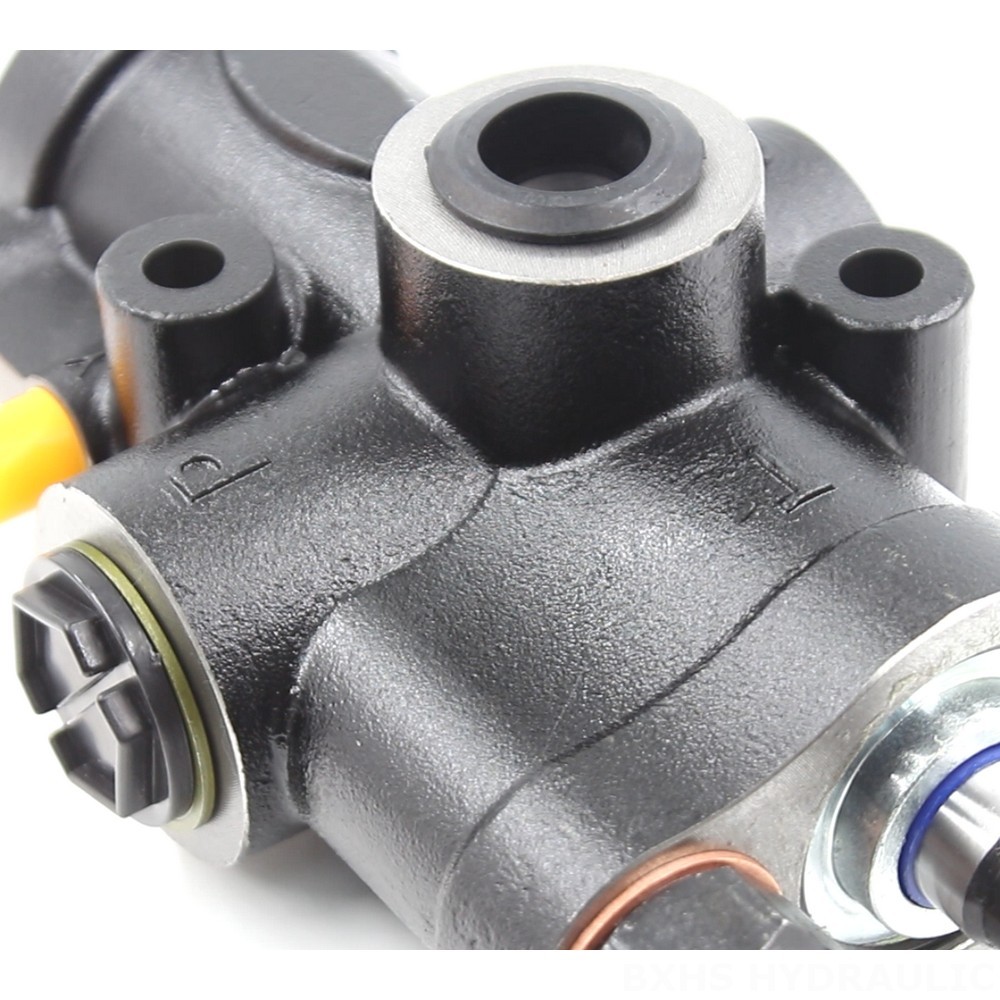

This multi-way directional valve with a single spool is a robust and reliable hydraulic control solution for a wide range of construction and industrial applications. It is designed for high-flow operations and features pneumatic control for precise operation.
| Section | 1 Section |
|---|---|
| Structure Type | Monoblock valve |
| Rated Flow | 150 L/min (39.6 US gpm) |
| Max Pressure | 210 bar (3045 psi) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
This QFCK-F20L series multi-way directional valve is a single-spool, monoblock valve designed for heavy-duty applications in the construction, agriculture, and industrial vehicle sectors. With a rated flow of 140 L/min and a maximum pressure of 210 bar, this valve is ideal for powering telehandlers, forklifts, excavators, skid steer loaders, wheel loaders, backhoe loaders, dumpers, tractors, and harvesters. It offers pneumatic control for precise actuation and operates effectively in a wide range of ambient temperatures, making it a versatile choice for demanding environments.
