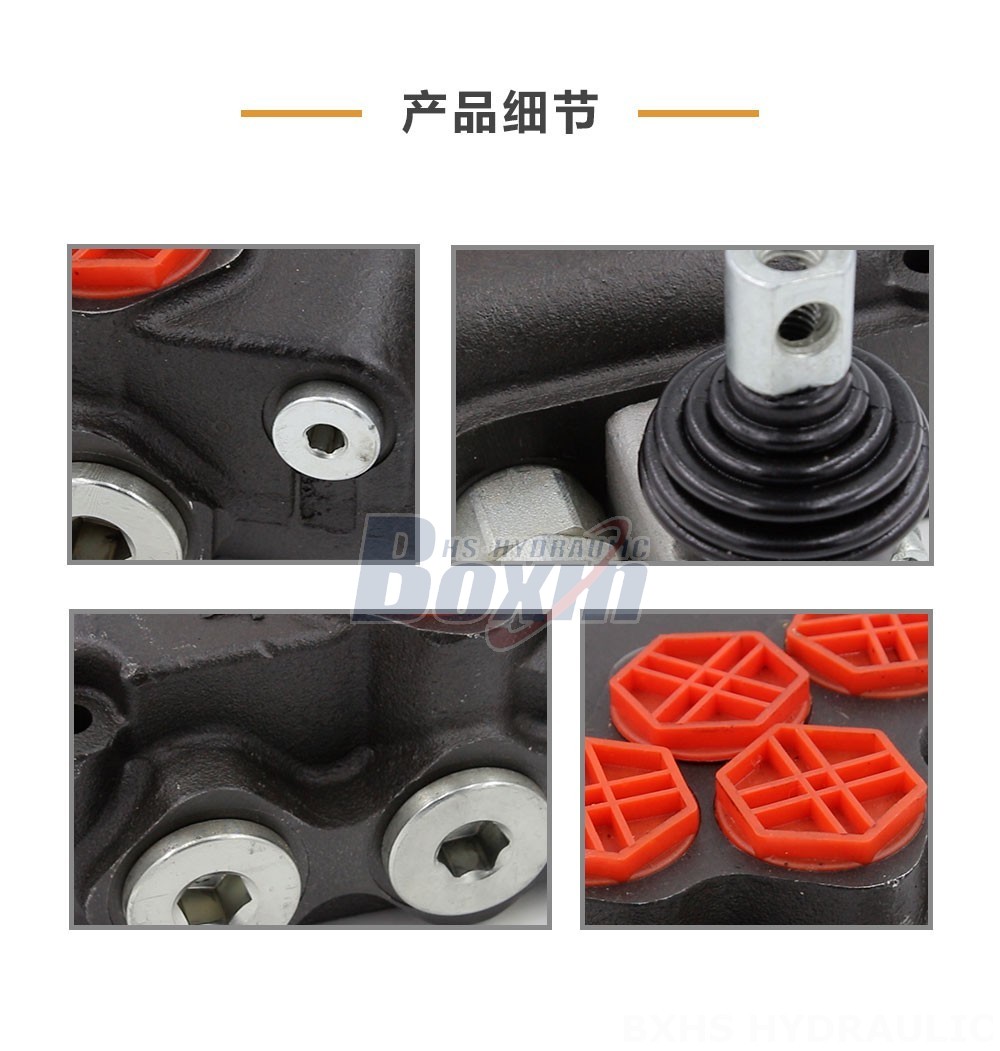

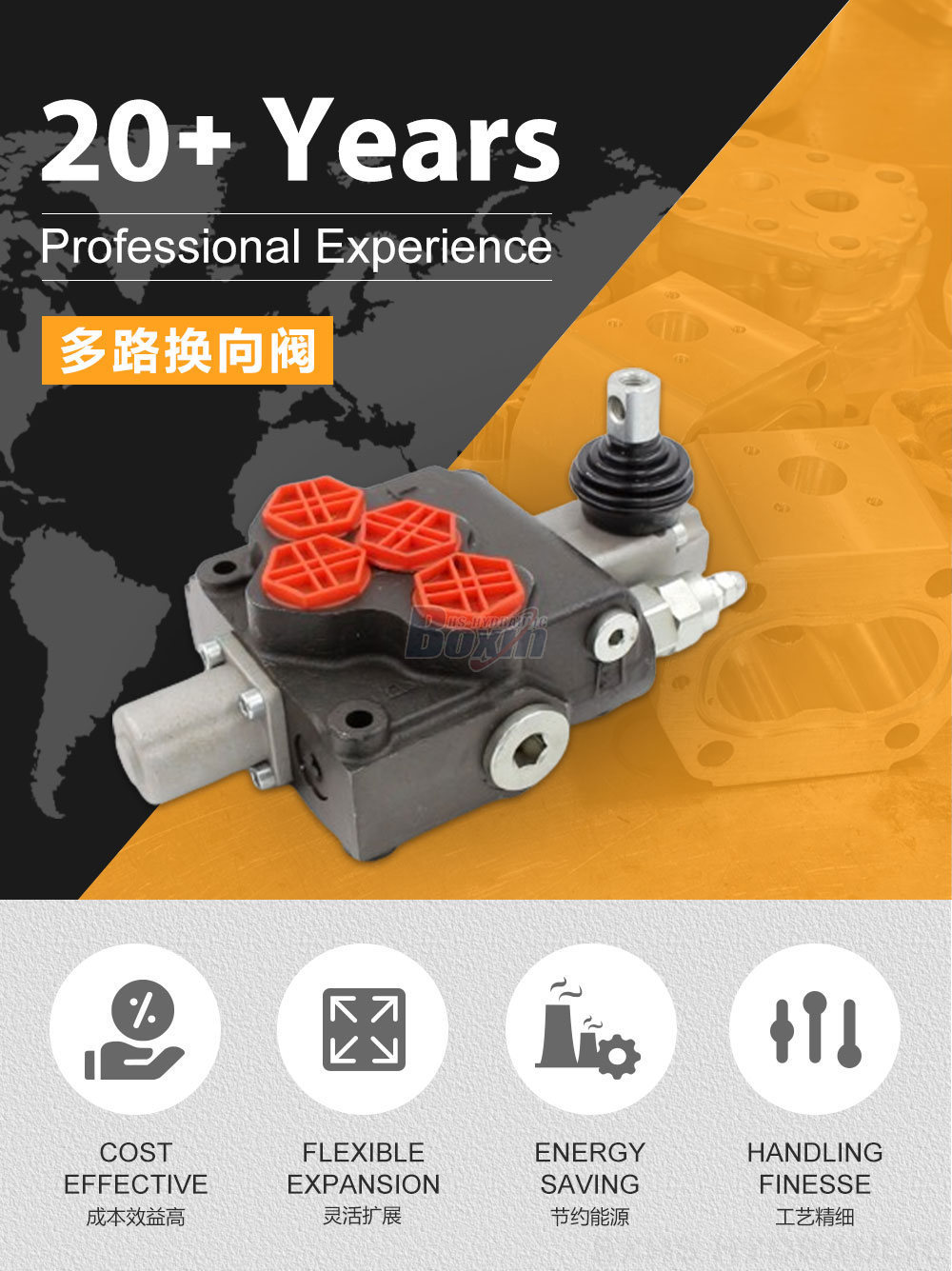

The P120-G1 Manual 1 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications in various industries. With a rated flow of 120 L/min and a maximum pressure of 250 bar, this valve offers exceptional flow control and pressure handling capabilities.
| P120 Series Monoblock Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Cable, Joystick, Manual and Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool |
| Rated Flow | 120 L/min (31.7 US gpm) |
| Max Pressure | 250 bar (3600 psi) |
| Inlet Port | G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2 |
| Outlet Port | G1, SAE 16, 1 NPT, M36×2 |
| Port Size | G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2 |
| Section | 1 Section, 2 Section, 3 Section, 4 Section |
| Structure Type | Monoblock valve |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
Manual control for precise and responsive operation
,Monoblock construction for compact size and durability
, High flow capacity of 120 L/min for efficient fluid transfer
,Maximum pressure rating of 250 bar for handling high,pressure systems
, Wide viscosity range (15 - 75 mm²/s) for compatibility with various hydraulic fluids, Operating temperature range of -40°C to +80°C for use in harsh environments, Single spool design for simple and effective directional control
.
Applications:Mobile hydraulic systems
, Industrial machinery
, Material handling equipment, Construction equipment
, Agricultural machinery
, Forestry equipment.
Please feel free to contact us ,we can also make OEM/ODM orders for you.
