P120-G1-OT 1-Spool Hydraulic Directional Valve | Factory Direct & Customizable

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P120 Series Monoblock Directional Valve

Productsize:16*32.4*13.2

Netweight:13.01 kg

Availability: In Stock

Description

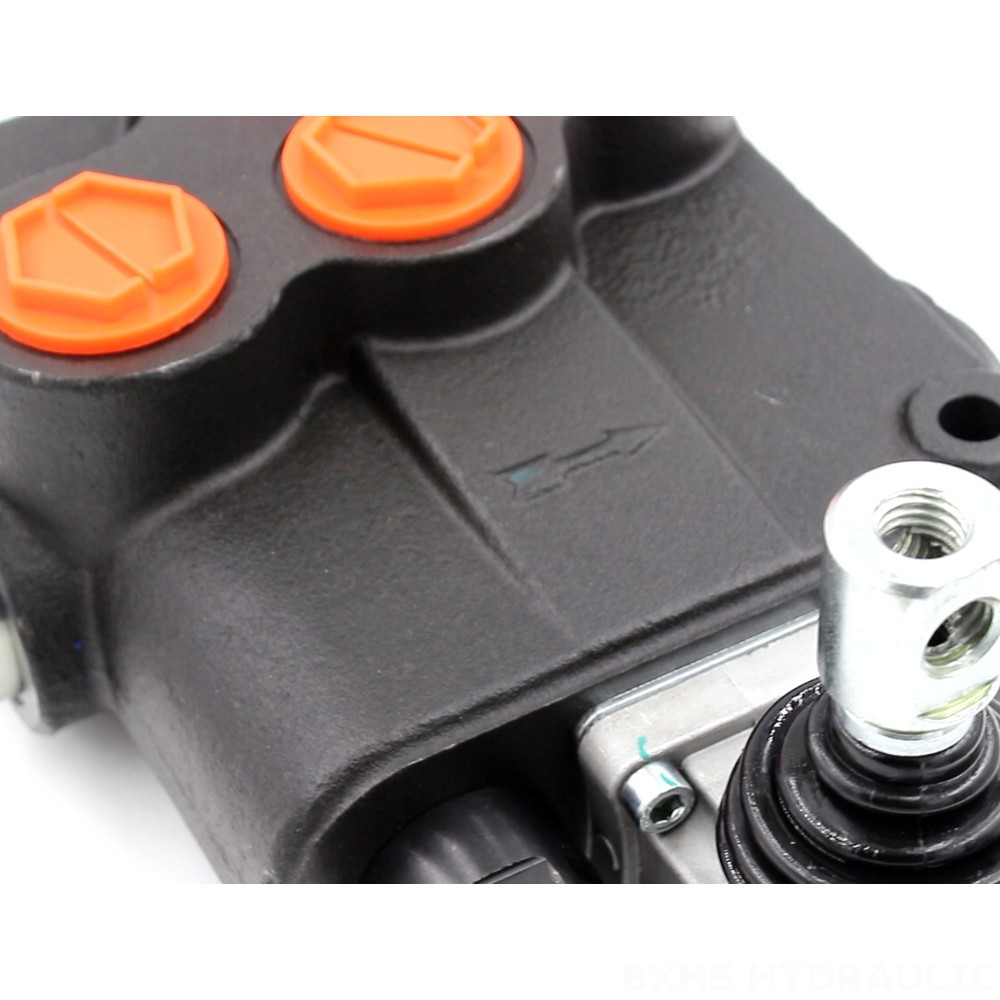

P120-G1-OT 1-Spool Hydraulic Directional Valve | Factory Direct & Customizable detailed image

P120-G1-OT 1-Spool Hydraulic Directional Valve | Factory Direct & Customizable drawing image

The P120-G1-OT 1-Spool Hydraulic Directional Valve is a high-performance valve designed for use in a wide range of applications, including construction, material handling, agriculture, and industrial vehicles. With a rated flow of 120 L/min and a maximum pressure of 250 bar, this valve provides precise and reliable control of hydraulic systems.

Section	1 Section,2 Section,3 Section,4 Section
Structure Type	Monoblock valve
Rated Flow	120 L/min (31.7 US gpm)
Max Pressure	250 bar (3600 psi)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)

**Product Name:** P120-G1-OT 1-Spool Hydraulic Directional Valve

**Control Method:** Manual

**Section:** 1 Section

**Structure Type:** Monoblock valve

**Rated Flow:** 120 L/min (31.7 US gpm)

**Max Pressure:** 250 bar (3600 psi)

**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)

**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)

**Spool:** 1 Spool

**Series:** P120 Series

**Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES

**Applicable Model:** TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,MINI-EXCAVATOR,SKID STEER LOADER,WHEEL LOADER,HARVESTER,BALE WRAPPER,SEEDING MACHINE
