P120-G1-OT Manual 3 Spool Monoblock Directional Valve

Rated Flow:120 L/min (31.7 US gpm)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P120 Series Monoblock Directional Valve

Productsize:34*34*15.5

Netweight:23.60 kg

Availability: In Stock

Description

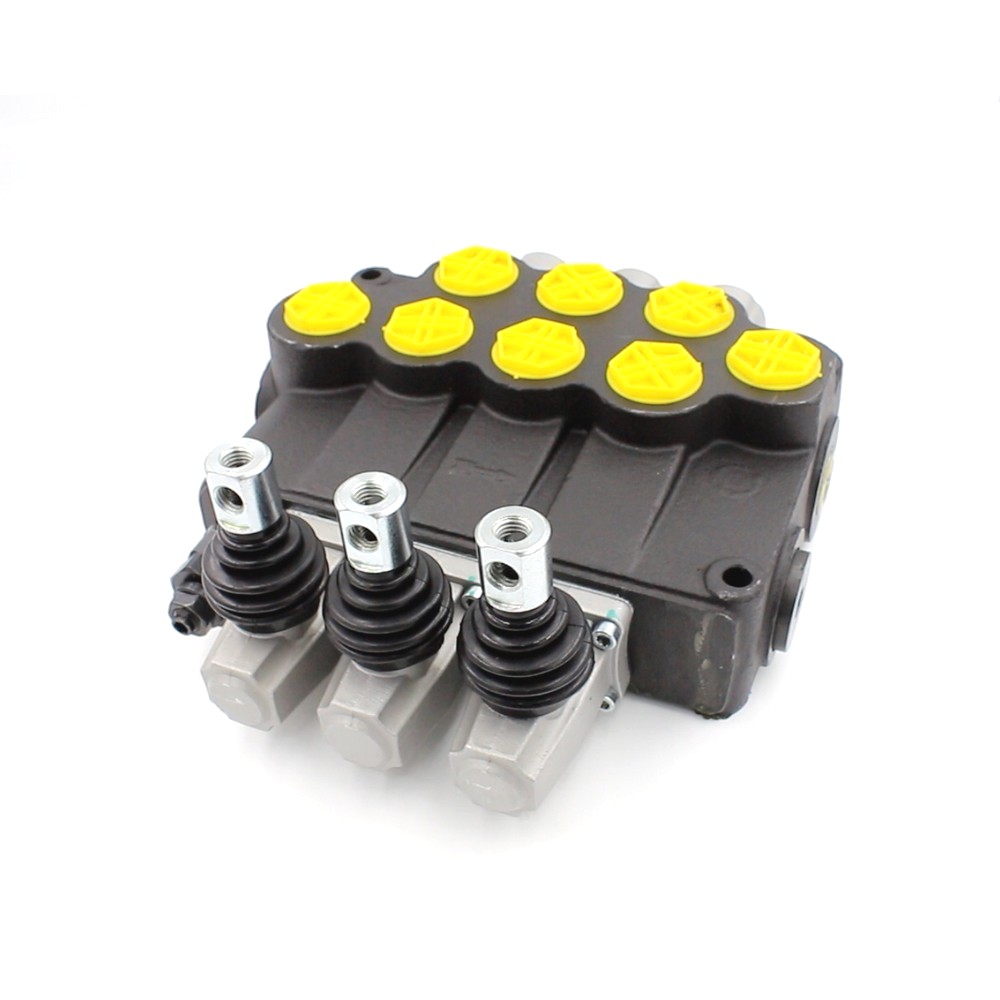

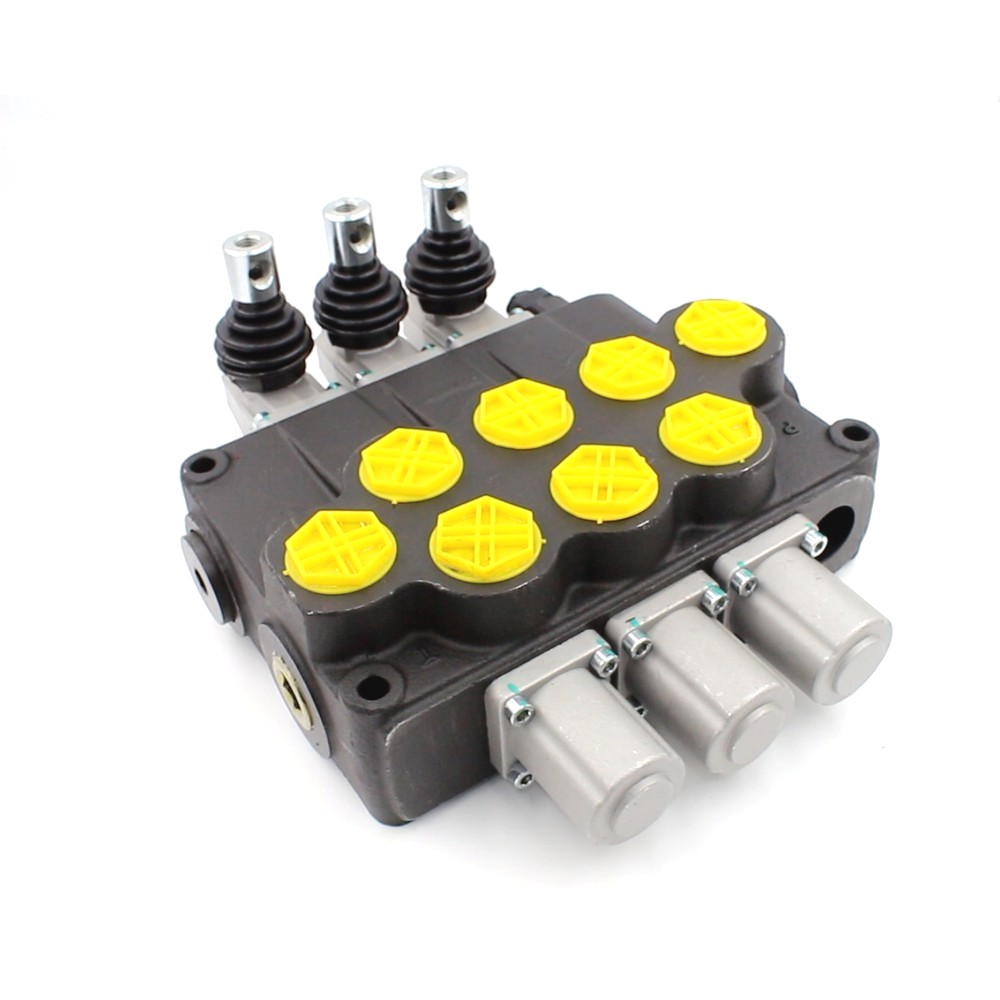

P120-G1-OT Manual 3 Spool Monoblock Directional Valve detailed image

P120-G1-OT Manual 3 Spool Monoblock Directional Valve drawing image

The P120-G1-OT Manual 3 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of applications. It features a rated flow of 120 L/min, a maximum pressure of 250 bar, and an operating viscosity range of 15 - 75 mm²/s. The valve is constructed from high-quality materials and is built to withstand the rigors of demanding applications.

Section	1 Section,2 Section,3 Section,4 Section
Structure Type	Monoblock valve
Control Method	Manual
Rated Flow	120 L/min (31.7 US gpm)
Max Pressure	250 bar (3600 psi)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)

Manual control for precise and responsive operation ,with 3 spools /levers Monoblock construction for compact size and durability , High flow capacity of 120 L/min for efficient fluid transfer ,Maximum pressure rating of 250 bar for handling high,pressure systems , Wide viscosity range (15 - 75 mm²/s) for compatibility with various hydraulic fluids, Operating temperature range of -40°C to +80°C for use in harsh environments, Single spool design for simple and effective directional control .

Applications:Mobile hydraulic systems , Industrial machinery , Material handling equipment, Construction equipment , Agricultural machinery , Forestry equipment.

if you need more details or OEM/ODM services ,please feel free to contact us .

P120-G1-OT Manual 3 Spool Monoblock Directional Valve application image
