P40-DKL Manual 2 Spool Monoblock Directional Valve

Rated Flow:40 L/min (10.5 US gpm)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:22*17*12

Netweight:4.30 kg

Availability: In Stock

Description

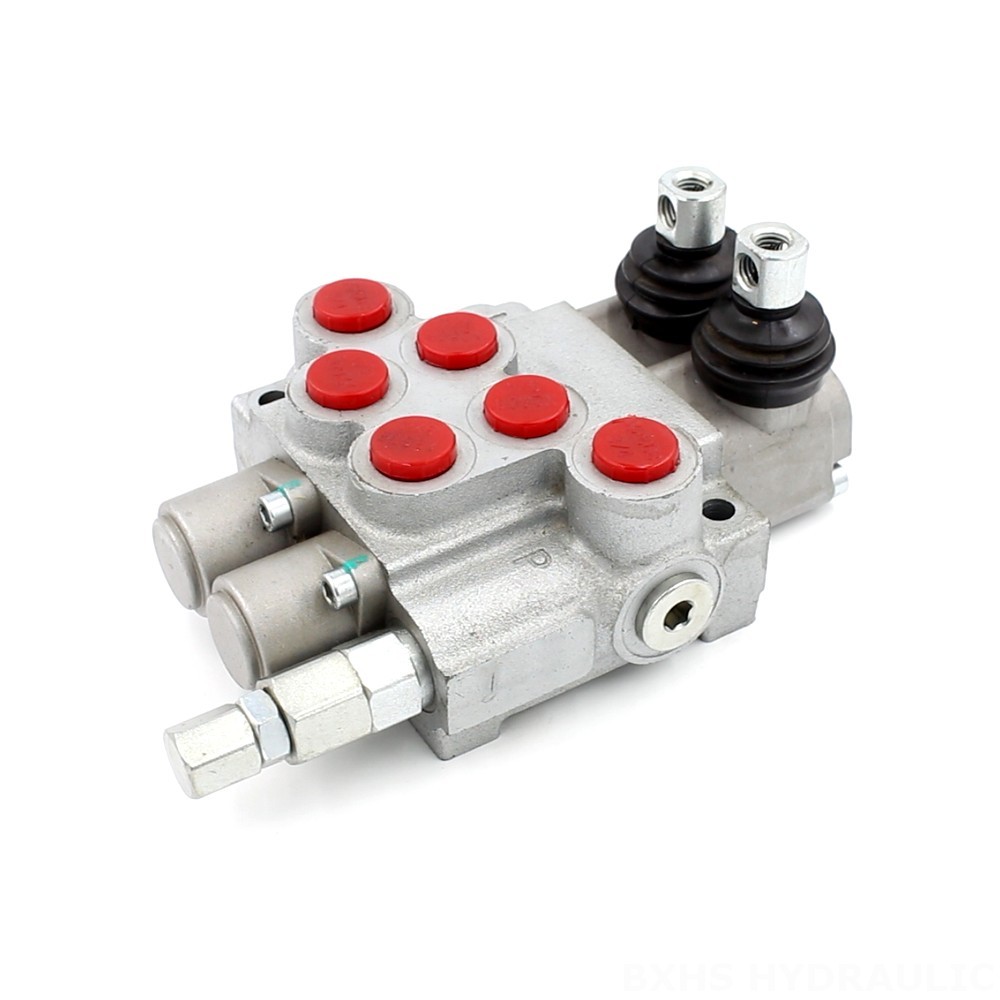

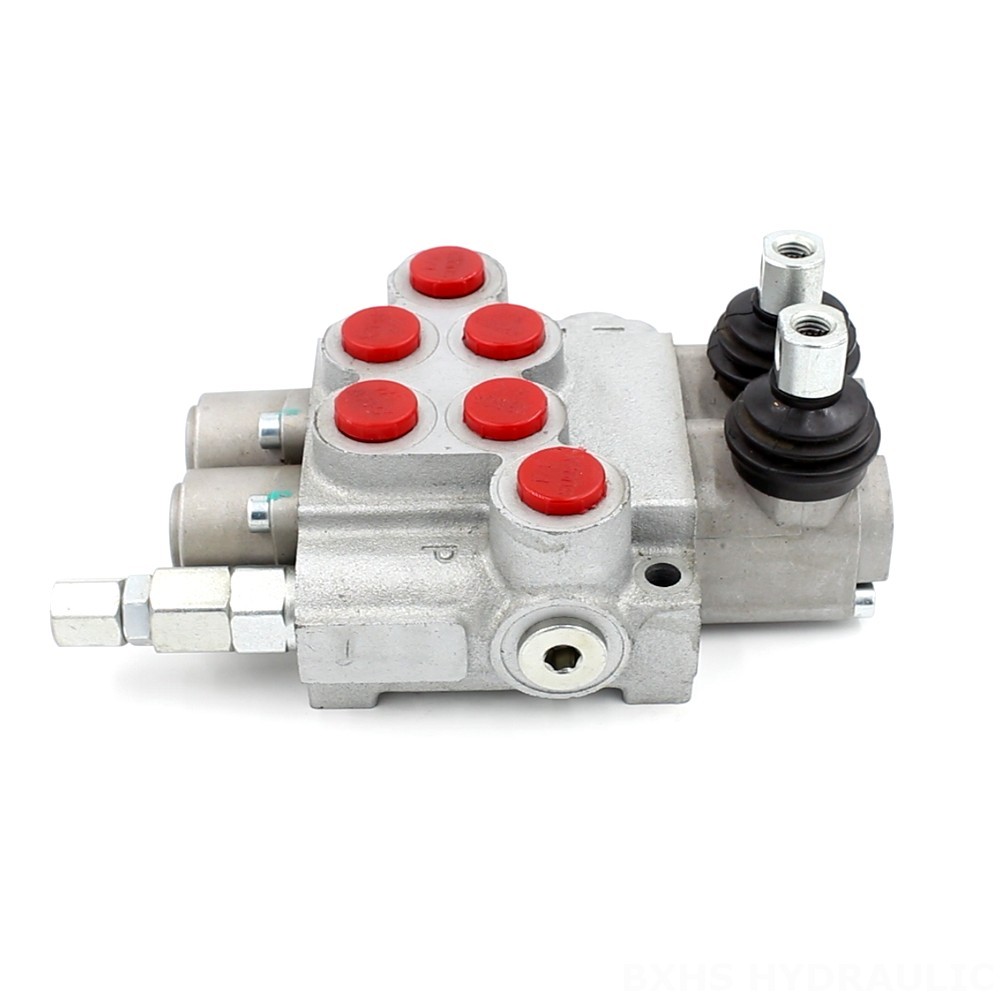

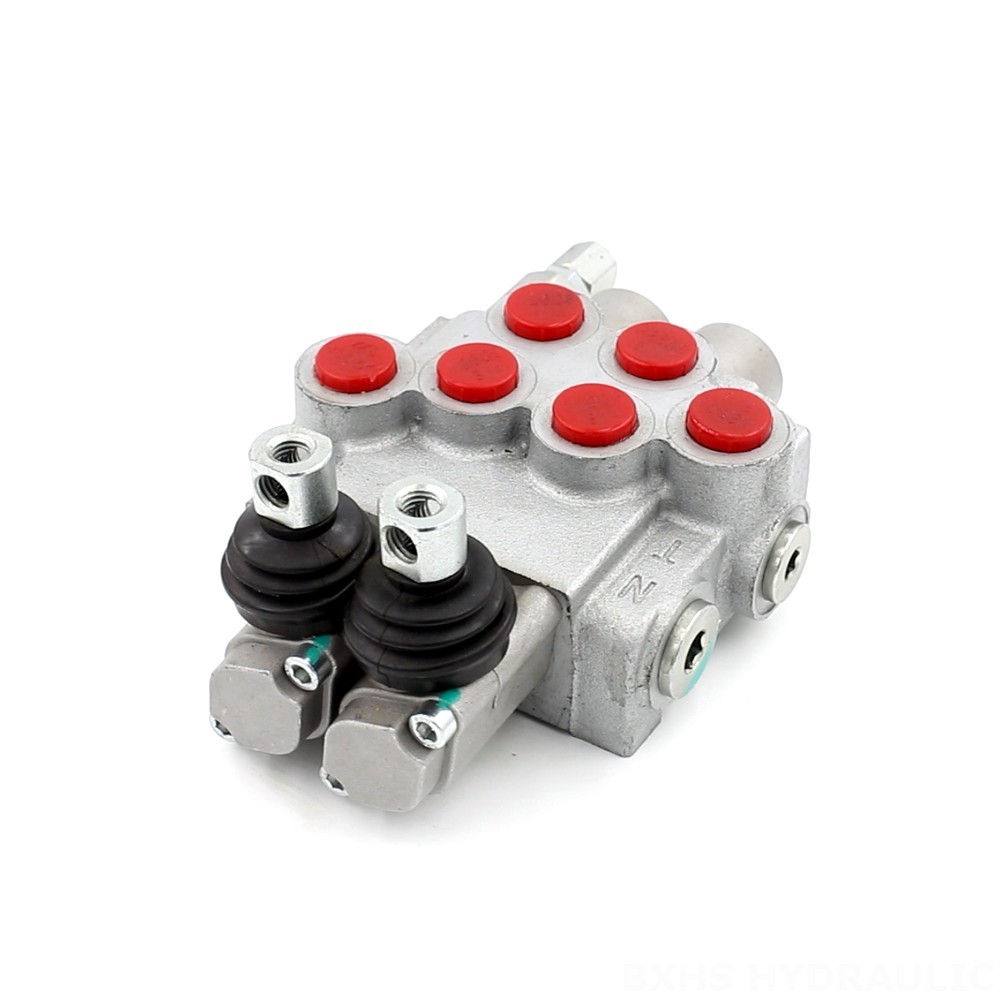

P40-DKL Manual 2 Spool Monoblock Directional Valve detailed image

P40-DKL Manual 2 Spool Monoblock Directional Valve drawing image

The P40-DKL Manual 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for a wide range of applications requiring precise and reliable directional control. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve offers exceptional flow capacity and durability.

Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure	250 bar (3600 psi)
Rated Flow	40 L/min (10.5 US gpm)
Structure Type	Monoblock valve
Control Method	Manual
Section	1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section

**Product Features and Benefits:**

* Manual control for precise and responsive operation
* Monoblock construction for increased strength and durability
* 2 spool design for independent control of multiple hydraulic circuits
* Compact design for easy installation in space-constrained applications

**Applications:**

* Material handling equipment
* Construction machinery
* Agricultural machinery
* Industrial vehicles

P40-DKL Manual 2 Spool Monoblock Directional Valve application image
