542 Views are Looking for this Product

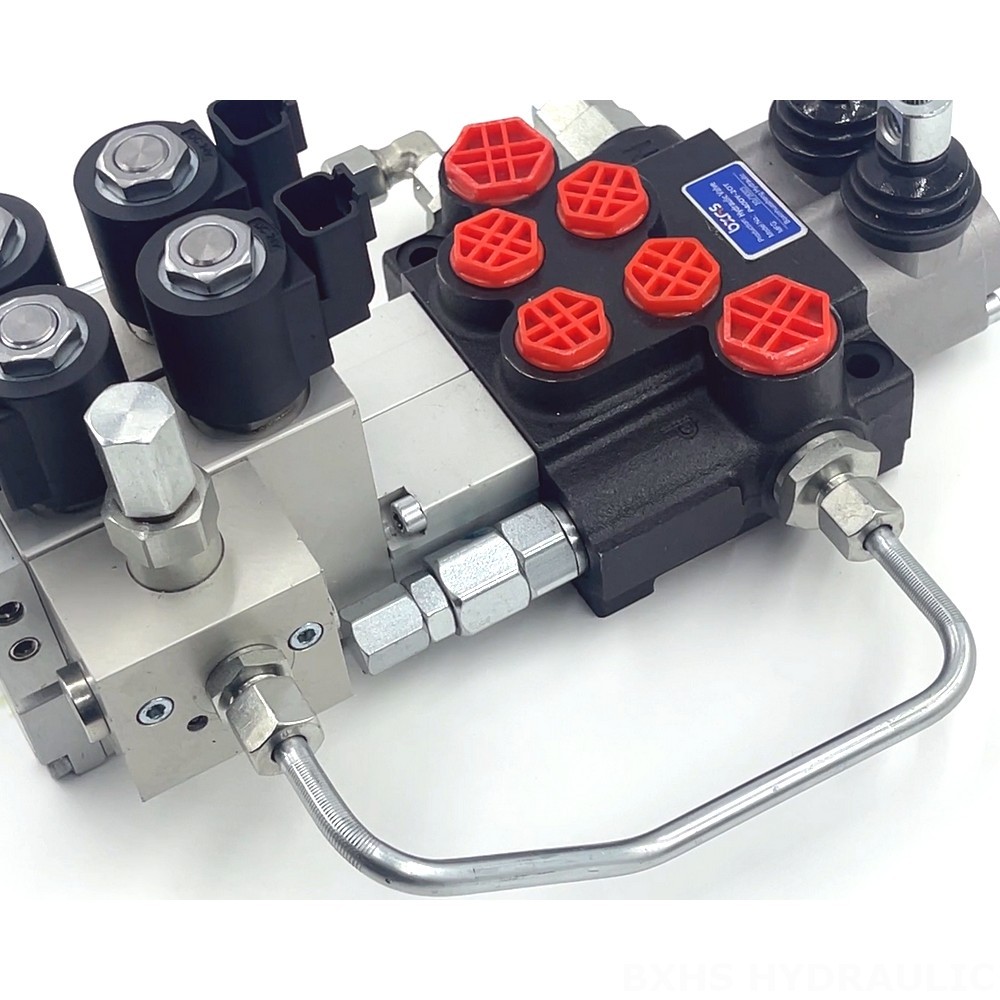

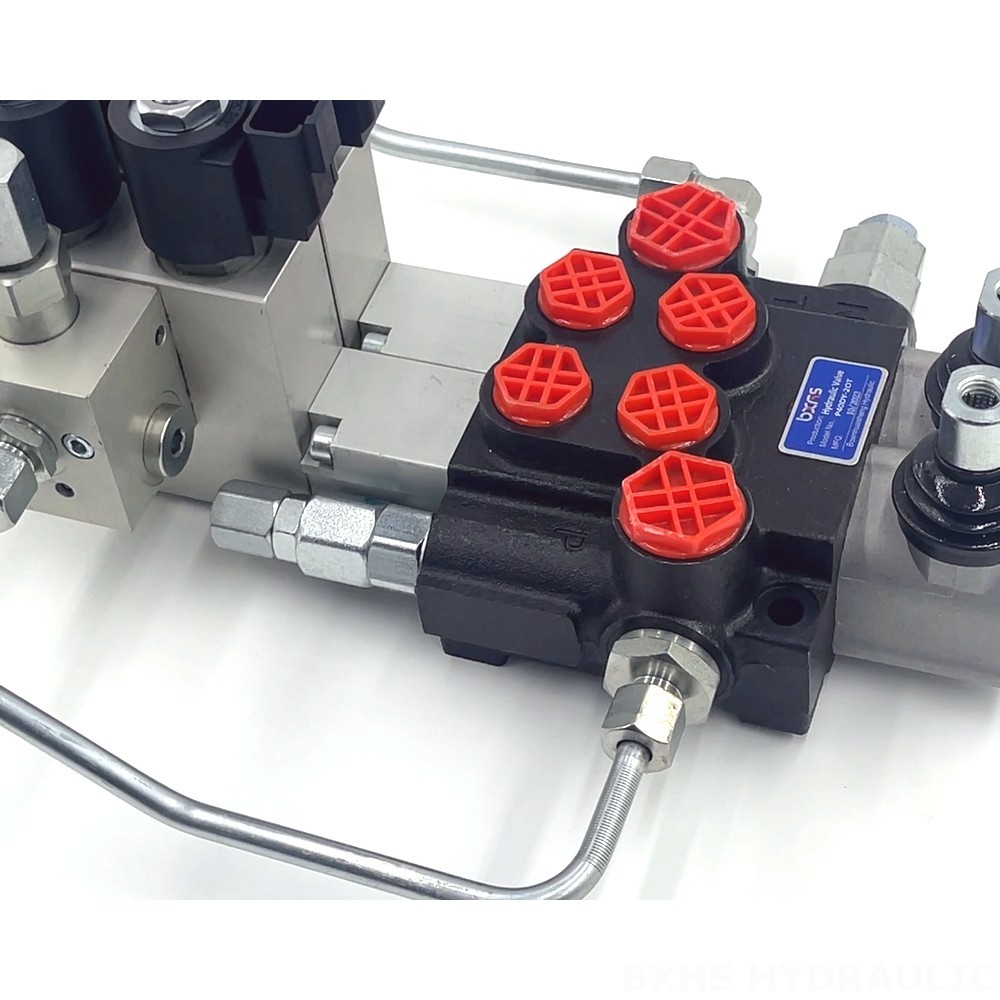

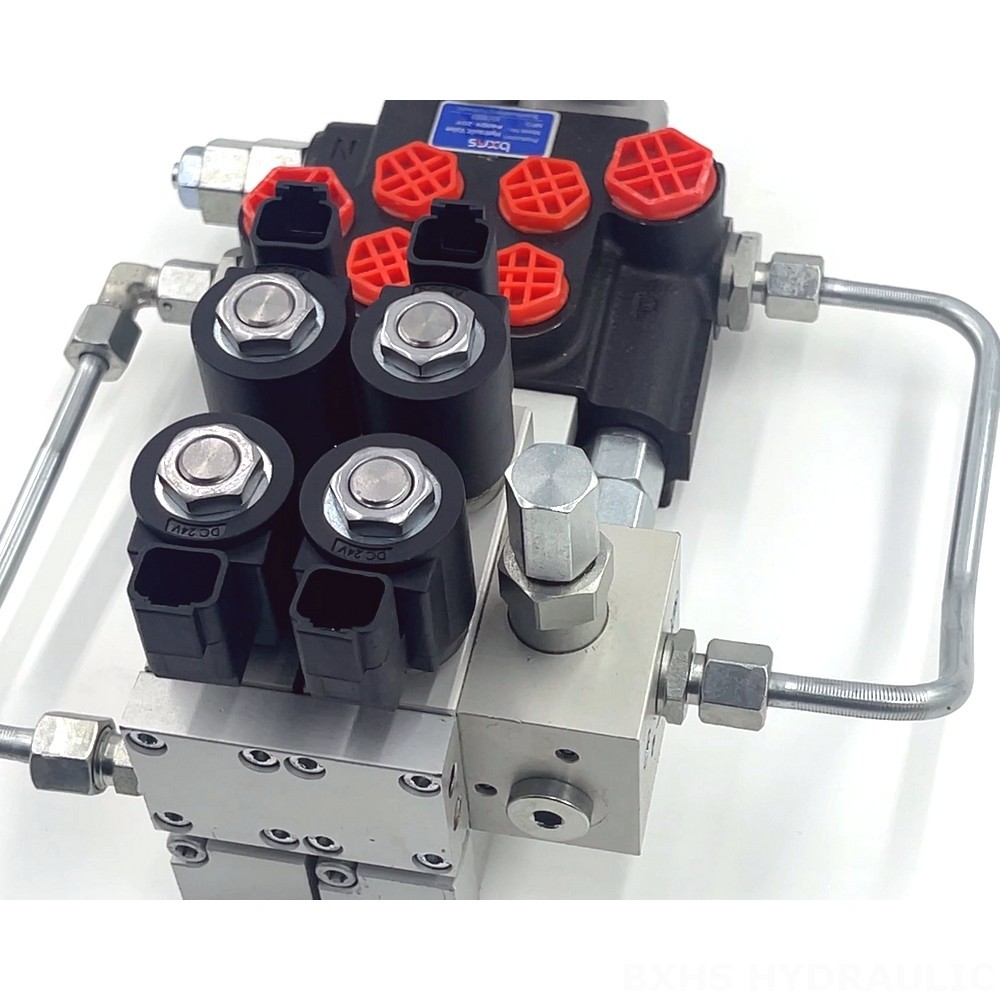

The P40 Electro-hydraulic 2 Spool Monoblock Directional Valve is a high-performance valve designed for demanding applications in various industries. With a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi), it provides reliable and efficient flow control.
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
|---|---|
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Max Pressure | 250 bar (3600 psi) |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Structure Type | Monoblock valve |
| Control Method | Electro-hydraulic |
| Section | 1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section |
**Product Features and Benefits**
* Electro-hydraulic control for precise and responsive operation
* Monoblock construction for compact size and durability
* 2 spool design for versatile flow control
* Rated flow of 40 L/min (10.5 US gpm) for high efficiency
* Maximum pressure of 250 bar (3600 psi) for demanding applications
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for wide compatibility
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for harsh environments
**Applications**
The P40 Electro-hydraulic 2 Spool Monoblock Directional Valve is suitable for a wide range of applications, including:
* Material handling equipment
* Construction machinery
* Agricultural machinery
* Industrial vehicles
