P40 Floating Cable 2 Spool Monoblock Directional Valve

Rated Flow:40 L/min (10.5 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:18*30*11

Netweight:5.00 kg

Availability: In Stock

  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • Manual and Joystick
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
1465 Views are Looking for this Product

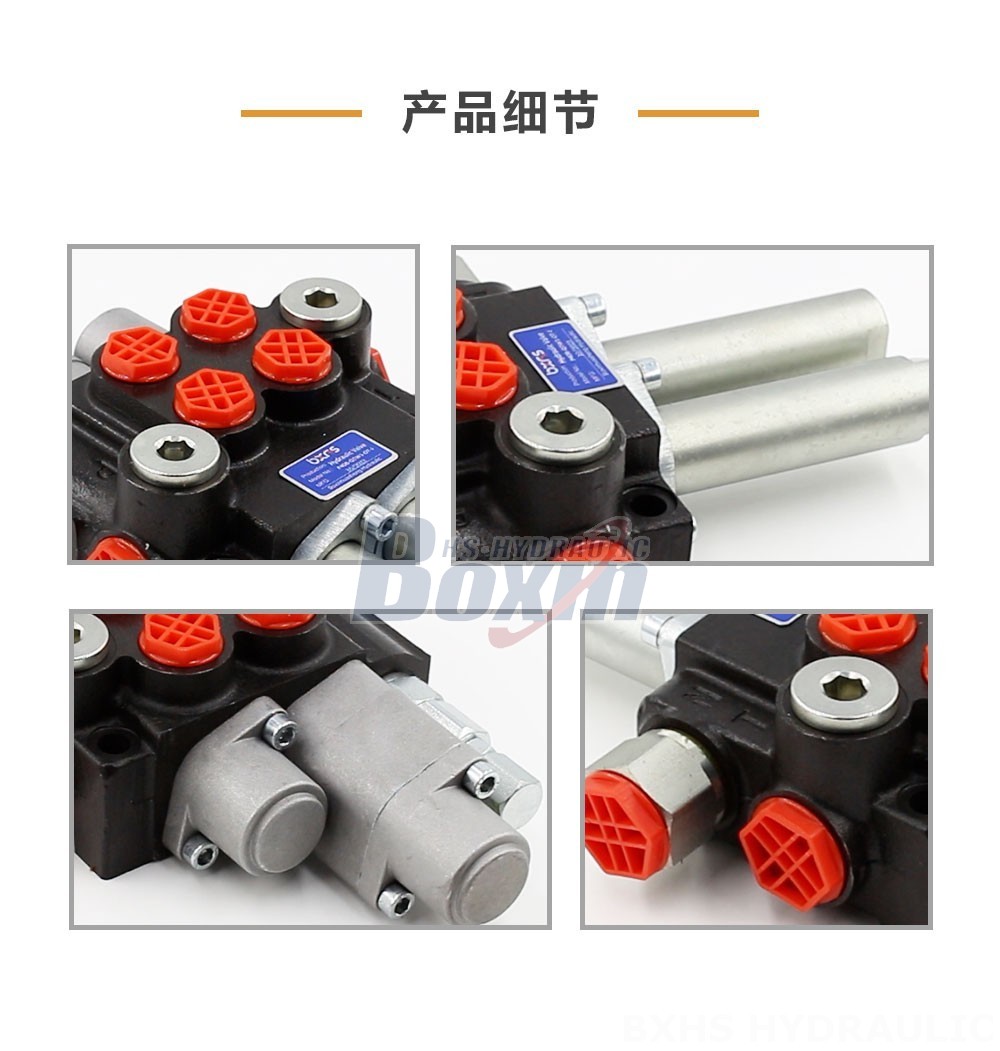

P40 Floating Cable 2 Spool Monoblock Directional Valve detailed image

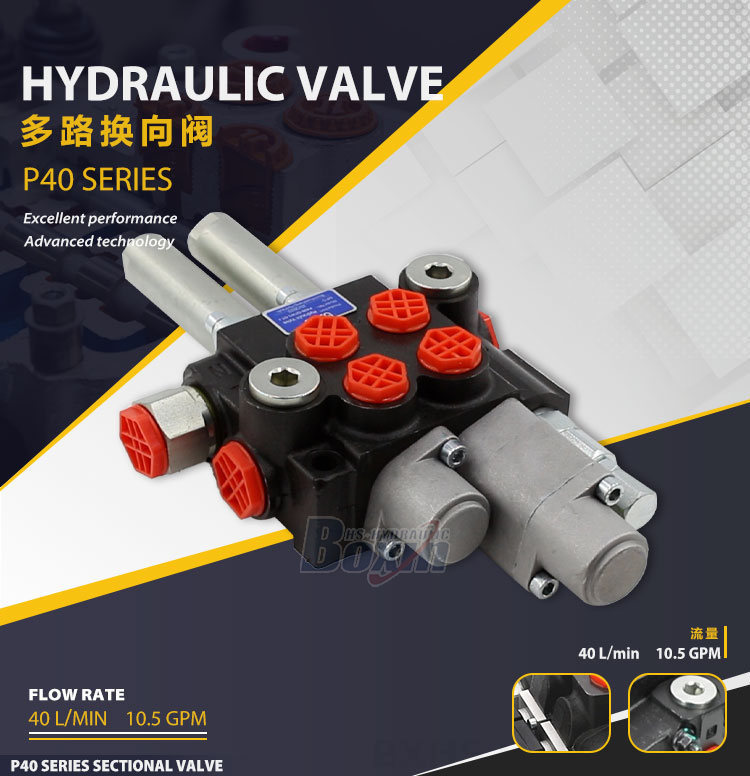

P40 Floating Cable 2 Spool Monoblock Directional Valve detailed image

P40 Floating Cable 2 Spool Monoblock Directional Valve drawing image

The P40 Floating Cable 2 Spool Monoblock Directional Valve is a hydraulic valve designed for various applications in material handling, construction, agriculture, and industrial vehicles. It features a monoblock design, 2 spool sections, and a rated flow of 40 L/min (10.5 US gpm). With a maximum pressure of 250 bar (3600 psi) and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt), it can handle a wide range of fluid conditions.

P40 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 250 bar (3600 psi)
Inlet Port G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Outlet Port G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Size G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

**Product Features and Benefits:**

* Compact monoblock design for space-saving and easy installation
* 2 spool sections for efficient control of multiple hydraulic circuits
* Floating cable control allows for remote operation
* High flow rate of 40 L/min (10.5 US gpm) for demanding applications
* Maximum pressure of 250 bar (3600 psi) for robust performance
* Wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various fluids
* Durable construction for long-lasting operation

**Applications:**

* Material handling equipment (e.g., forklifts, telehandlers, cranes)
* Construction machinery (e.g., excavators, loaders, graders)
* Agricultural equipment (e.g., tractors, harvesters, balers)
* Industrial vehicles (e.g., sweepers, compactors, waste handlers)
