P40-G12-1OT 1-Spool Hydraulic Directional Valve | Factory Direct & Customizable

Control Method:Manual

Spool:1 Spool

Rated Flow:40 L/min (10.5 US gpm)

Max Pressure:250 bar (3600 psi)

Inlet Port:G1/2

Outlet Port:G1/2

Port Size:G1/2

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Packagingsize:23*16*11

Grossweight:3.00 kg

Availability: In Stock

906 Views are Looking for this Product

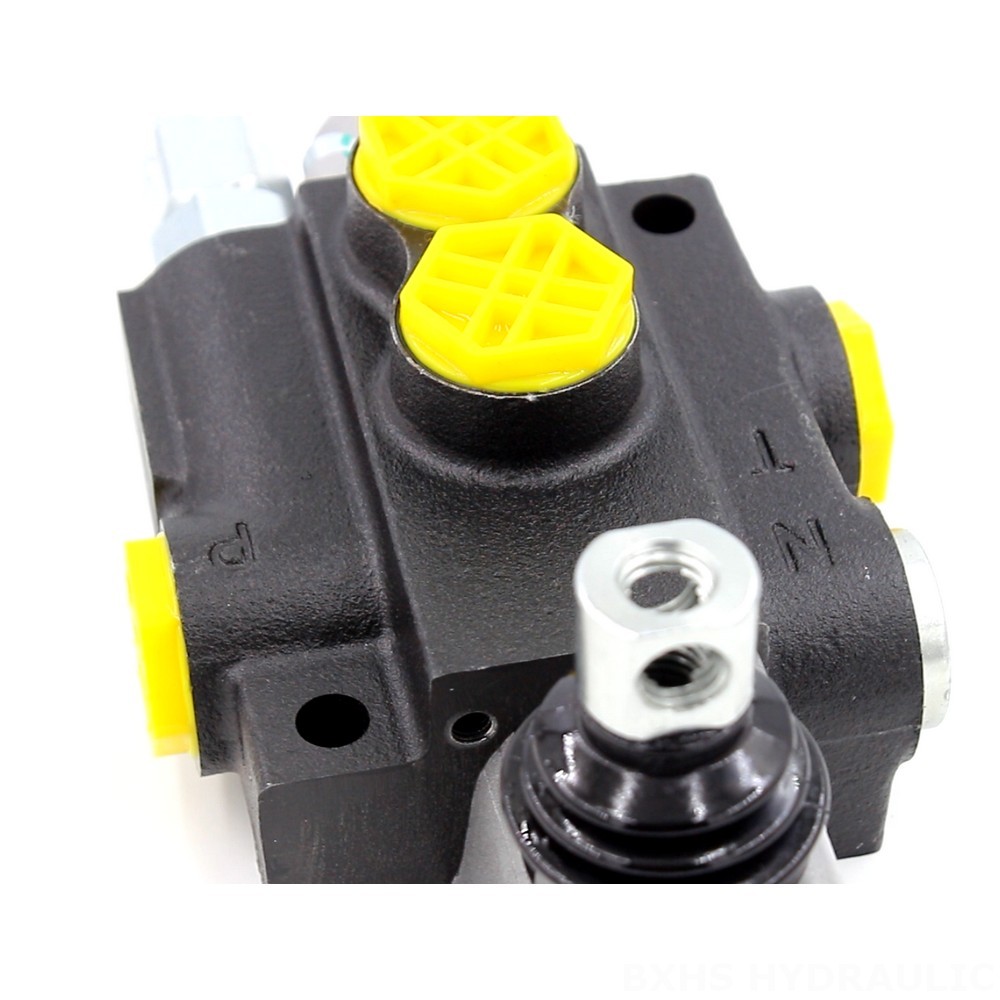

P40-G12-1OT 1-Spool Hydraulic Directional Valve | Factory Direct & Customizable detailed image

P40-G12-1OT 1-Spool Hydraulic Directional Valve | Factory Direct & Customizable detailed image

P40-G12-1OT 1-Spool Hydraulic Directional Valve | Factory Direct & Customizable drawing image

The P40-G12-1OT 1-Spool Hydraulic Directional Valve is a high-performance valve designed for use in various hydraulic systems. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve offers excellent flow control and pressure handling capabilities. Its monoblock construction ensures durability and reliability, while its manual control provides precise and responsive operation. The valve is suitable for a wide range of applications, including material handling, construction, agriculture, and industrial vehicles.

P40 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 250 bar (3600 psi)
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

**P40-G12-1OT 1-Spool Hydraulic Directional Valve**

**Control Method:** Manual
**Section:** 1 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 40 L/min (10.5 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 1 Spool
**Series:** P40 Series
**Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER

P40-G12-1OT 1-Spool Hydraulic Directional Valve | Factory Direct & Customizable application image

P40-G12-1OT 1-Spool Hydraulic Directional Valve | Factory Direct & Customizable packing image

P40-G12-1OT 1-Spool Hydraulic Directional Valve | Factory Direct & Customizable company image

P40-G12-1OT 1-Spool Hydraulic Directional Valve | Factory Direct & Customizable certification image
