P40-G12-G38-2OT-2QTW1 Manual 4 Spool Monoblock Directional Valve

Rated Flow:40 L/min (10.5 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:22*23*12

Netweight:7.92 kg

Availability: In Stock

  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • Manual and Joystick
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
758 Views are Looking for this Product

P40-G12-G38-2OT-2QTW1 Manual 4 Spool Monoblock Directional Valve detailed image

P40-G12-G38-2OT-2QTW1 Manual 4 Spool Monoblock Directional Valve detailed image

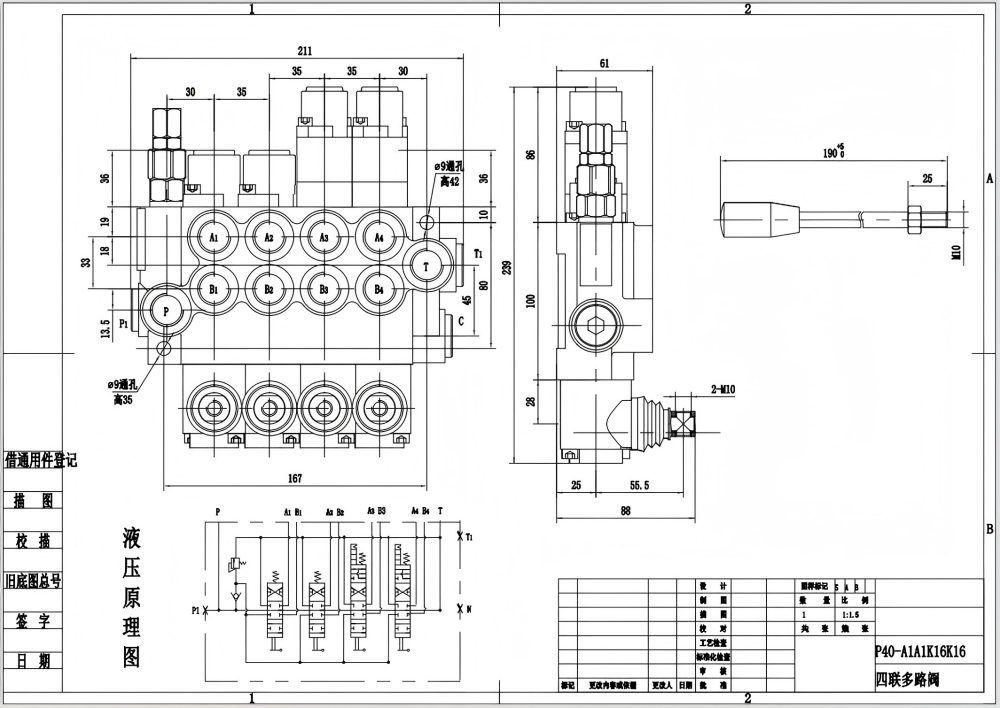

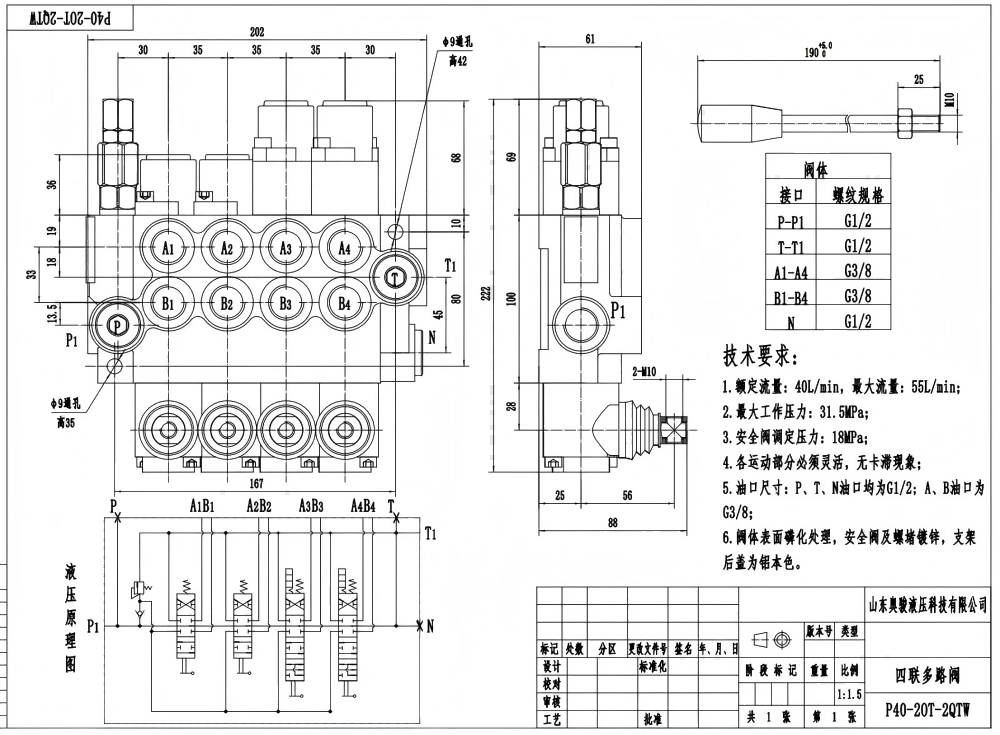

P40-G12-G38-2OT-2QTW1 Manual 4 Spool Monoblock Directional Valve drawing image

The P40-G12-G38-2OT-2QTW Manual 4 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is ideal for use in systems where precise control and reliability are essential.

P40 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 250 bar (3600 psi)
Inlet Port G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Outlet Port G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Size G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

**Product Features and Benefits:**

* Manual control for precise operation
* 4 spool design for versatility
* Monoblock construction for durability and reliability
* Rated flow of 40 L/min for high performance
* Maximum pressure of 250 bar for demanding applications
* Operating viscosity range of 15 - 75 mm²/s for compatibility with a wide range of fluids
* Ambient temperature range of -40°C to +80°C for use in extreme environments

**Applications:**

* Material handling equipment
* Construction and earth moving equipment
* Agricultural machinery
* Industrial vehicles
