P40-G12-G38 Manual 3 Spool Monoblock Directional Valve

Rated Flow:40 L/min (10.5 US gpm)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:23*20*12

Netweight:6.16 kg

Availability: In Stock

  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic and Manual
  • Cable
  • Joystick
  • Solenoid and Joystick
183 Views are Looking for this Product

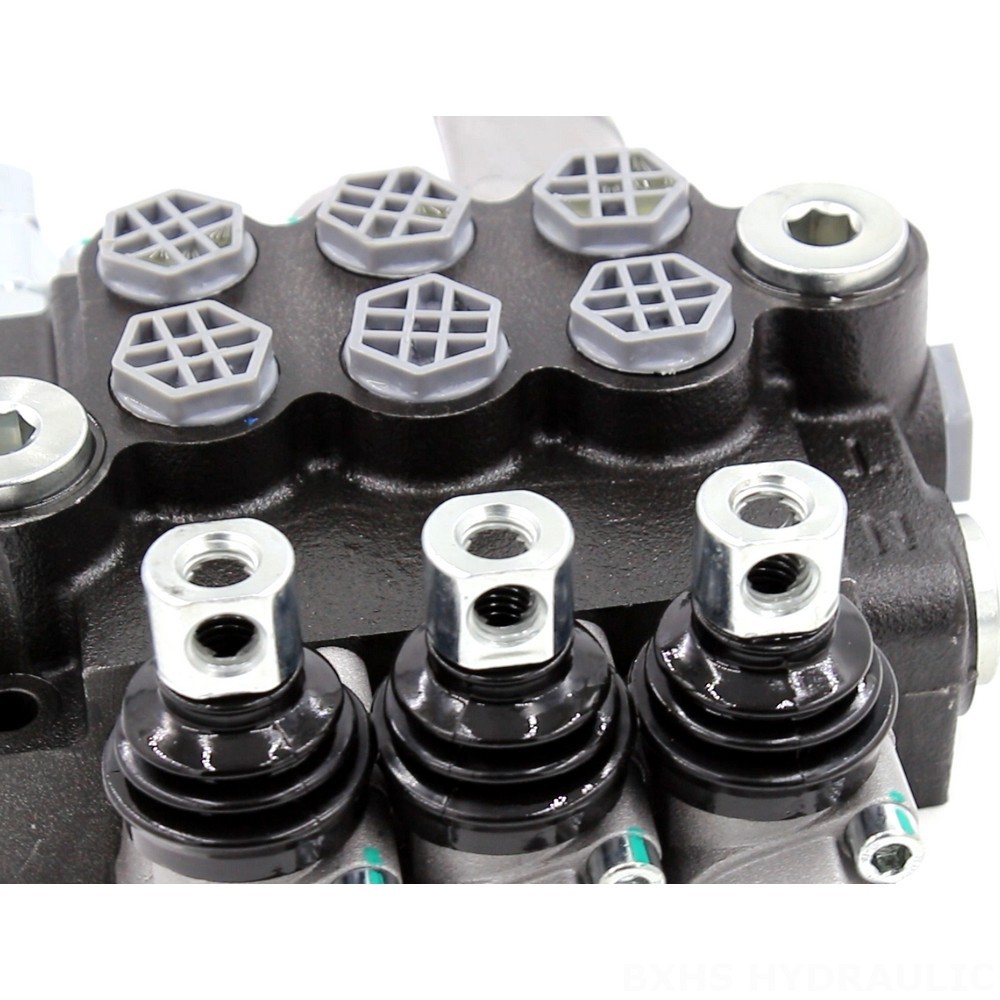

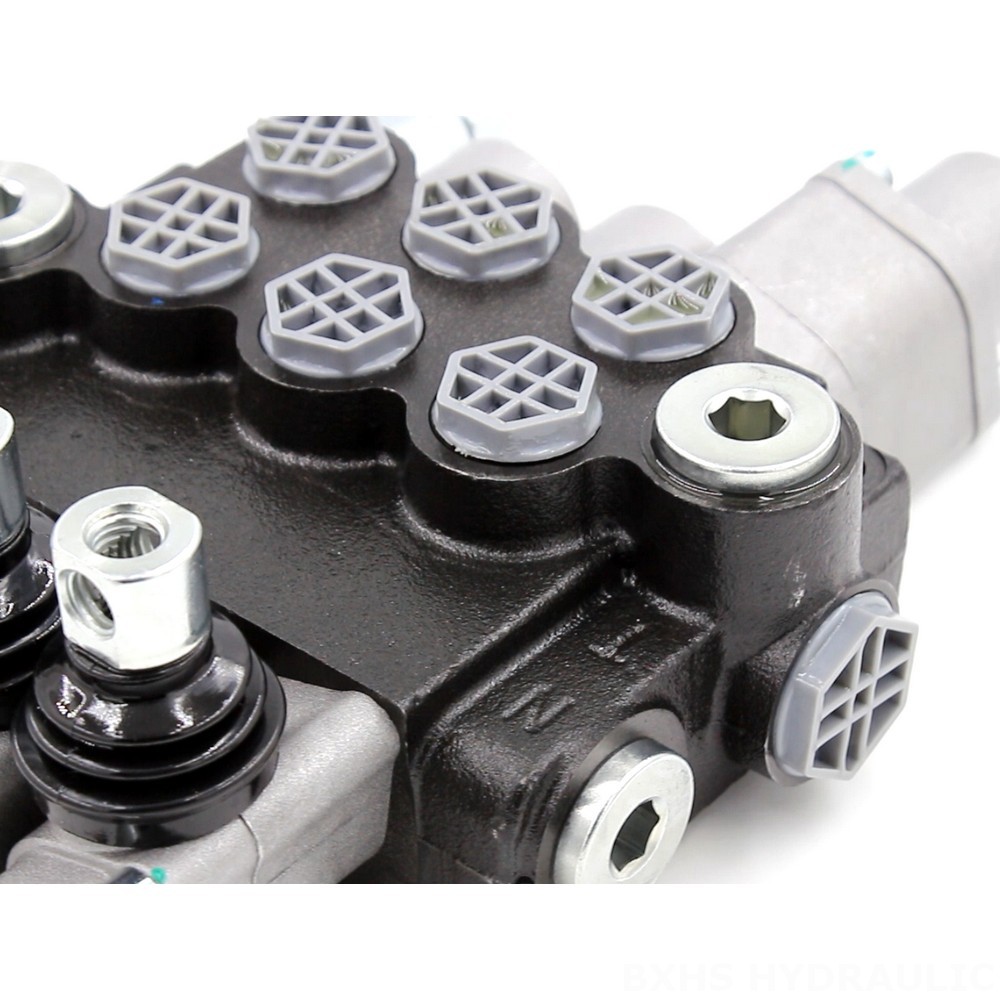

P40-G12-G38 Manual 3 Spool Monoblock Directional Valve detailed image

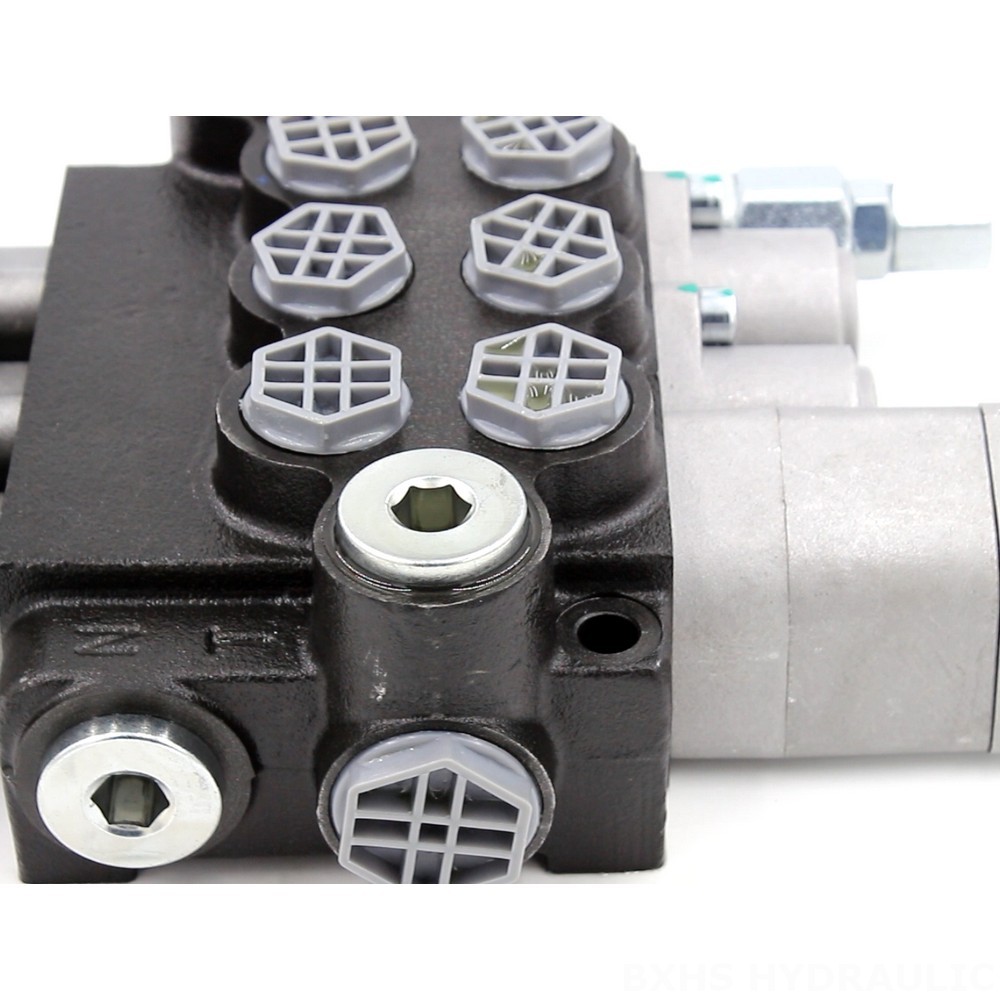

P40-G12-G38 Manual 3 Spool Monoblock Directional Valve detailed image

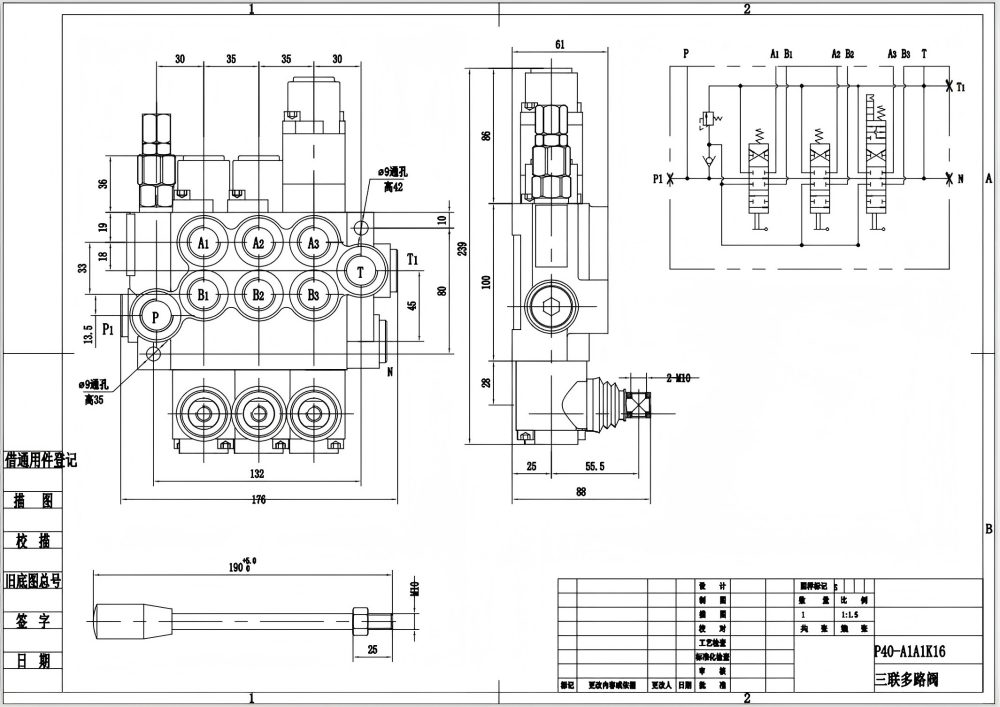

P40-G12-G38 Manual 3 Spool Monoblock Directional Valve drawing image

The P40-G12-G38 Manual 3 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications. With a rated flow of 40 L/min and a max pressure of 250 bar, this valve can handle a wide range of hydraulic fluids and operating conditions. The 3 spool design allows for precise control of hydraulic flow, making it suitable for various applications. This valve is constructed from durable materials and is designed to withstand harsh environments, ensuring reliable performance even in the most challenging conditions.

Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure 250 bar (3600 psi)
Rated Flow 40 L/min (10.5 US gpm)
Structure Type Monoblock valve
Control Method Manual
Section 1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section

**Product Features and Advantages:**

* Manual control for precise operation
* 3 spool design for versatile flow control
* Monoblock construction for durability and reliability
* Wide operating viscosity range for compatibility with various hydraulic fluids
* Suitable for harsh environments with an ambient temperature range of -40°C to +80°C

**Applications:**

This valve is widely used in various industries, including:

* Industrial machinery
* Construction equipment
* Agricultural machinery
* Material handling equipment

**Specific applications include:**

* Telehandlers
* Forklifts
* Cranes
* Stackers
* Aerial platforms
* Excavators
* Skid steer loaders
* Compact wheel loaders
