P40-G12-G38-OT 4-Spool Hydraulic Directional Valve | Factory Direct & Customizable

Control Method:Manual

Spool:4 Spool

Rated Flow:40 L/min (10.5 US gpm)

Max Pressure:250 bar (3600 psi)

Inlet Port:G1/2

Outlet Port:G1/2

Port Size:G3/8

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Packagingsize:24*23*13

Grossweight:8.20 kg

Availability: In Stock

1061 Views are Looking for this Product

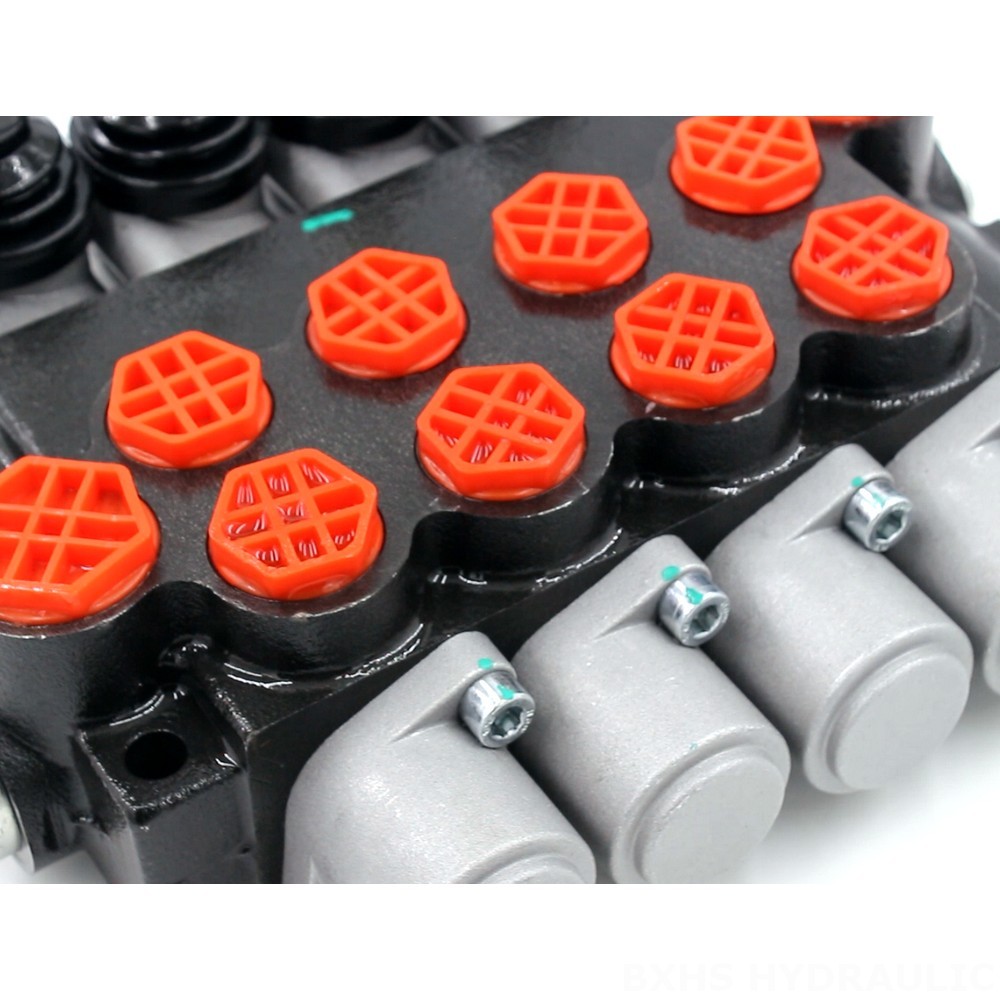

P40-G12-G38-OT 4-Spool Hydraulic Directional Valve | Factory Direct & Customizable detailed image

P40-G12-G38-OT 4-Spool Hydraulic Directional Valve | Factory Direct & Customizable detailed image

P40-G12-G38-OT 4-Spool Hydraulic Directional Valve | Factory Direct & Customizable drawing image

The P40-G12-G38-OT 4-Spool Hydraulic Directional Valve is a high-performance valve designed for demanding hydraulic systems. With its robust monoblock construction, it offers exceptional durability and reliability. The valve features a 40 L/min rated flow capacity and a maximum pressure of 250 bar, making it suitable for a wide range of applications.

P40 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 250 bar (3600 psi)
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

**Key Features:**

* Manual control for precise operation
* Monoblock design for improved durability and reduced leakage
* 4-spool configuration for versatile control
* Rated flow of 40 L/min for efficient system operation
* Maximum pressure of 250 bar for handling high-pressure applications
* Operating viscosity range of 15 - 75 mm²/s for compatibility with various fluids
* Ambient temperature range of -40°C to +80°C for operation in extreme conditions

**Applications:**

* Material handling equipment
* Construction equipment
* Agricultural equipment
* Industrial vehicles
