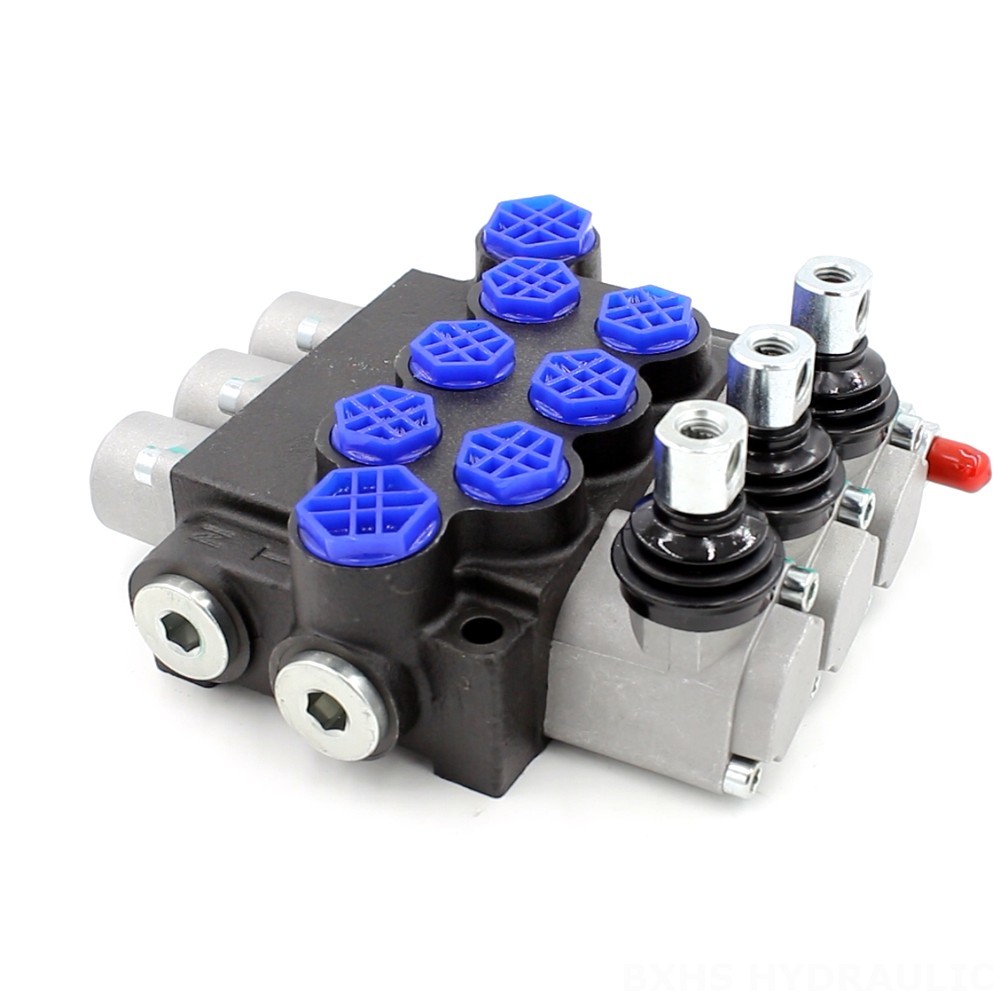

The P40-G12-G38-OT Manual 3 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of industrial and mobile applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve provides precise flow and pressure control for demanding hydraulic systems.
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
|---|---|
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Max Pressure | 250 bar (3600 psi) |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Structure Type | Monoblock valve |
| Control Method | Manual |
| Section | 1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section |
**Product Features and Benefits:**
* Manual control for precise and responsive operation
* Monoblock construction for compact size and reduced leakage potential
* 3 spool design for versatile flow control
* Flow capacity of 40 L/min for efficient system operation
* Maximum pressure of 250 bar for demanding applications
* Wide operating viscosity range of 15 - 75 mm²/s for compatibility with various hydraulic fluids
* Durable construction for long service life
**Applications:**
The P40-G12-G38-OT Manual 3 Spool Monoblock Directional Valve is suitable for a variety of industrial and mobile applications, including:
* Material handling equipment
* Construction machinery
* Agricultural machinery
* Industrial vehicles
* Hydraulic power units
* Test benches
