P40-G12-G38-OT-OT-QTW Manual 3 Spool Monoblock Directional Valve

Rated Flow:40 L/min (10.5 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:23*20*12

Netweight:6.50 kg

Availability: In Stock

  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • Manual and Joystick
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
710 Views are Looking for this Product

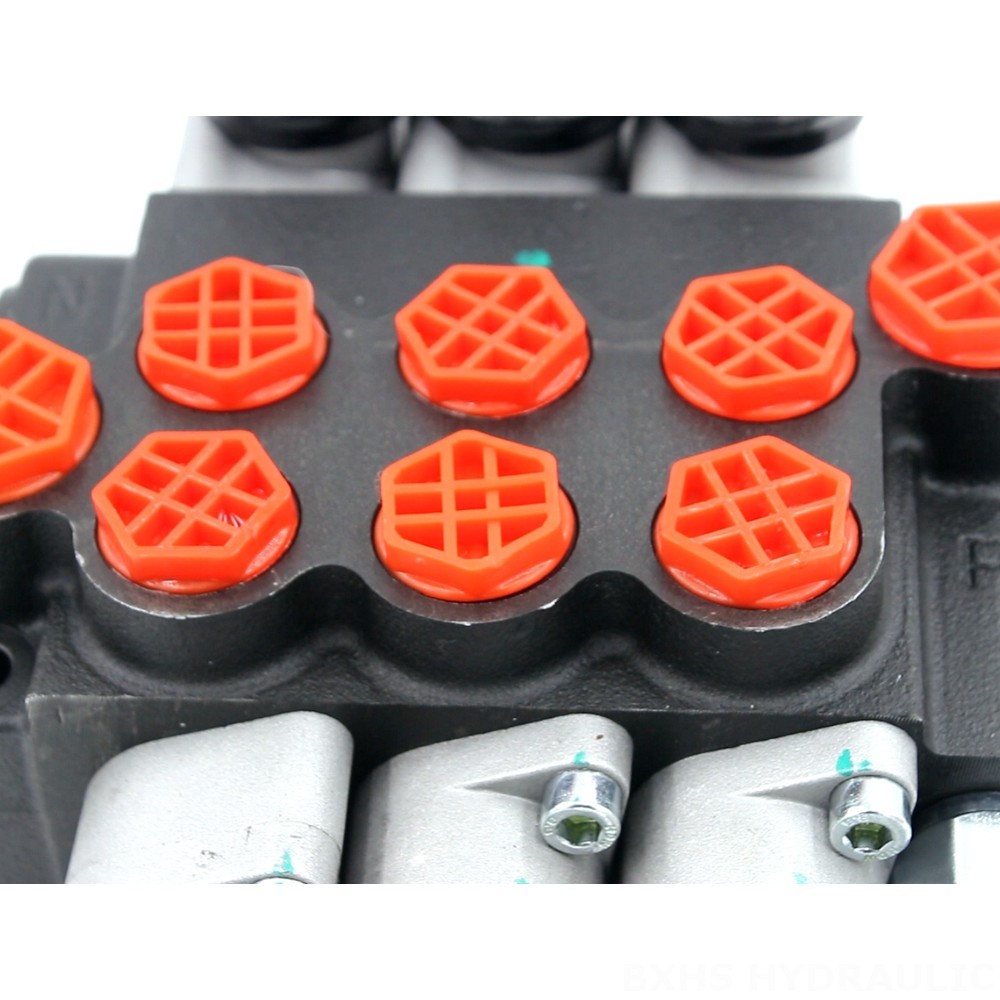

P40-G12-G38-OT-OT-QTW Manual 3 Spool Monoblock Directional Valve detailed image

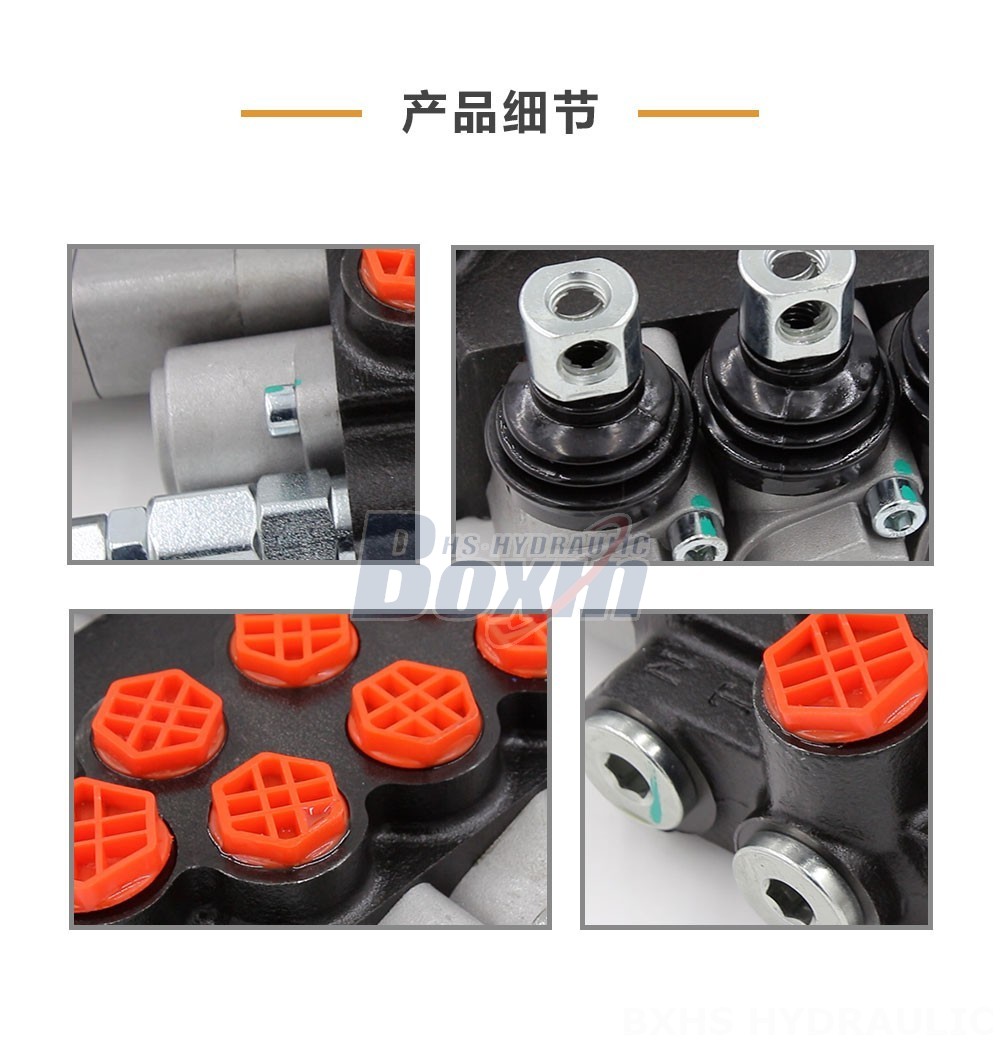

P40-G12-G38-OT-OT-QTW Manual 3 Spool Monoblock Directional Valve detailed image

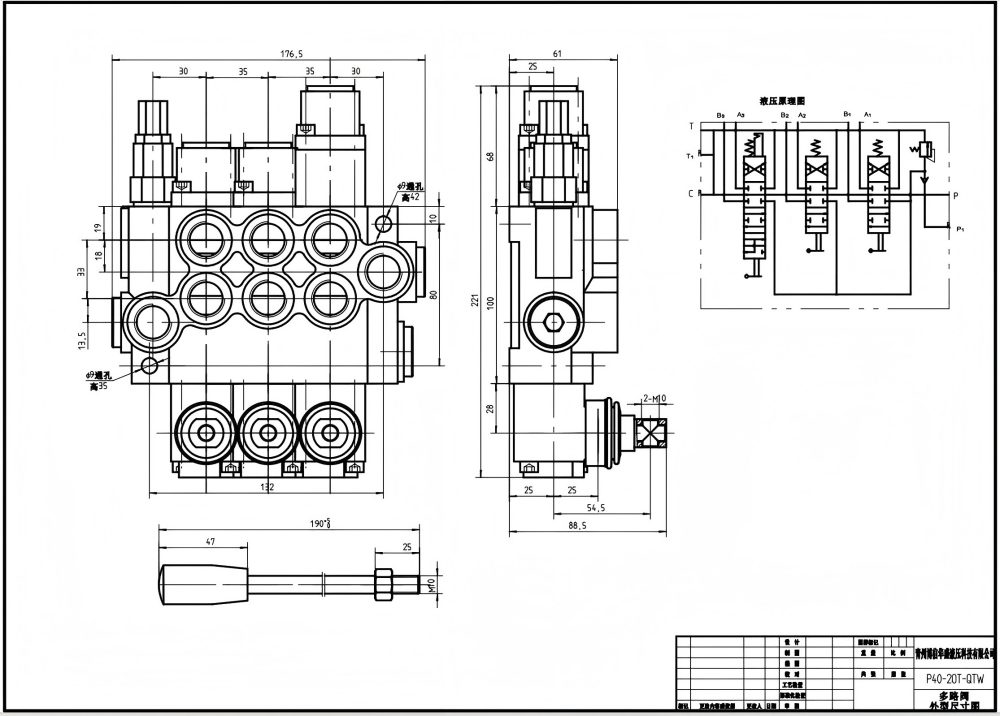

P40-G12-G38-OT-OT-QTW Manual 3 Spool Monoblock Directional Valve drawing image

The P40-G12-G38-OT-OT-OT Manual 3 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in various industrial applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it provides reliable and efficient flow control. Its compact monoblock design ensures easy installation and maintenance.

P40 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 250 bar (3600 psi)
Inlet Port G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Outlet Port G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Size G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

**Product Features:**

* Manual control for precise flow regulation
* 3 spool design for versatile operation
* Monoblock construction for compact and durable design
* Flow capacity of 40 L/min
* Maximum pressure rating of 250 bar
* Wide operating viscosity range (15 - 75 mm²/s)
* Suitable for use in harsh environments (-40°C to +80°C)

**Applications:**

The P40-G12-G38-OT-OT-OT Manual 3 Spool Monoblock Directional Valve is ideal for use in a variety of hydraulic systems, including:

* Material handling equipment (forklifts, cranes, etc.)
* Construction machinery (excavators, loaders, etc.)
* Agricultural equipment (tractors, harvesters, etc.)
* Industrial vehicles (sweepers, waste compactors, etc.)
