P40-G12-G38-OT-QTW Manual 2 Spool Monoblock Directional Valve

Rated Flow:40 L/min (10.5 US gpm)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:22*17*12

Netweight:4.55 kg

Availability: In Stock

Description

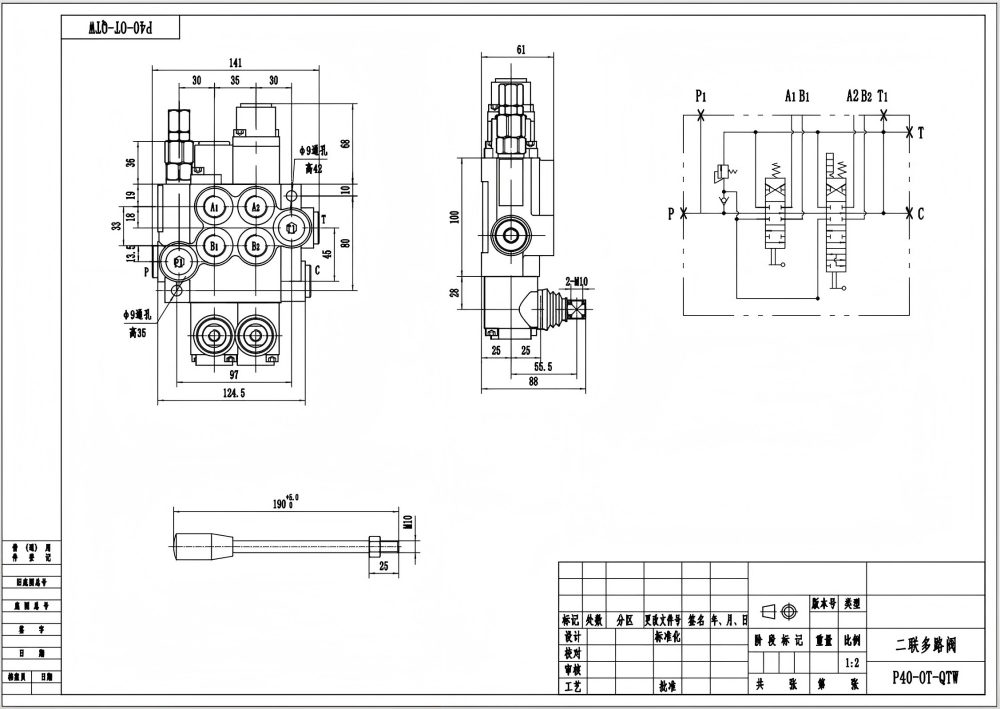

P40-G12-G38-OT-QTW Manual 2 Spool Monoblock Directional Valve detailed image

The P40-G12-G38-OT-QTW Manual 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of industrial applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is capable of handling demanding hydraulic systems. Its compact monoblock design and manual control method make it easy to integrate into existing systems.

Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure	250 bar (3600 psi)
Rated Flow	40 L/min (10.5 US gpm)
Structure Type	Monoblock valve
Control Method	Manual
Section	1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section

**Product Features and Benefits:**

* Manual control for precise operation
* 2 spool design for versatility
* Monoblock construction for compact and leak-free performance
* Rated flow of 40 L/min for high efficiency
* Maximum pressure of 250 bar for durability
* Operating viscosity range of 15 - 75 mm²/s for compatibility with various hydraulic fluids
* Ambient temperature range of -40°C to +80°C for use in harsh environments

**Applications:**

* Material handling equipment
* Construction and earth moving machinery
* Agricultural machinery
* Industrial vehicles
* Telehandlers
* Forklifts
* All terrain cranes
* Stackers
* Aerial platforms
* Motor graders
