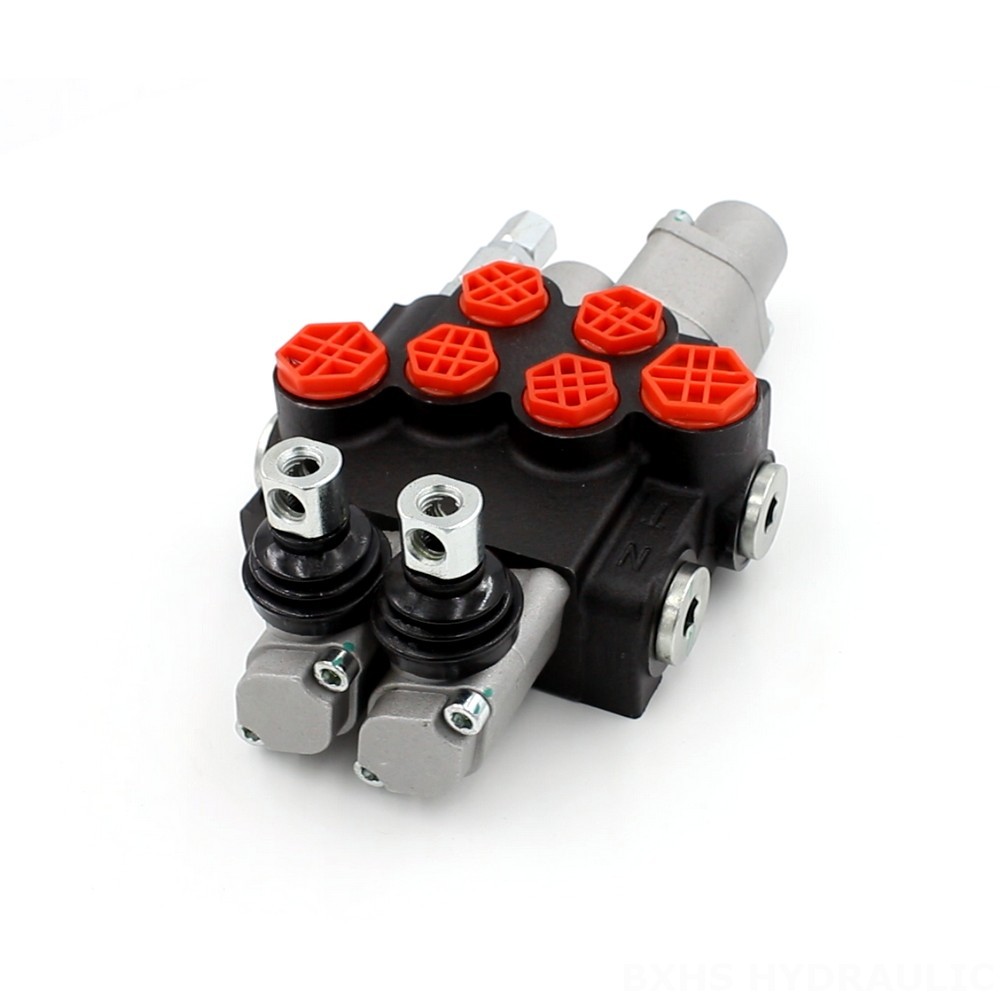

The P40-G12-G38-OT-QTW1 Manual 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for various applications in agriculture, construction, and industrial vehicles. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it offers precise and reliable directional control in demanding hydraulic systems.
| P40 Series Monoblock Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Max Pressure | 250 bar (3600 psi) |
| Inlet Port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Outlet Port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Size | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
| Structure Type | Monoblock valve |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
**Product Features and Benefits:**
* Manual control for precise operation
* 2 spool design for versatile flow management
* Monoblock construction for compact and durable installation
* Flow capacity of 40 L/min for efficient system performance
* Maximum pressure of 250 bar for demanding applications
* Wide operating viscosity range of 15 - 75 mm²/s for compatibility with various hydraulic fluids
* Operating temperature range of -40°C to +80°C for use in extreme environments
**Applications:**
The P40-G12-G38-OT-QTW1 Manual 2 Spool Monoblock Directional Valve is suitable for a wide range of hydraulic applications, including:
* Mobile hydraulics in construction equipment, such as excavators, loaders, and cranes
* Agricultural machinery, such as tractors, harvesters, and balers
* Material handling equipment, such as forklifts, telehandlers, and stackers
* Industrial vehicles, such as sweepers, waste compactors, and hook-loaders
