P40-G12-G38-OW Manual 3 Spool Monoblock Directional Valve

Rated Flow:40 L/min (10.5 US gpm)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:23*20*12

Netweight:5.96 kg

Availability: In Stock

  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic and Manual
  • Cable
  • Joystick
  • Solenoid and Joystick
245 Views are Looking for this Product

P40-G12-G38-OW Manual 3 Spool Monoblock Directional Valve detailed image

P40-G12-G38-OW Manual 3 Spool Monoblock Directional Valve detailed image

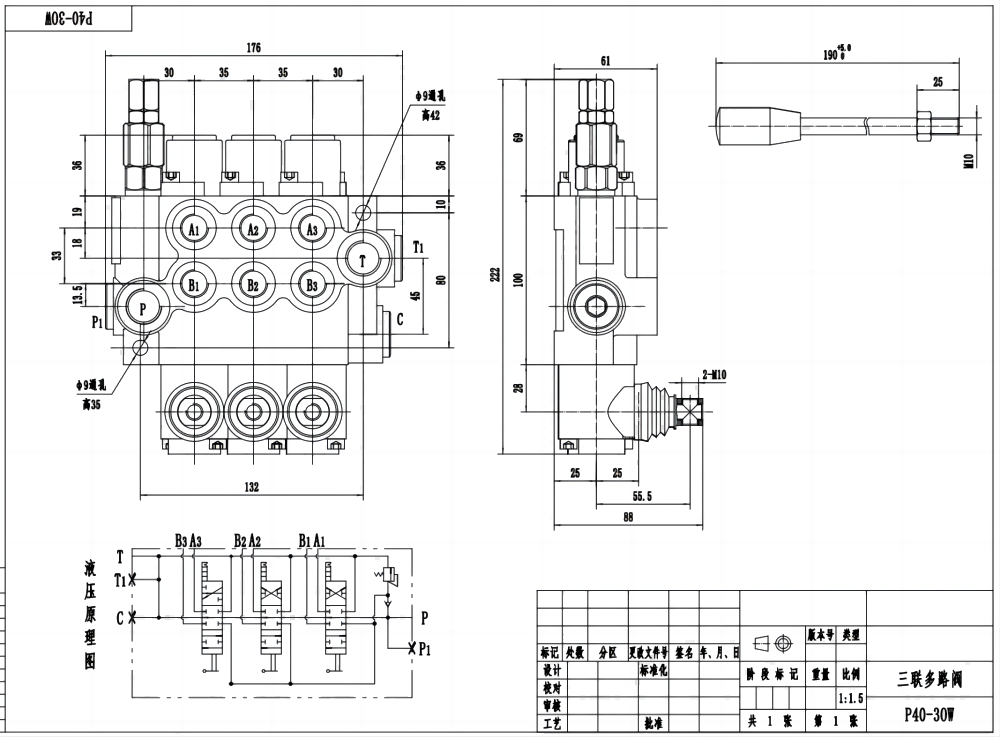

P40-G12-G38-OW Manual 3 Spool Monoblock Directional Valve drawing image

The P40-G12-G38-OW Manual 3 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for a wide range of applications in the material handling, construction and earth moving, agriculture, and industrial vehicles industries. With its rated flow of 40 L/min (10.5 US gpm), max pressure of 250 bar (3600 psi), and operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt), this valve is capable of handling a variety of hydraulic fluids and operating conditions. The manual control method provides precise and reliable operation, while the monoblock construction ensures durability and leak-free performance.

Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure 250 bar (3600 psi)
Rated Flow 40 L/min (10.5 US gpm)
Structure Type Monoblock valve
Control Method Manual
Section 1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section

**Product Features and Benefits:**

* Manual control for precise and reliable operation
* Monoblock construction for durability and leak-free performance
* Rated flow of 40 L/min (10.5 US gpm) for high efficiency
* Max pressure of 250 bar (3600 psi) for demanding applications
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with a wide range of hydraulic fluids
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for use in extreme environments

**Applications:**

* Material handling equipment: forklifts, telehandlers, stackers, aerial platforms
* Construction and earth moving equipment: excavators, skid steer loaders, compact wheel loaders, wheel loaders, motor graders
* Agricultural equipment: tractors, harvesters, balers, seeders
* Industrial vehicles: sweepers, waste compactors
