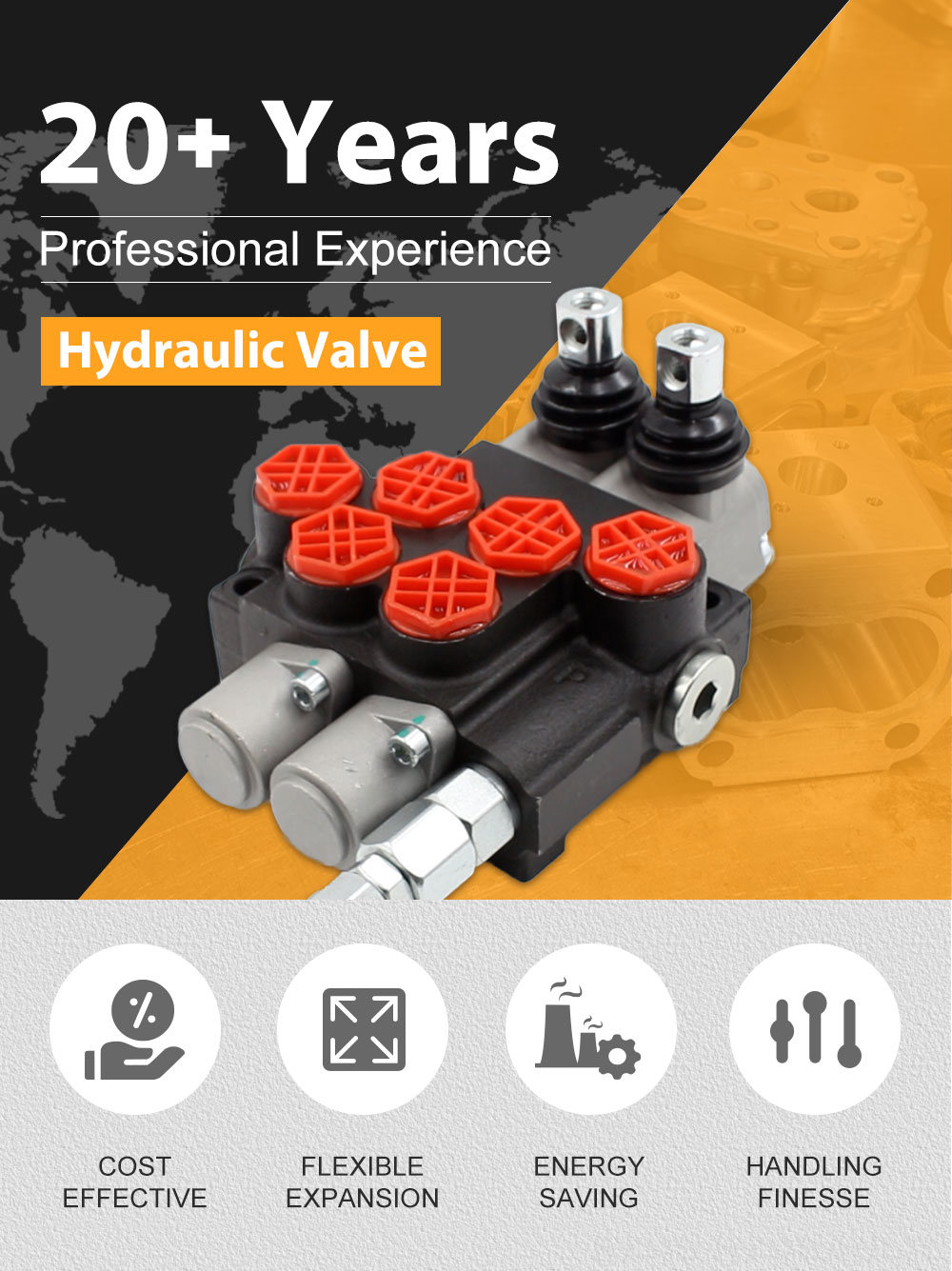

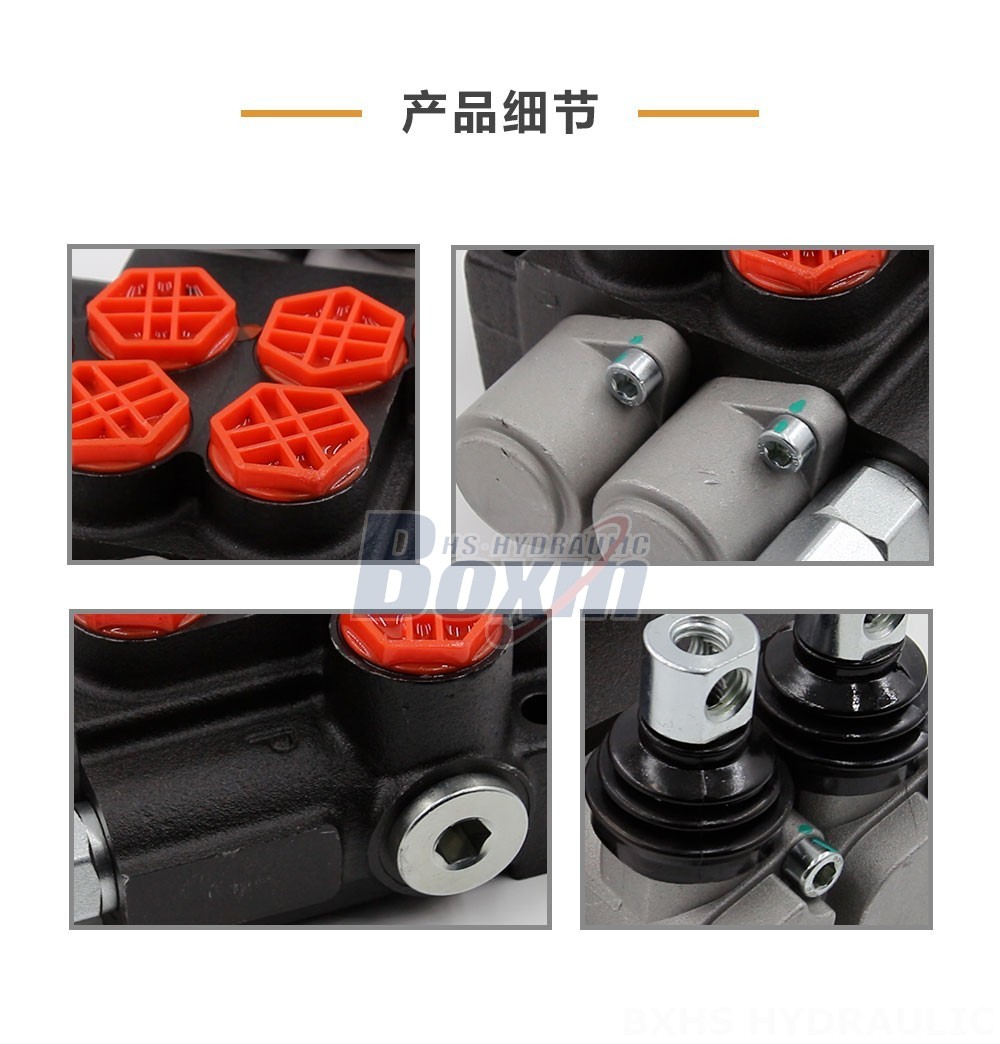

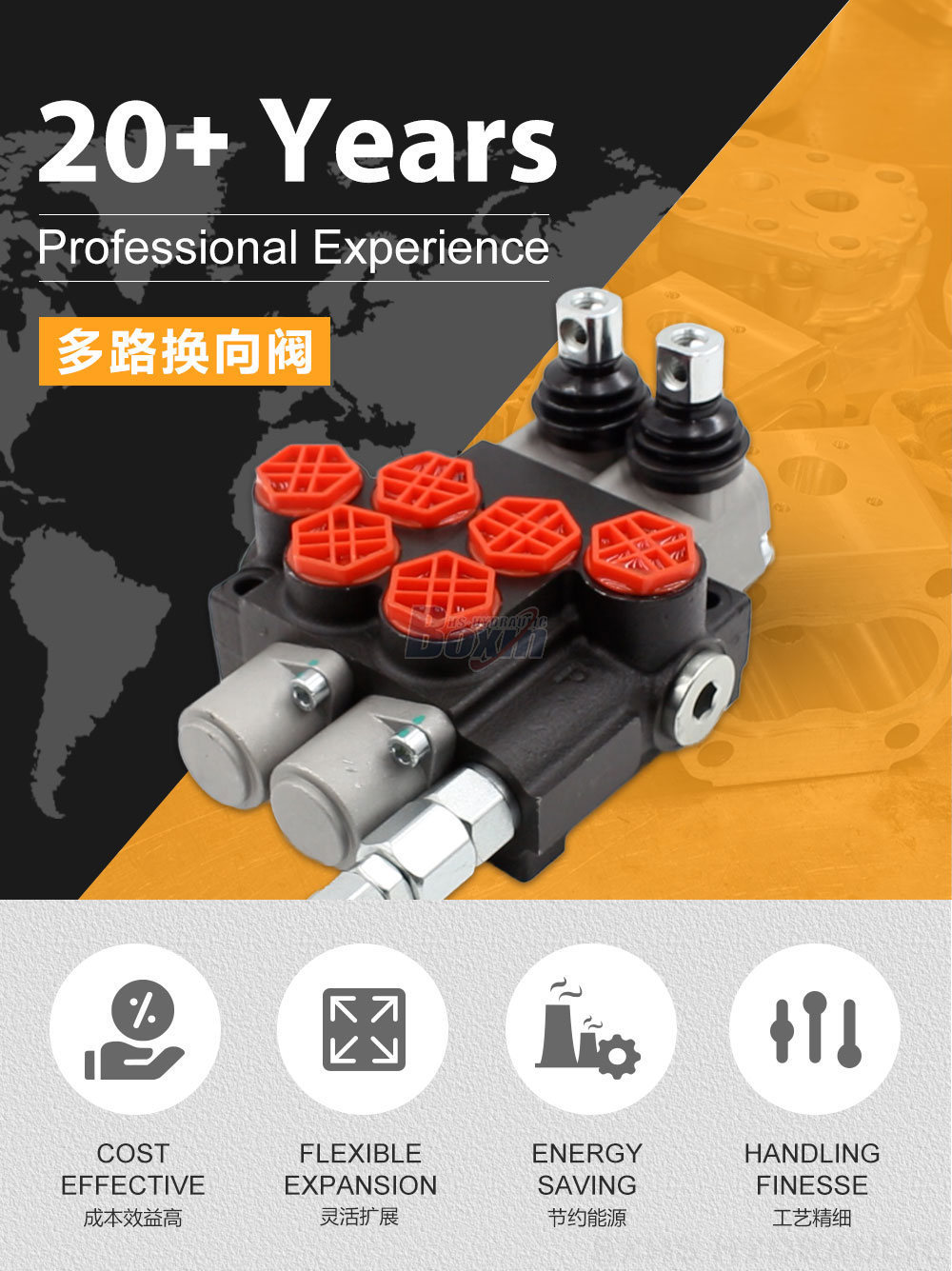

The P40-G12 Manual 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in various industrial applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve provides precise and reliable control of fluid flow. Its monoblock construction ensures durability and compact size, making it suitable for space-constrained applications. The valve operates within a wide viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C, ensuring optimal performance in diverse operating conditions.
| P40 Series Monoblock Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Max Pressure | 250 bar (3600 psi) |
| Inlet Port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Outlet Port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Size | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
| Structure Type | Monoblock valve |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
**Product Features and Advantages:**
* Manual control for precise and intuitive operation
* Monoblock construction for durability and compact size
* Flow capacity of 40 L/min for efficient system operation
* Maximum pressure of 250 bar for demanding applications
* Wide viscosity range of 15 - 75 mm²/s for compatibility with various fluids
* Wide ambient temperature range of -40°C to +80°C for operation in extreme conditions
**Applications:**
The P40-G12 Manual 2 Spool Monoblock Directional Valve finds applications in various industries, including:
* Material handling equipment (forklifts, telehandlers, stackers)
* Construction and earth-moving machinery (excavators, wheel loaders, backhoe loaders)
* Agricultural machinery (tractors, harvesters, balers)
* Industrial vehicles (sweepers, waste compactors)
