P40-G38 Manual 1 Spool Monoblock Directional Valve

Rated Flow:40 L/min (10.5 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:22*15*10

Netweight:2.80 kg

Availability: In Stock

  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • Manual and Joystick
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
732 Views are Looking for this Product

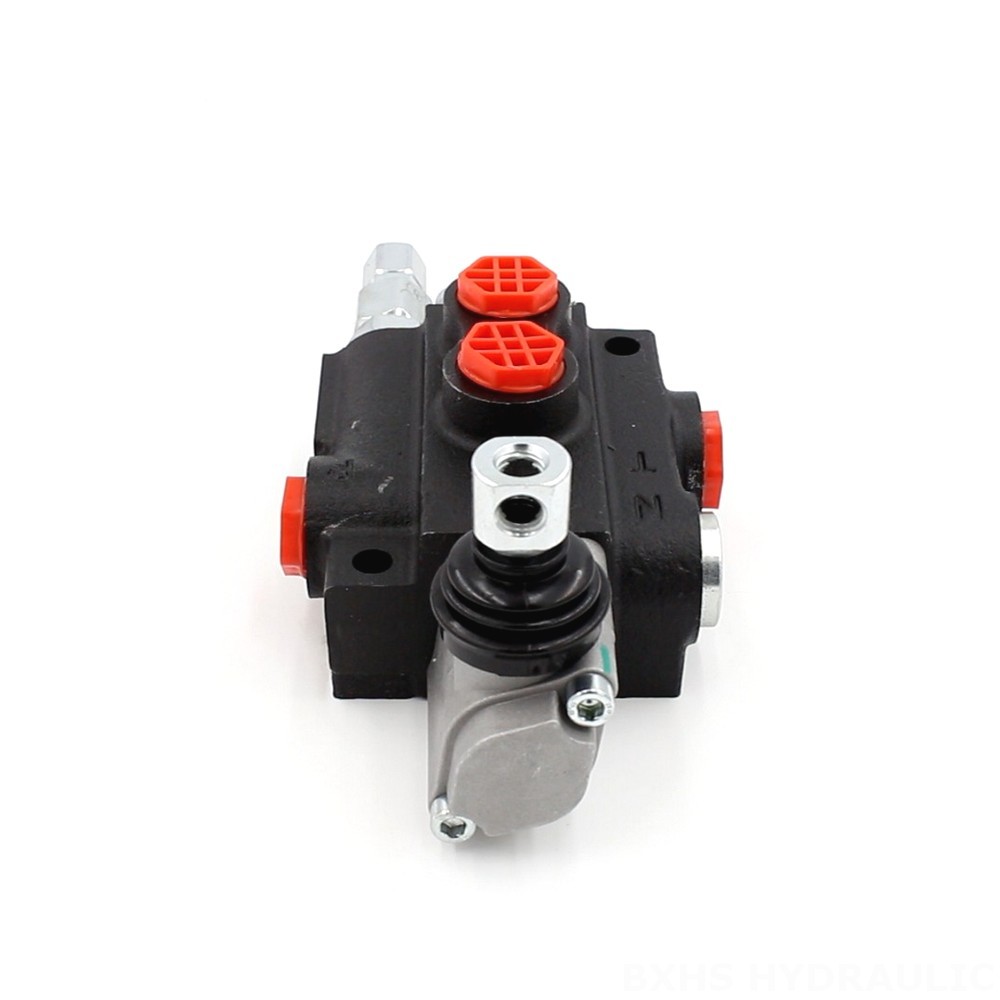

P40-G38 Manual 1 Spool Monoblock Directional Valve detailed image

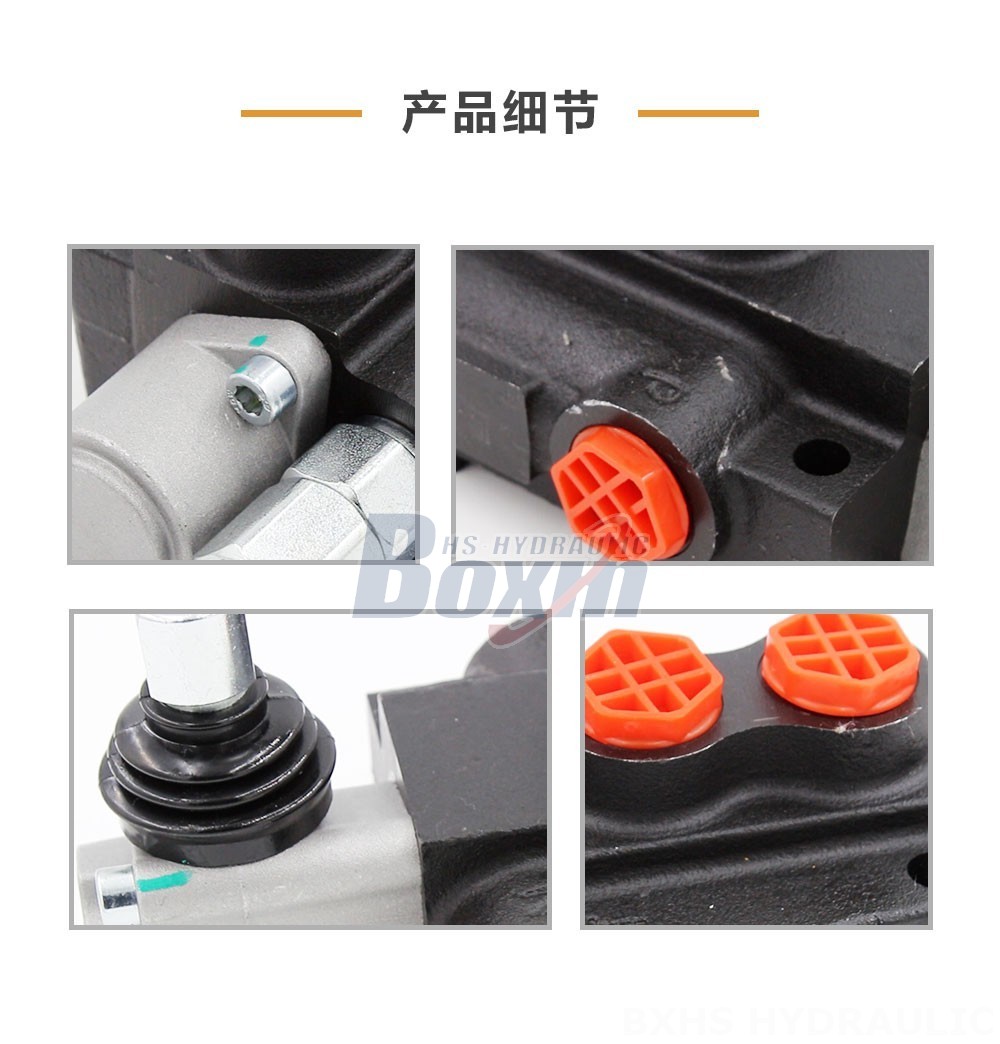

P40-G38 Manual 1 Spool Monoblock Directional Valve detailed image

P40-G38 Manual 1 Spool Monoblock Directional Valve drawing image

The P40-G38 Manual 1 Spool Monoblock Directional Valve is a compact and reliable hydraulic valve designed for precise control of fluid flow in various applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it offers efficient and dependable performance. Its robust construction ensures durability and longevity in demanding operating conditions.

P40 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 250 bar (3600 psi)
Inlet Port G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Outlet Port G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Size G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

**Product Features and Benefits:**

* Manual control for precise and responsive operation
* Monoblock construction for compact size and reduced leakage potential
* Flow capacity of 40 L/min for efficient fluid handling
* Maximum pressure of 250 bar for demanding applications
* Wide operating viscosity range of 15 - 75 mm²/s for compatibility with various fluids
* Durable construction for extended service life and reliability

**Applications:**

* Material handling equipment: forklifts, telehandlers, cranes
* Construction and earthmoving machinery: excavators, loaders, graders
* Agricultural vehicles: tractors, harvesters, balers
* Industrial vehicles: sweepers, compactors, waste handlers
