719 Views are Looking for this Product

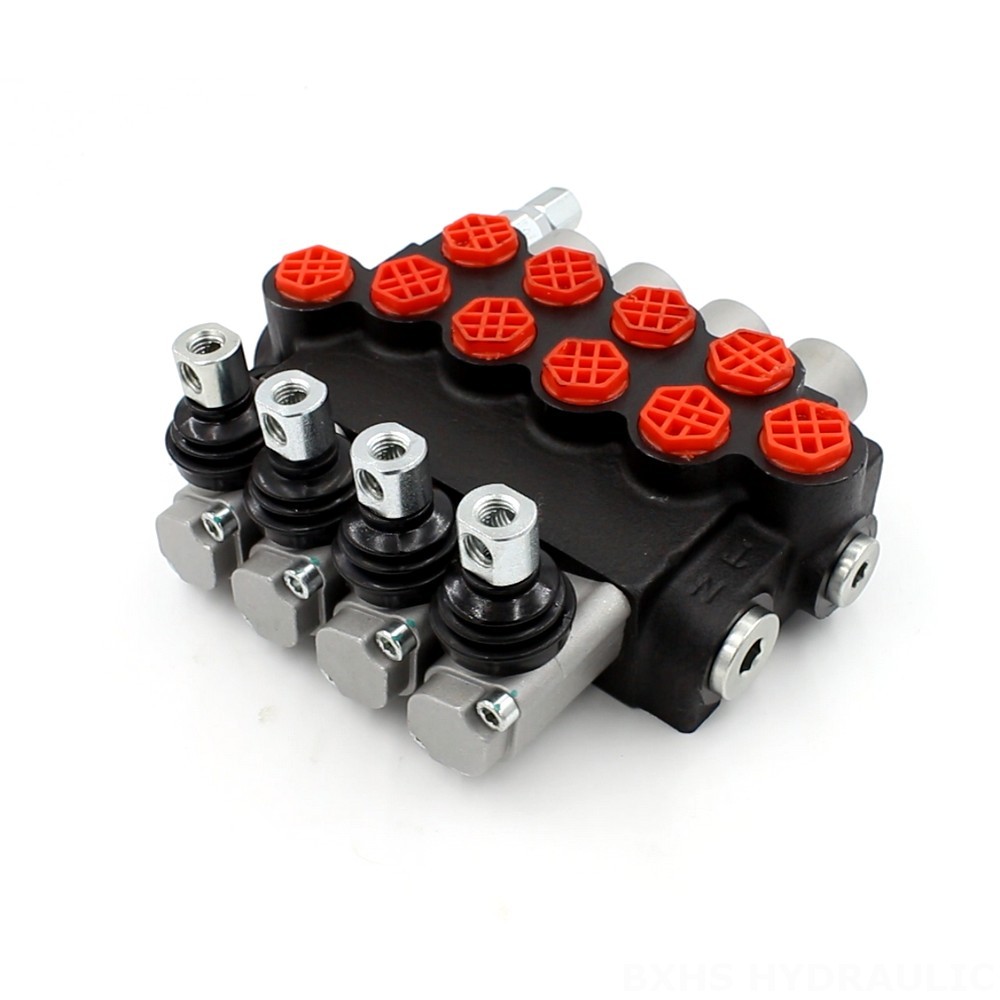

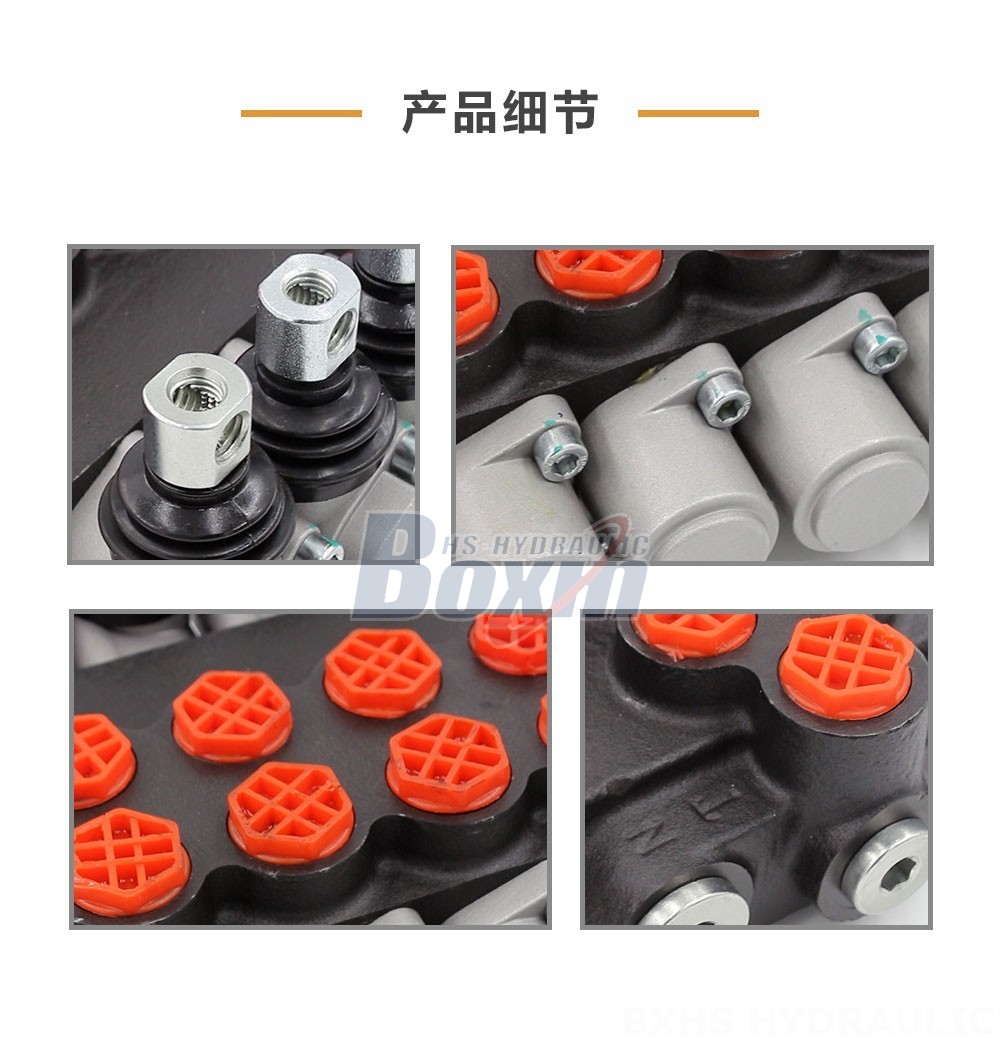

The P40-G38 Manual 4 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications in various industries. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve offers exceptional flow and pressure control capabilities. Its compact monoblock design ensures durability and reliability in harsh operating conditions.
| P40 Series Monoblock Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Max Pressure | 250 bar (3600 psi) |
| Inlet Port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Outlet Port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Size | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
| Structure Type | Monoblock valve |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
**Product Features and Benefits:**
* Manual control for precise and responsive operation
* 4 section design for versatile flow and pressure control
* Monoblock construction for enhanced durability and reduced leakage
* Wide operating viscosity range (15 - 75 mm²/s) for compatibility with various hydraulic fluids
* Suitable for ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F)
**Applications:**
The P40-G38 Manual 4 Spool Monoblock Directional Valve finds applications in a wide range of industries, including:
* Material handling equipment: forklifts, telehandlers, cranes
* Construction and earth moving machinery: excavators, loaders, graders
* Agricultural machinery: tractors, harvesters, balers
* Industrial vehicles: sweepers, waste compactors
