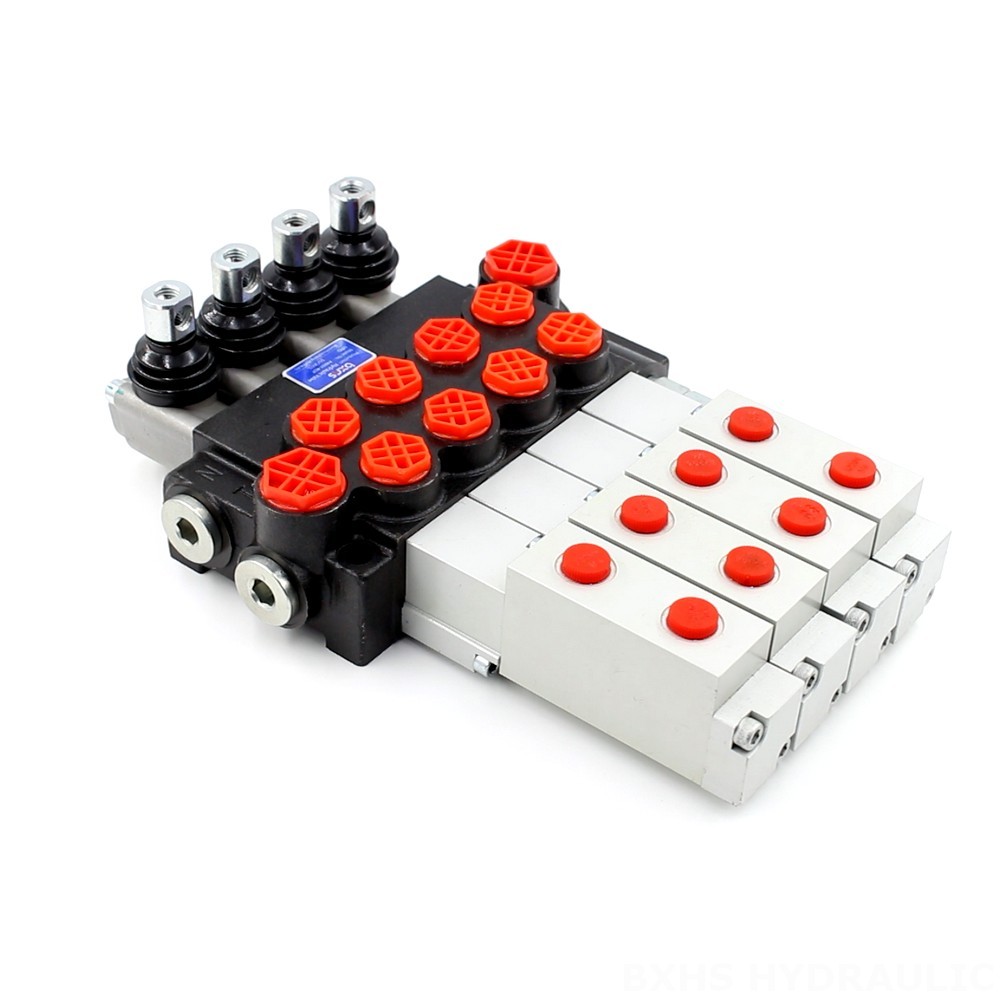

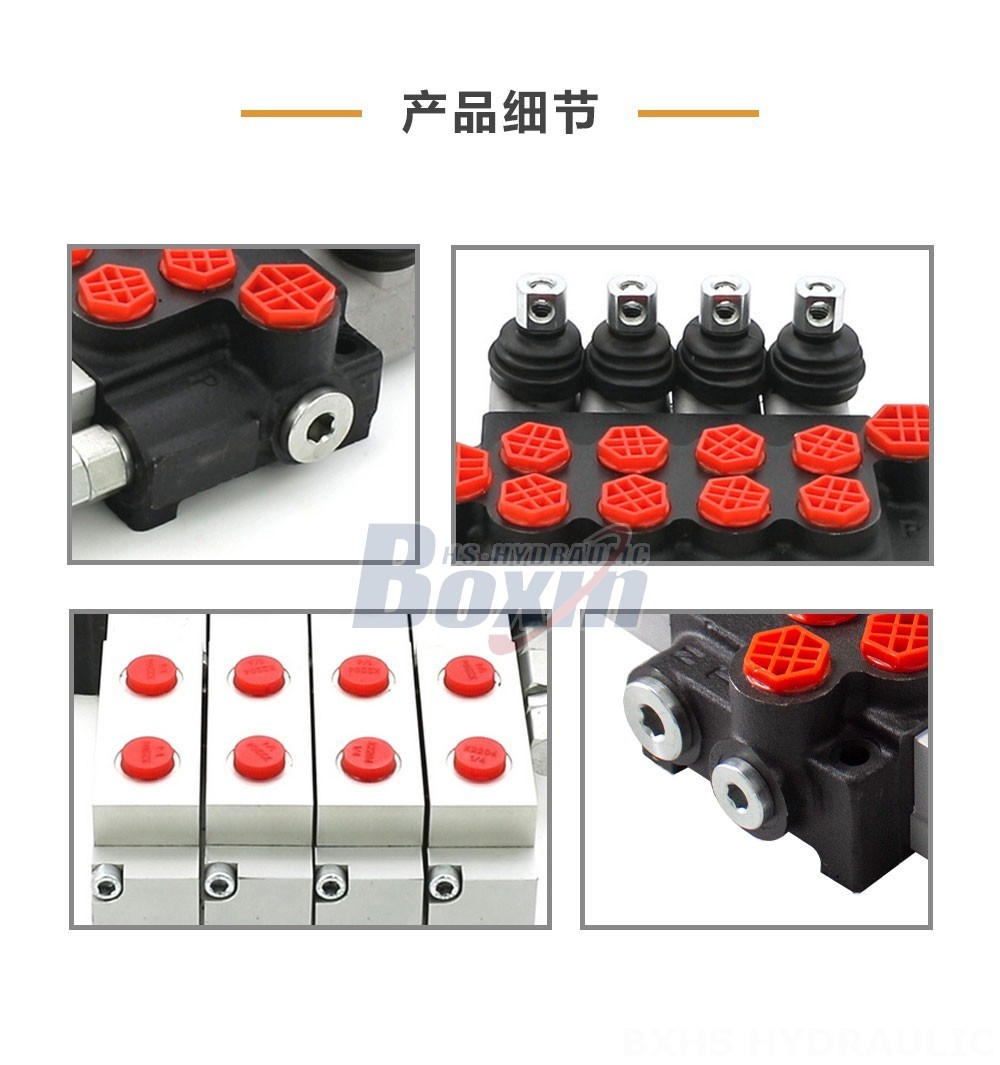

The P40 Hydraulic and Manual 4 Spool Monoblock Directional Valve is a robust and reliable valve designed for demanding applications in various industries, including material handling, construction, agriculture, and industrial vehicles.
| P40 Series Monoblock Directional Valve Parameters | |
|---|---|
| Control Method | Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick |
| Spool | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Max Pressure | 250 bar (3600 psi) |
| Inlet Port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Outlet Port | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Size | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Section | 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
| Structure Type | Monoblock valve |
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
**Product Highlights**
* 4 spool design for controlling up to 4 hydraulic functions
* Monoblock construction for compact size and durability
* Rated flow of 40 L/min (10.5 US gpm) to meet the demands of high-flow applications
* Maximum pressure of 250 bar (3600 psi) for reliable operation in challenging conditions
* Wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various hydraulic fluids
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for use in extreme environments
**Applications**
The P40 Hydraulic and Manual 4 Spool Monoblock Directional Valve finds applications in a wide range of equipment, including:
* Telehandlers
* Forklifts
* All-terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Midi-excavators
* Mini-excavators
* Skid steer loaders
* Compact wheel loaders
**Benefits**
* Precise control of hydraulic functions
* Compact and robust design
* High flow capacity
* Reliable performance under demanding conditions
* Suitable for various hydraulic applications
