P40 Manual 3 Spool Monoblock Directional Valve

Rated Flow:40 L/min (10.5 US gpm)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:22*19*11

Netweight:6.30 kg

Availability: In Stock

  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic and Manual
  • Cable
  • Joystick
  • Solenoid and Joystick
943 Views are Looking for this Product

P40 Manual 3 Spool Monoblock Directional Valve detailed image

P40 Manual 3 Spool Monoblock Directional Valve detailed image

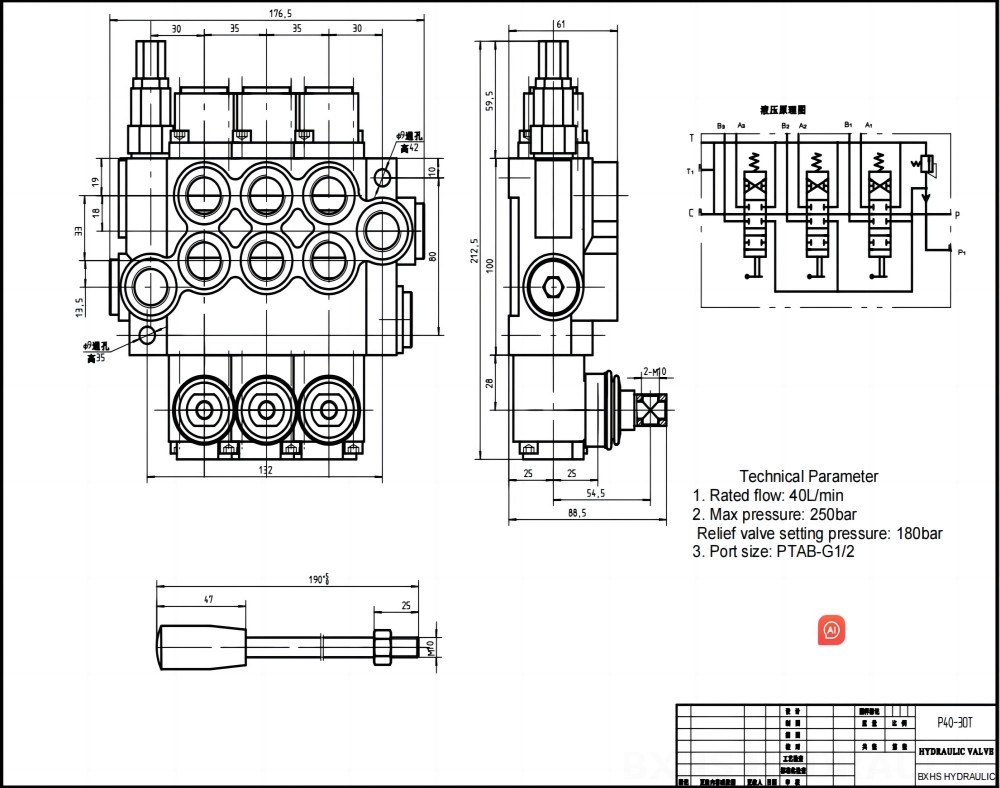

P40 Manual 3 Spool Monoblock Directional Valve drawing image

The P40 Manual 3 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of applications. With its robust construction and reliable operation, this valve is ideal for controlling the flow of hydraulic fluid in various industrial, mobile, and agricultural equipment.

Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure 250 bar (3600 psi)
Rated Flow 40 L/min (10.5 US gpm)
Structure Type Monoblock valve
Control Method Manual
Section 1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section

**Product Features and Benefits:**

* Manual control for precise and responsive operation
* 3 section design allows for independent control of multiple hydraulic circuits
* Monoblock construction provides a compact and durable design
* 40 L/min rated flow capacity handles high flow demands
* 250 bar max pressure rating ensures reliable performance in demanding applications
* 15 - 75 mm²/s operating viscosity range accommodates a wide range of hydraulic fluids
* -40°C to +80°C ambient temperature range for use in harsh environments
* 3 spool design provides flexibility and versatility

**Applications:**

This valve is commonly used in various applications, including:

* Material handling equipment
* Construction and earth moving equipment
* Agricultural machinery
* Industrial vehicles

P40 Manual 3 Spool Monoblock Directional Valve application image

P40 Manual 3 Spool Monoblock Directional Valve packing image

P40 Manual 3 Spool Monoblock Directional Valve company image

P40 Manual 3 Spool Monoblock Directional Valve certification image
