P40 Manual and Joystick 2 Spool Monoblock Directional Valve

Rated Flow:40 L/min (10.5 US gpm)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:22*17*12

Netweight:4.98 kg

Availability: In Stock

Description

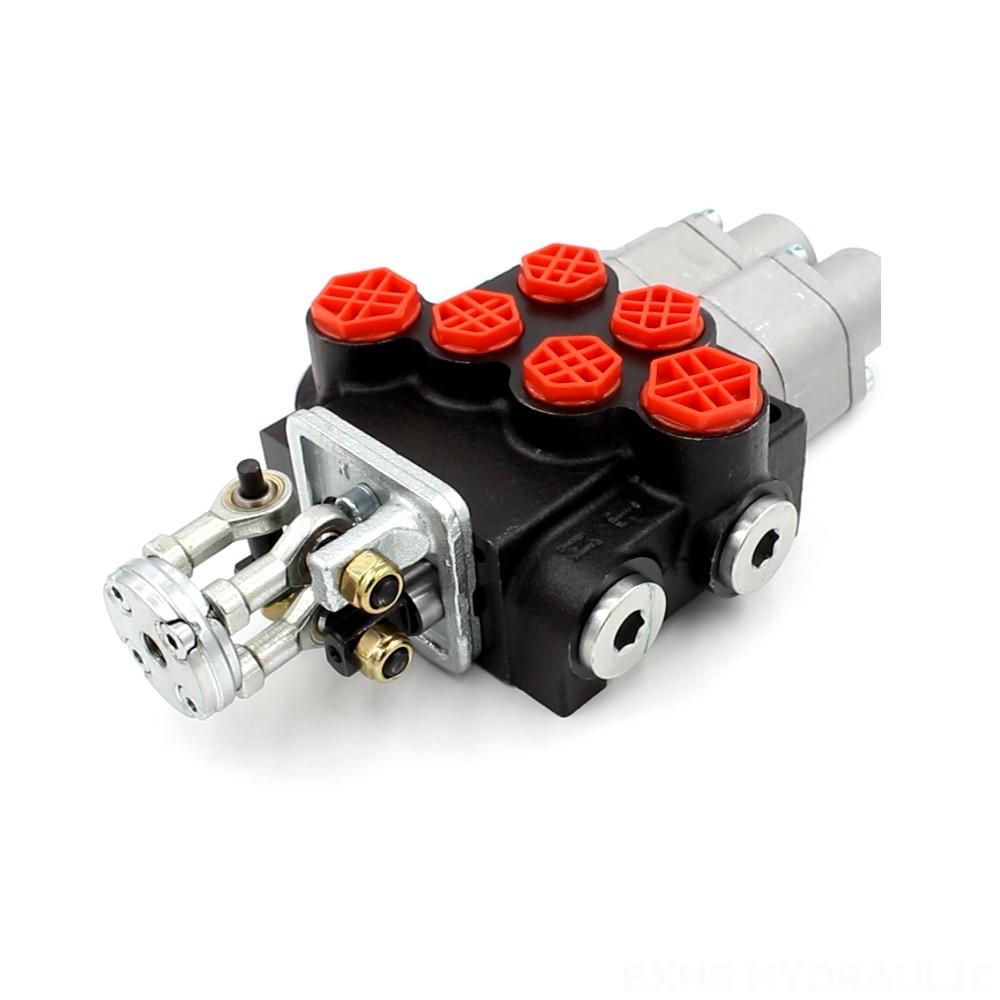

P40 Manual and Joystick 2 Spool Monoblock Directional Valve detailed image

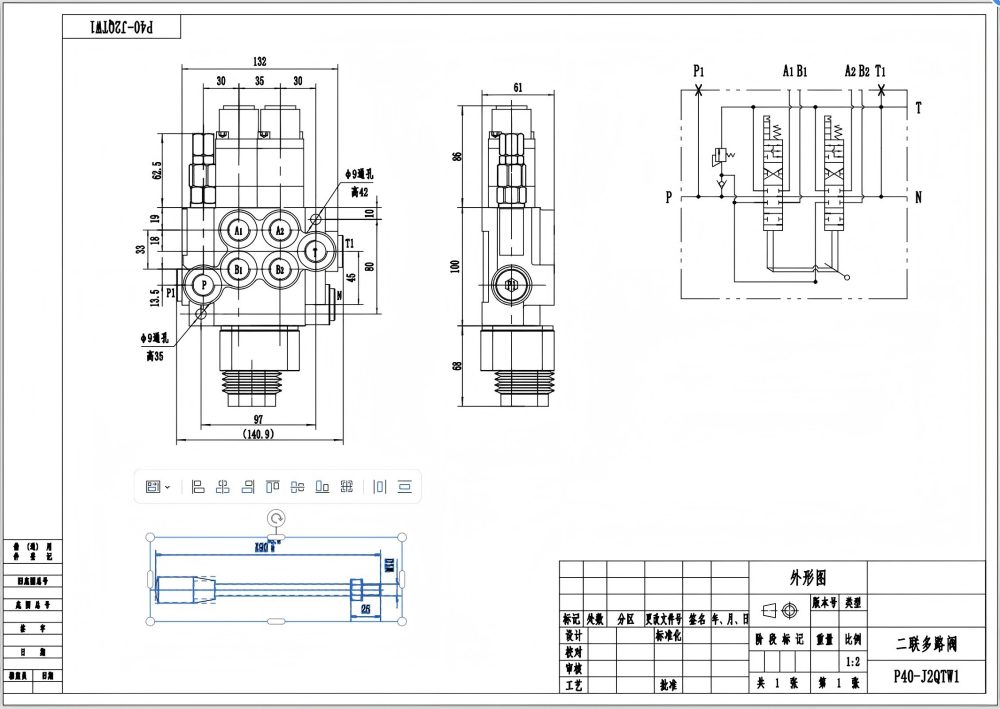

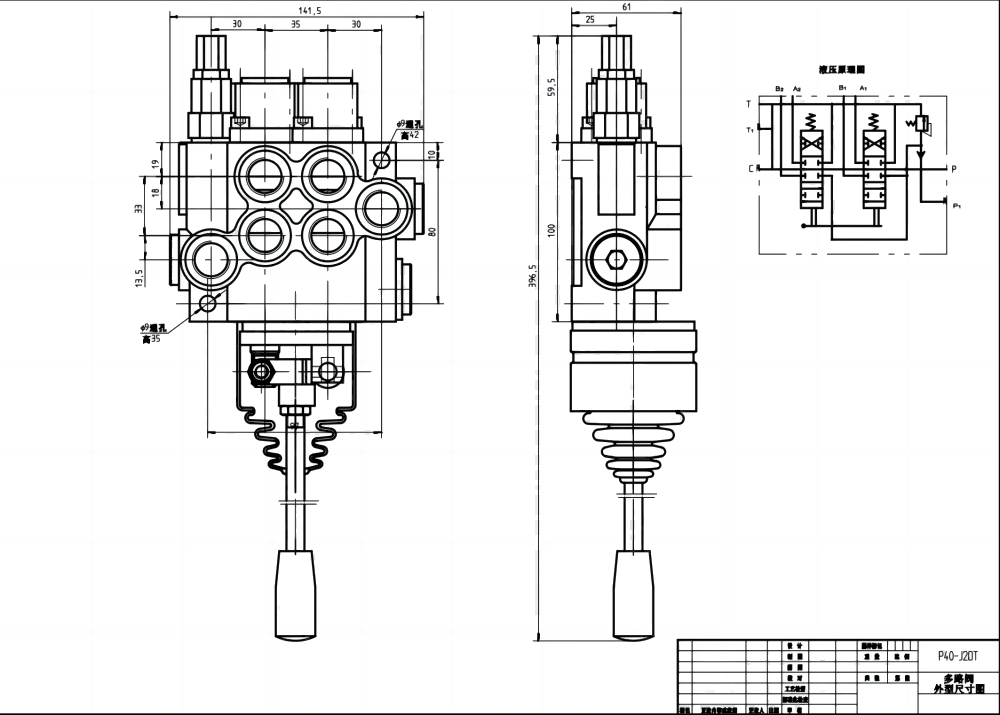

P40 Manual and Joystick 2 Spool Monoblock Directional Valve drawing image

The P40 Manual and Joystick 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it provides precise control over fluid flow and direction. Its compact monoblock design ensures durability and reliability, while its manual and joystick control options offer versatility and ease of operation.

Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure	250 bar (3600 psi)
Rated Flow	40 L/min (10.5 US gpm)
Structure Type	Monoblock valve
Control Method	Manual and Joystick
Section	1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section

**Product Features and Benefits:**

- Rated flow of 40 L/min (10.5 US gpm) for efficient flow control
- Maximum pressure of 250 bar (3600 psi) for reliable operation in high-pressure systems
- Manual and joystick control options provide flexibility and ease of operation
- Monoblock design for increased durability and reduced leakage
- Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various fluids
- Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for use in extreme temperature conditions

**Applications:**

- Material handling equipment
- Construction and earth moving machinery
- Agricultural machinery
- Industrial vehicles

P40 Manual and Joystick 2 Spool Monoblock Directional Valve application image
