P40 Manual and Joystick 3 Spool Monoblock Directional Valve

Rated Flow:40 L/min (10.5 US gpm)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:23*20*12

Netweight:5.95 kg

Availability: In Stock

  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic and Manual
  • Cable
  • Joystick
  • Solenoid and Joystick
233 Views are Looking for this Product

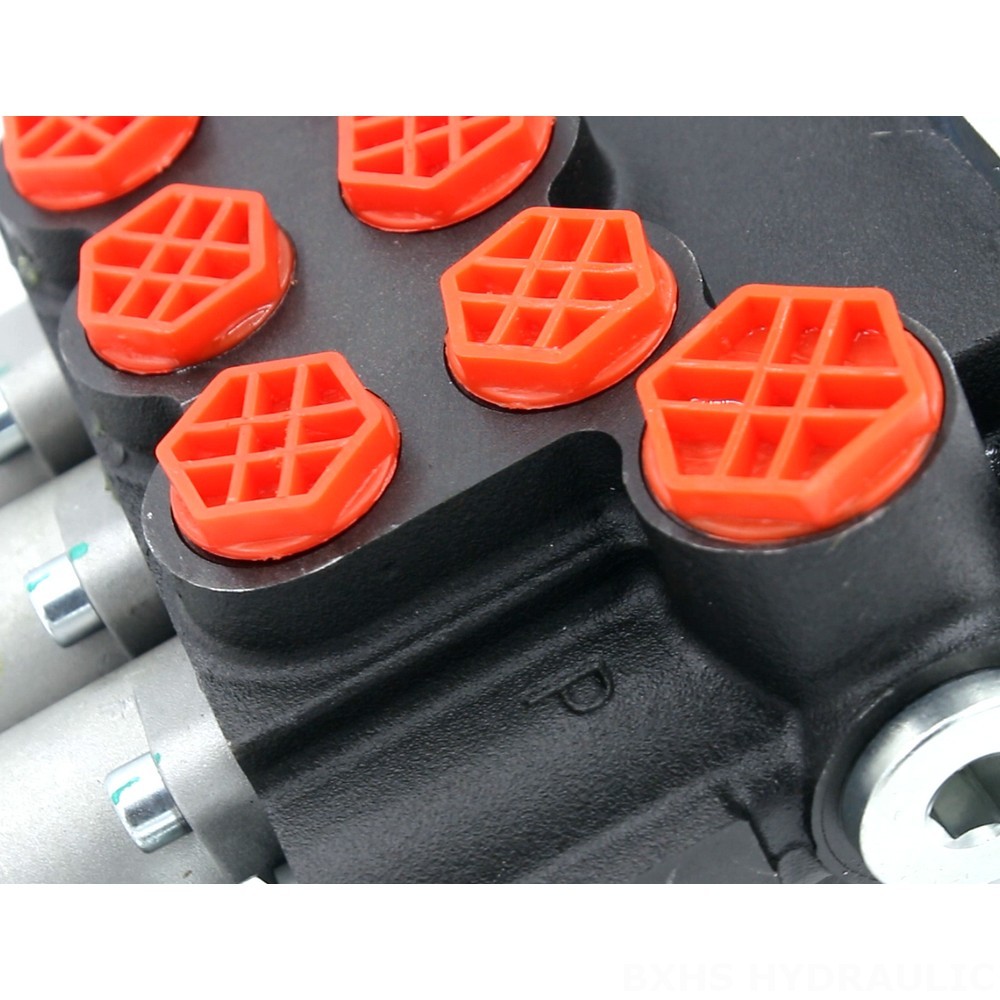

P40 Manual and Joystick 3 Spool Monoblock Directional Valve detailed image

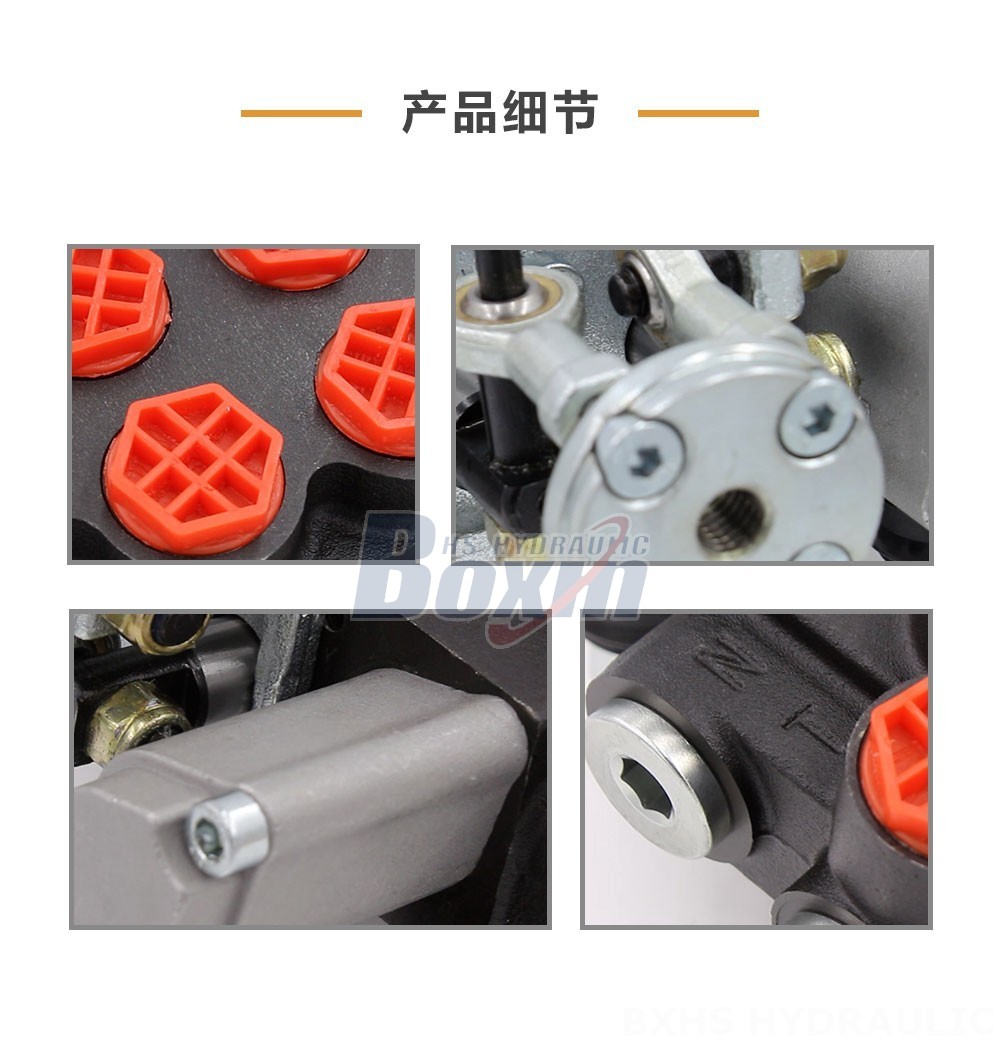

P40 Manual and Joystick 3 Spool Monoblock Directional Valve detailed image

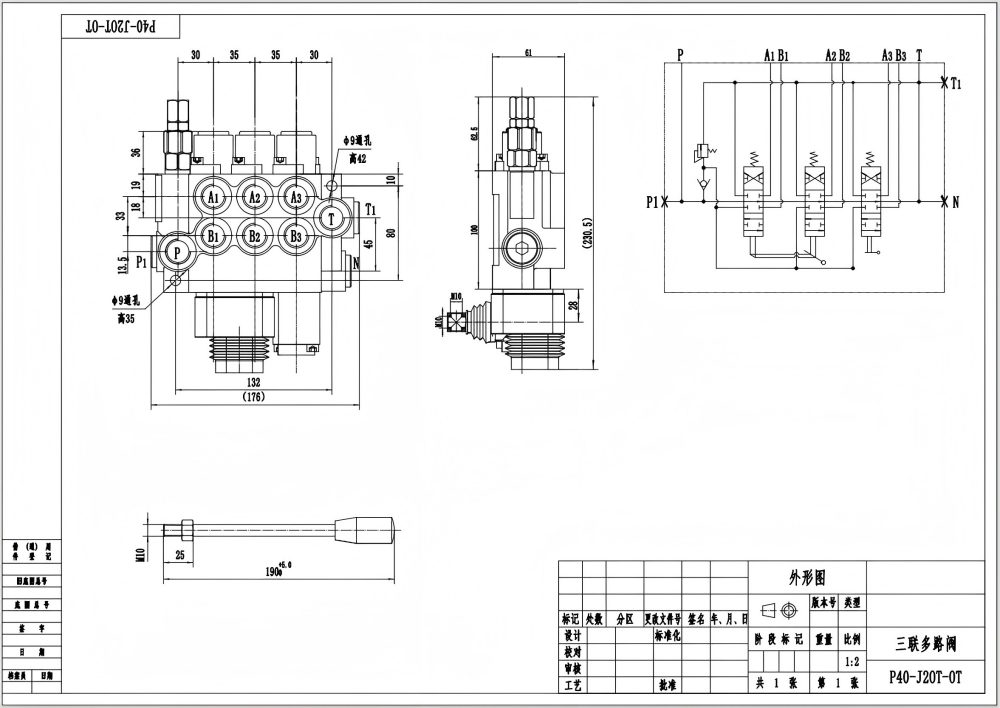

P40 Manual and Joystick 3 Spool Monoblock Directional Valve drawing image

The P40 Manual and Joystick 3 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications in various industries. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it offers reliable and efficient flow control. Its versatile manual and joystick control options make it suitable for precise operation in different scenarios.

Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure 250 bar (3600 psi)
Rated Flow 40 L/min (10.5 US gpm)
Structure Type Monoblock valve
Control Method Manual and Joystick
Section 1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section

**Product Features and Benefits:**

* Manual and joystick control for precise and versatile operation
* 3 spool design for independent control of multiple hydraulic circuits
* Monoblock construction for compact size and reduced leakage
* Rated flow of 40 L/min for efficient performance
* Maximum pressure of 250 bar for demanding applications
* Operating viscosity range of 15 - 75 mm²/s for compatibility with various hydraulic fluids
* Ambient temperature range of -40°C to +80°C for operation in diverse environments

**Applications:**

The P40 Manual and Joystick 3 Spool Monoblock Directional Valve is widely used in various industries, including:

* Material handling equipment (forklifts, telehandlers, stackers)
* Construction machinery (excavators, loaders, cranes)
* Agricultural machinery (tractors, harvesters, balers)
* Industrial vehicles (sweepers, waste compactors, hook-loaders)
