P40 Valve: Manual and Joystick Operation | Engineered for Precision Control

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:22*23*12

Netweight:7.80 kg

Availability: In Stock

Description

P40 Valve: Manual and Joystick Operation | Engineered for Precision Control detailed image

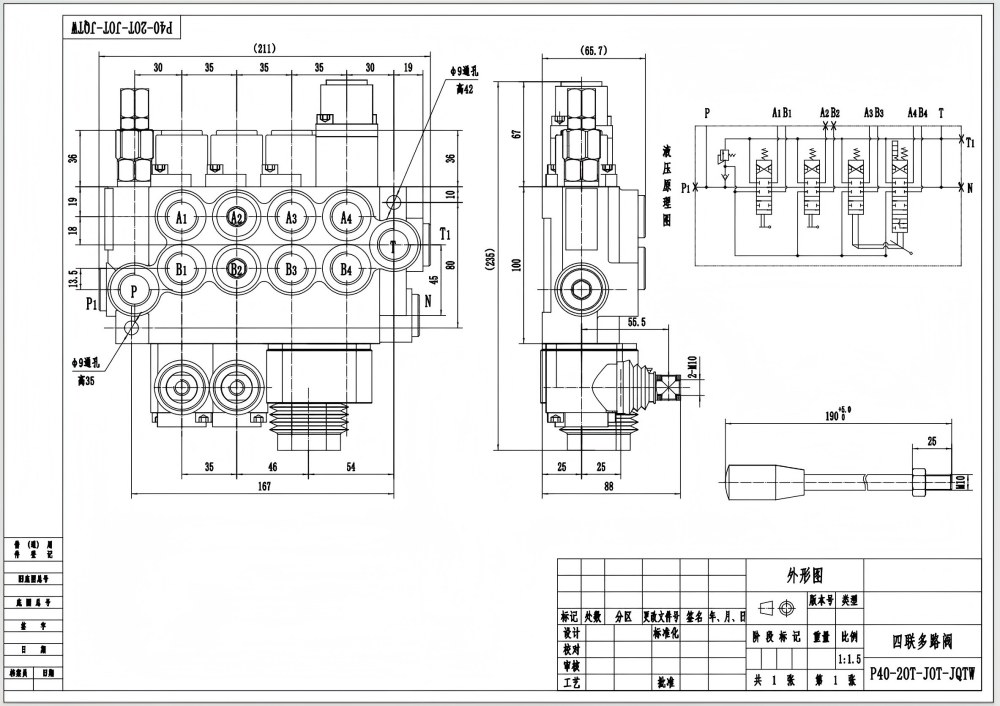

P40 Valve: Manual and Joystick Operation | Engineered for Precision Control drawing image

This product is a P40 Valve designed for precision control with manual and joystick operation. As a monoblock valve with a 4-section structure, it offers a rated flow of 40 L/min, a maximum pressure of 250 bar, and an operating viscosity range of 15 - 75 mm²/s. It is designed for applications in material handling, construction and earth moving, agriculture, and industrial vehicles.

Rated Flow	40 L/min (10.5 US gpm)
Max Pressure	250 bar (3600 psi)
Inlet Port	G3/8,G1/2,M18×1.5,M22×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Outlet Port	G3/8,G1/2,M18×1.5,M22×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Port Size	G3/8,G1/2,M18×1.5,SAE 8,SAE 10,3/8 NPT,1/2 NPT
Section	1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section
Structure Type	Monoblock valve
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)

The P40 Valve features a 4-spool design and is part of the P40 Series. It is suitable for use in various equipment models, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, and mini-excavators. The valve's operating temperature range extends from -40°C to +80°C, making it suitable for various operating conditions. With its durable construction and reliable performance, the P40 Valve ensures efficient and precise control in hydraulic systems.

P40 Valve: Manual and Joystick Operation | Engineered for Precision Control application image
