P40 Monoblock Directional Valve | Factory Direct Supply & Customization Available

Control Method:Manual

Spool:1 Spool

Rated Flow:40 L/min (10.5 US gpm)

Max Pressure:250 bar (3600 psi)

Inlet Port:G1/2

Outlet Port:G1/2

Port Size:G3/8

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Packagingsize:23*16*11

Grossweight:3.00 kg

Availability: In Stock

671 Views are Looking for this Product

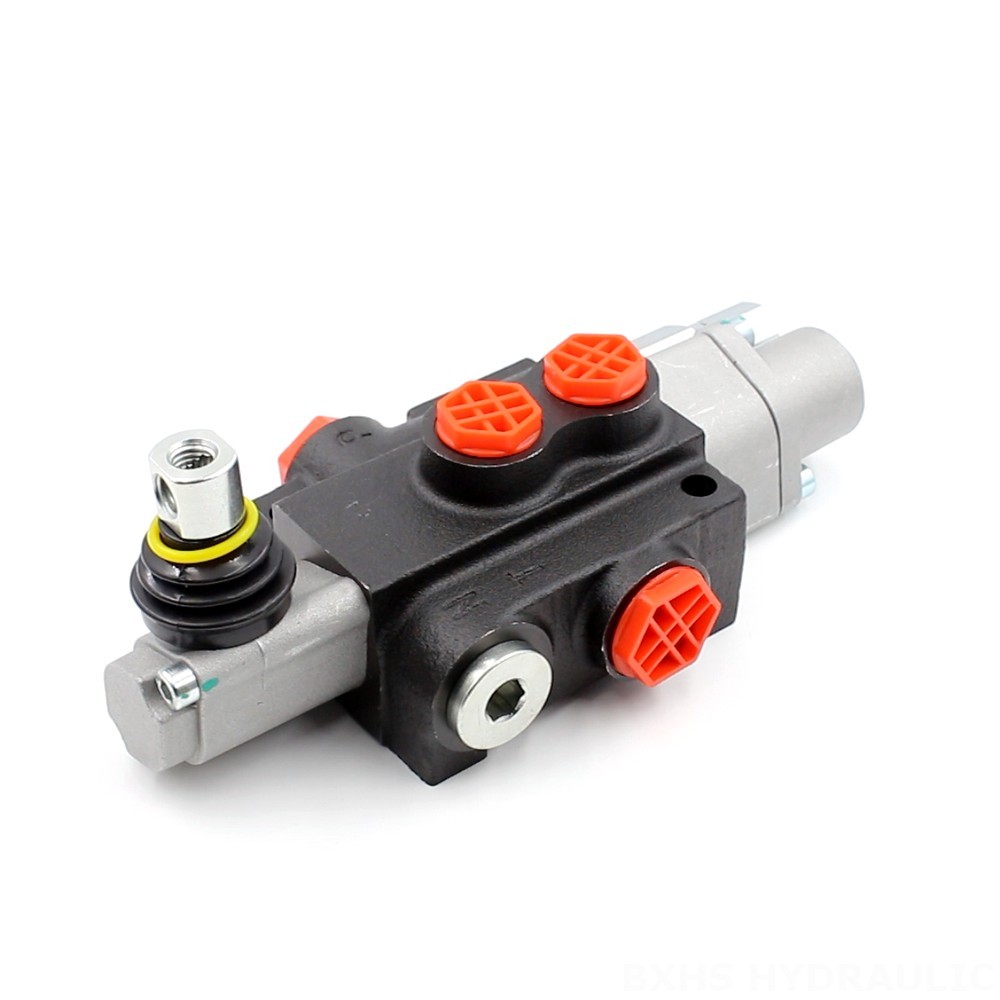

P40 Monoblock Directional Valve | Factory Direct Supply & Customization Available detailed image

P40 Monoblock Directional Valve | Factory Direct Supply & Customization Available detailed image

P40 Monoblock Directional Valve | Factory Direct Supply & Customization Available drawing image

The P40 Monoblock Directional Valve is a manually operated, 1-section valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. It is designed for use in a variety of applications including material handling, construction and earth moving, agriculture, and industrial vehicles.

P40 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 250 bar (3600 psi)
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

The P40 Monoblock Directional Valve is a high-performance valve that is manufactured to the highest standards. It is made from durable materials and is designed to withstand the demands of even the most challenging applications. The valve is also easy to install and maintain, making it a great choice for any hydraulic system.
