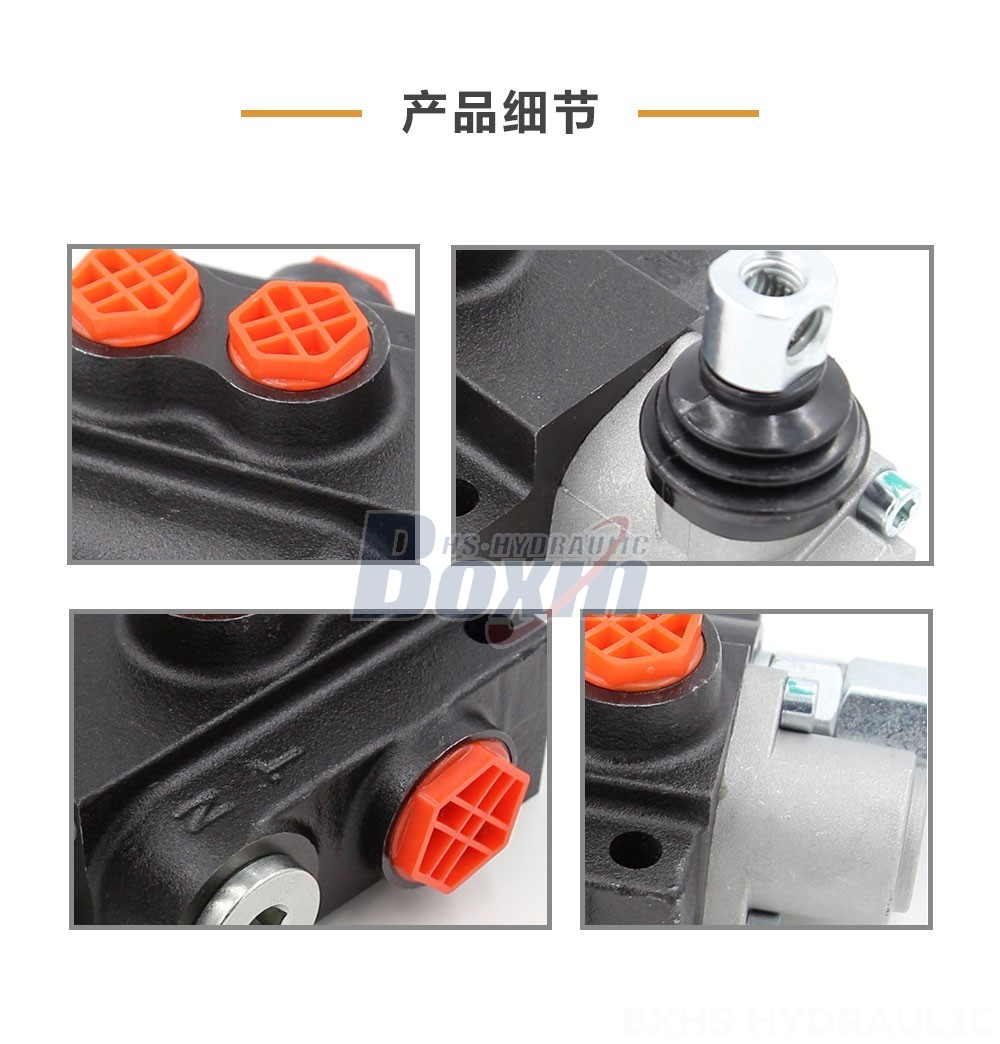

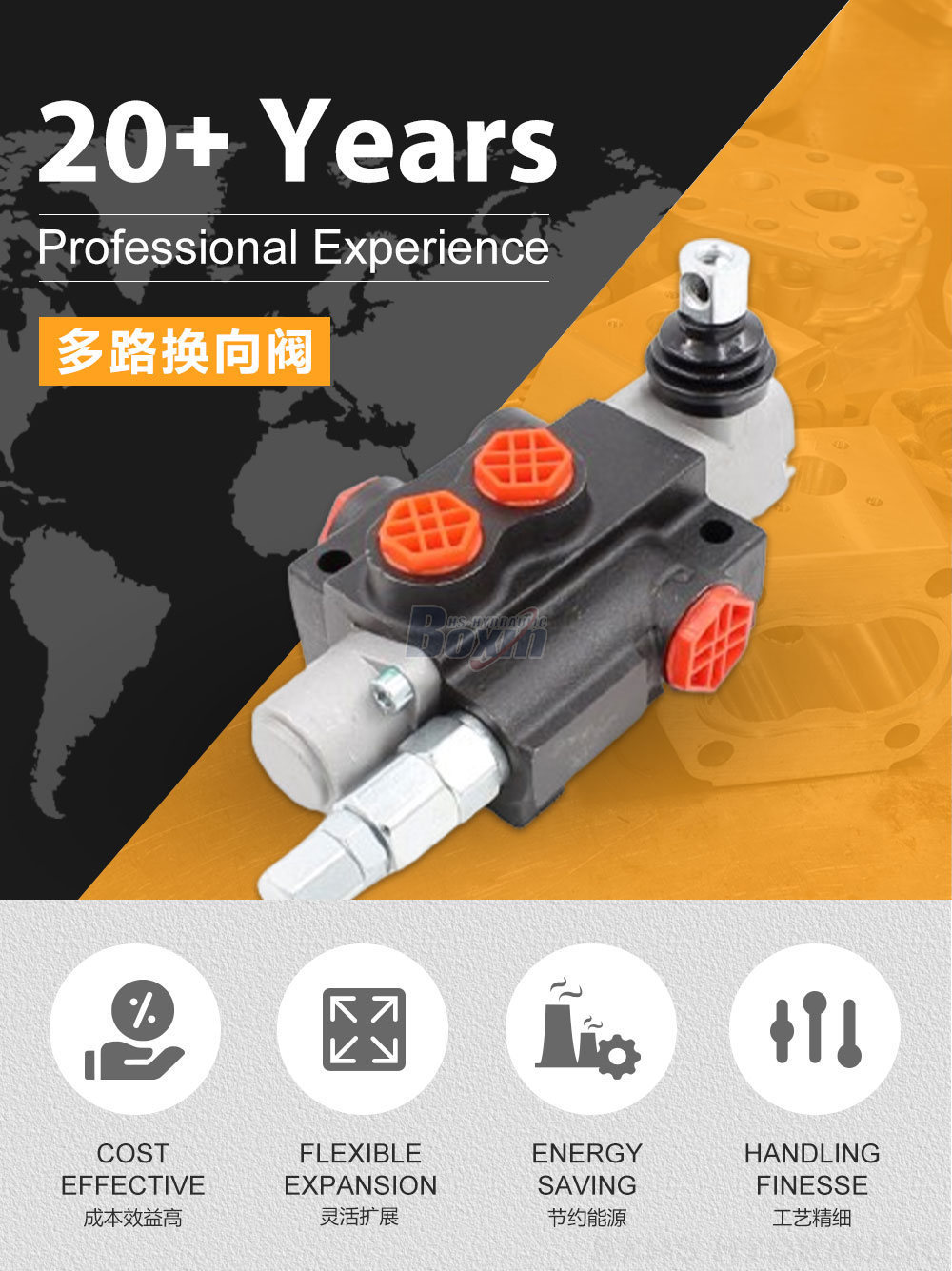

The P40-OT Manual 1 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for various industrial and mobile applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it provides precise and reliable control of hydraulic systems. Its monoblock construction ensures durability and compactness, making it suitable for applications where space is limited.
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
|---|---|
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Max Pressure | 250 bar (3600 psi) |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Structure Type | Monoblock valve |
| Control Method | Manual |
| Section | 1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section |
**Product Features:**
* Manual control for precise operation
* Monoblock design for durability and compactness
* Rated flow of 40 L/min for efficient performance
* Maximum pressure of 250 bar for demanding applications
* Operating viscosity range of 15 - 75 mm²/s for versatility
* Ambient temperature range of -40°C to +80°C for use in various environments
**Applications:**
The P40-OT Manual 1 Spool Monoblock Directional Valve is widely used in industrial and mobile applications, including:
* Material handling equipment (forklifts, telehandlers, cranes)
* Construction machinery (excavators, loaders, graders)
* Agricultural machinery (tractors, harvesters, sprayers)
* Industrial vehicles (sweepers, compactors, waste handlers)
