P40 Pneumatic 2 Spool Monoblock Directional Valve

Rated Flow:40 L/min (10.5 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:22*17*12

Netweight:5.80 kg

Availability: In Stock

Description

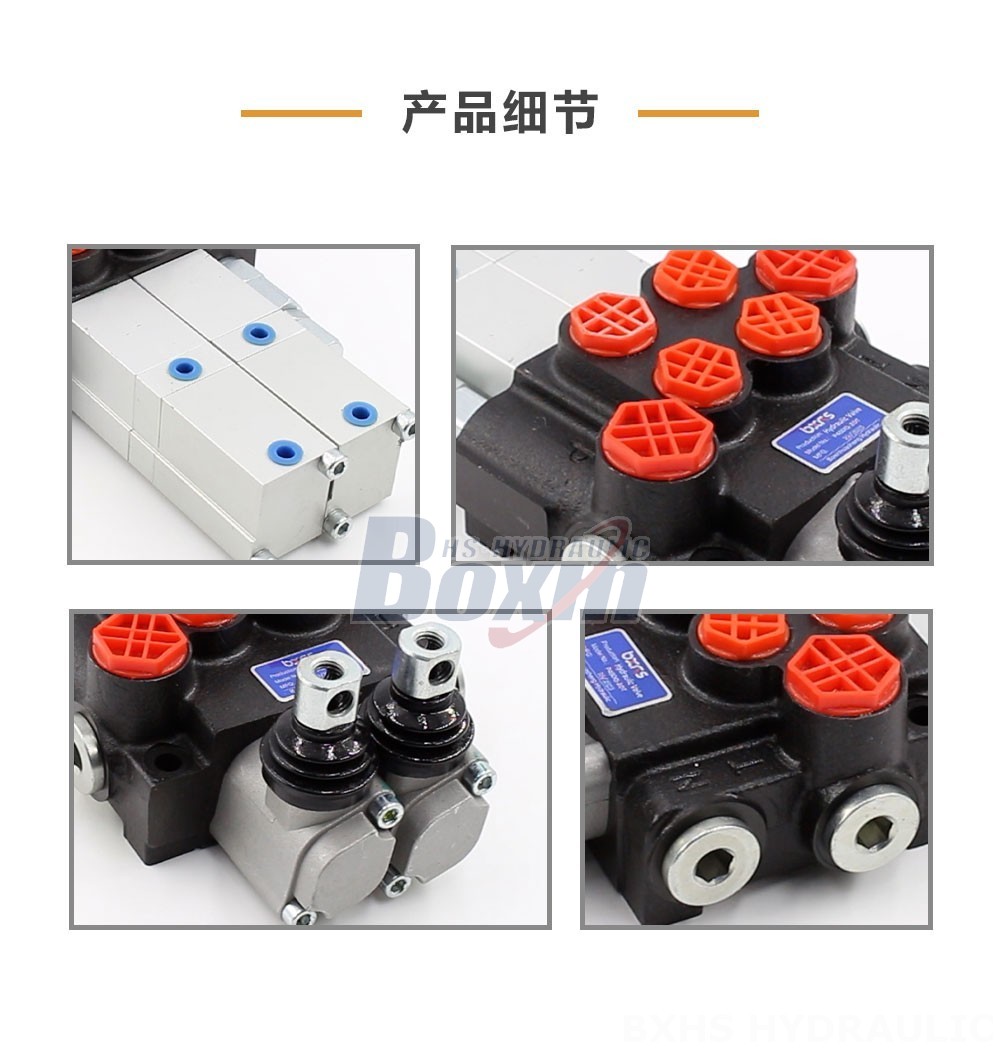

P40 Pneumatic 2 Spool Monoblock Directional Valve detailed image

P40 Pneumatic 2 Spool Monoblock Directional Valve drawing image

The P40 Pneumatic 2 Spool Monoblock Directional Valve is a high-performance valve designed for use in a wide range of hydraulic applications. It features a compact, monoblock design that is easy to install and maintain. The valve has a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). It is also suitable for use in applications with operating viscosities ranging from 15 to 75 mm²/s (15 cSt to 75 cSt) and ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F).

P40 Series Monoblock Directional Valve Parameters
Control Method	Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick
Spool	1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Rated Flow	40 L/min (10.5 US gpm)
Max Pressure	250 bar (3600 psi)
Inlet Port	G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Outlet Port	G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Size	G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Section	1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type	Monoblock valve
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)

The P40 Pneumatic 2 Spool Monoblock Directional Valve is a versatile valve that can be used in a variety of applications. Some of the most common applications include:

- Material handling
- Construction and earth moving
- Agriculture
- Industrial vehicles

The valve is also suitable for use in a variety of machine types, including:

- Telehandlers
- Forklifts
- All terrain cranes
- Stackers
- Aerial platforms
- Motor graders
- Midi-excavators
- Mini-excavators
- Skid steer loaders
- Compact wheel loaders

The P40 Pneumatic 2 Spool Monoblock Directional Valve is a high-quality valve that is built to last. It is made from durable materials and is backed by a comprehensive warranty.
