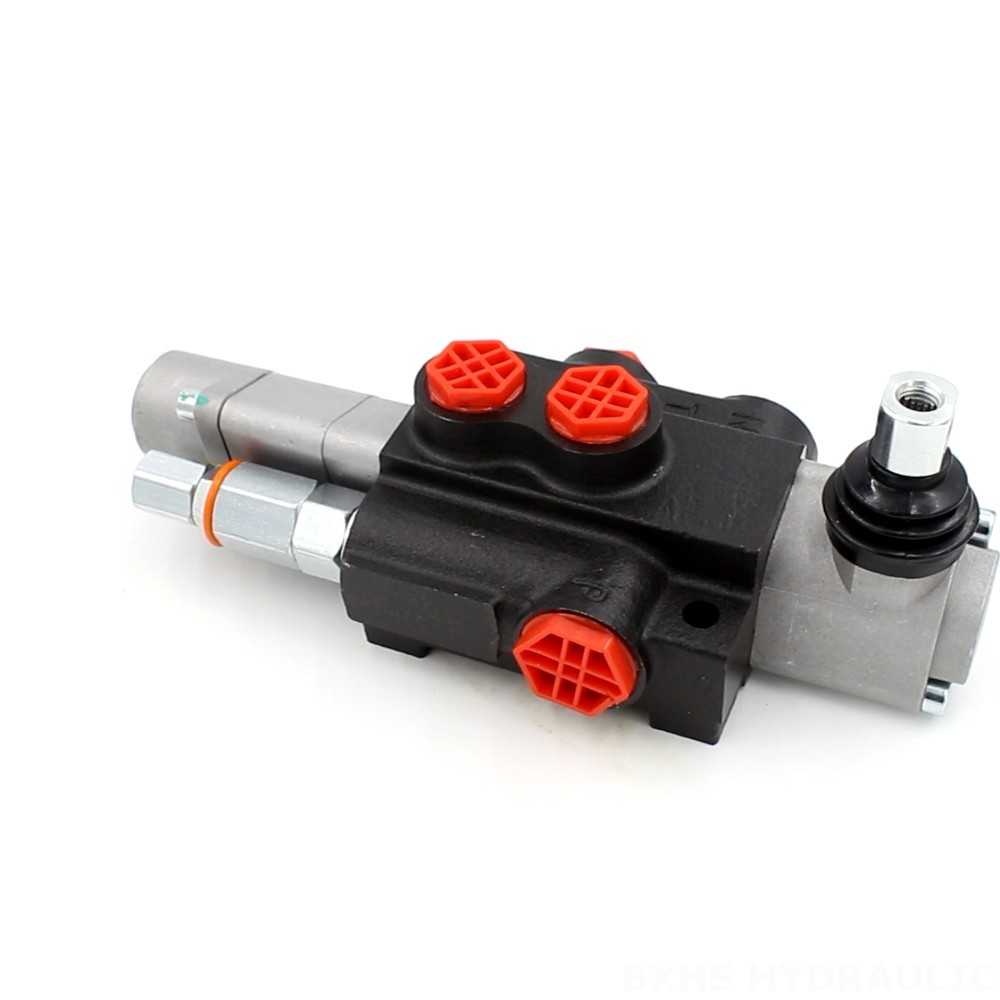

P40-QTW1 Manual 1 Spool Monoblock Directional Valve

Rated Flow:40 L/min (10.5 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:22*15*10

Netweight:2.97 kg

Availability: In Stock

Description

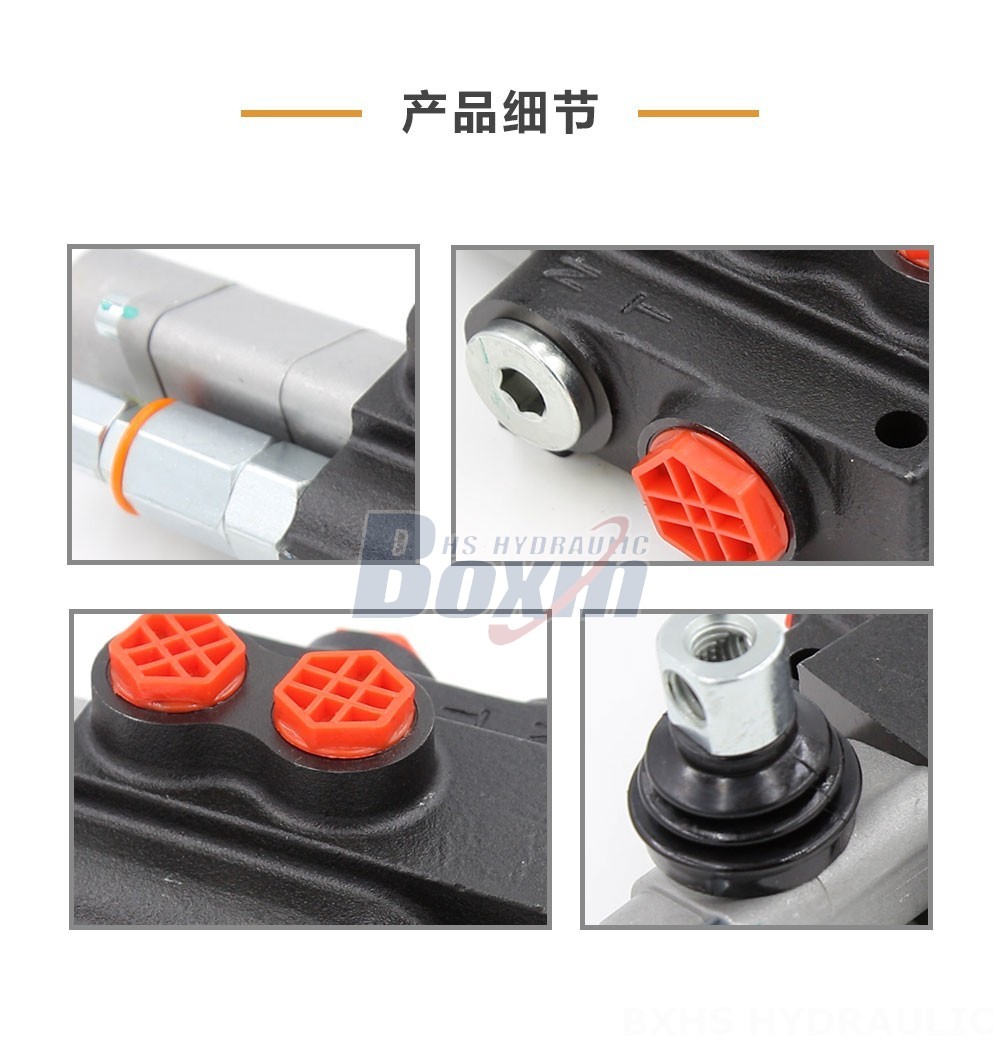

P40-QTW1 Manual 1 Spool Monoblock Directional Valve detailed image

P40-QTW1 Manual 1 Spool Monoblock Directional Valve drawing image

The P40-QTW1 Manual 1 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. With its rated flow of 40 L/min (10.5 US gpm) and maximum pressure of 250 bar (3600 psi), it provides reliable and efficient flow control in demanding hydraulic systems.

P40 Series Monoblock Directional Valve Parameters
Control Method	Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick
Spool	1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Rated Flow	40 L/min (10.5 US gpm)
Max Pressure	250 bar (3600 psi)
Inlet Port	G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Outlet Port	G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Size	G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Section	1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type	Monoblock valve
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)

**Product Features and Benefits:**

* Manual control for precise flow regulation
* Monoblock construction for durability and compact size
* Flow capacity (40 L/min) for demanding applications
* Pressure rating (250 bar) for use in heavy-duty systems
* Wide operating viscosity range (15 - 75 mm²/s) for compatibility with various hydraulic fluids
* Wide ambient temperature range (-40°C to +80°C) for operation in extreme environments

**Applications:**

* Mobile hydraulic systems in construction equipment
* Industrial machinery and equipment
* Agricultural machinery
* Material handling equipment
* Forestry equipment

P40-QTW1 Manual 1 Spool Monoblock Directional Valve application image
