P40 Solenoid 2 Spool Monoblock Directional Valve

Rated Flow:40 L/min (10.5 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:28*17*11

Netweight:6.00 kg

Availability: In Stock

  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • Manual and Joystick
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
1410 Views are Looking for this Product

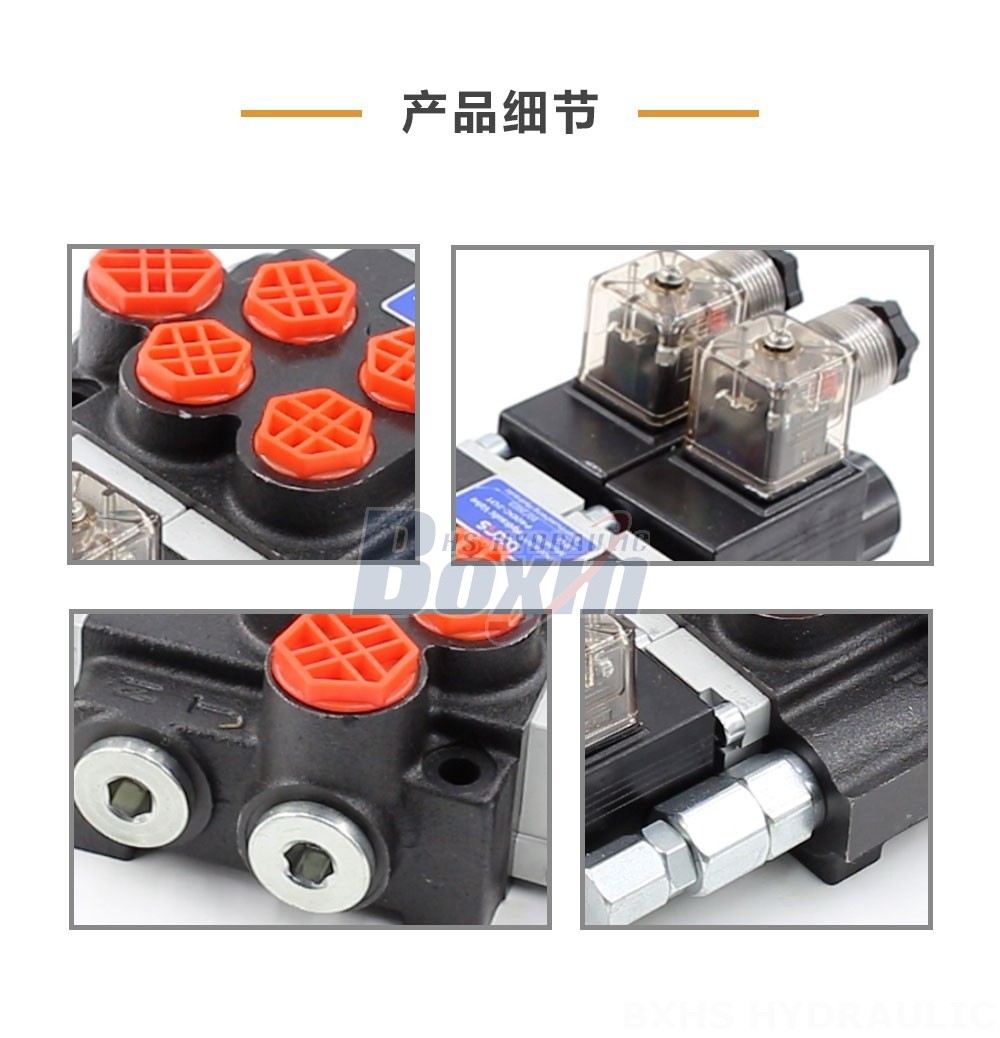

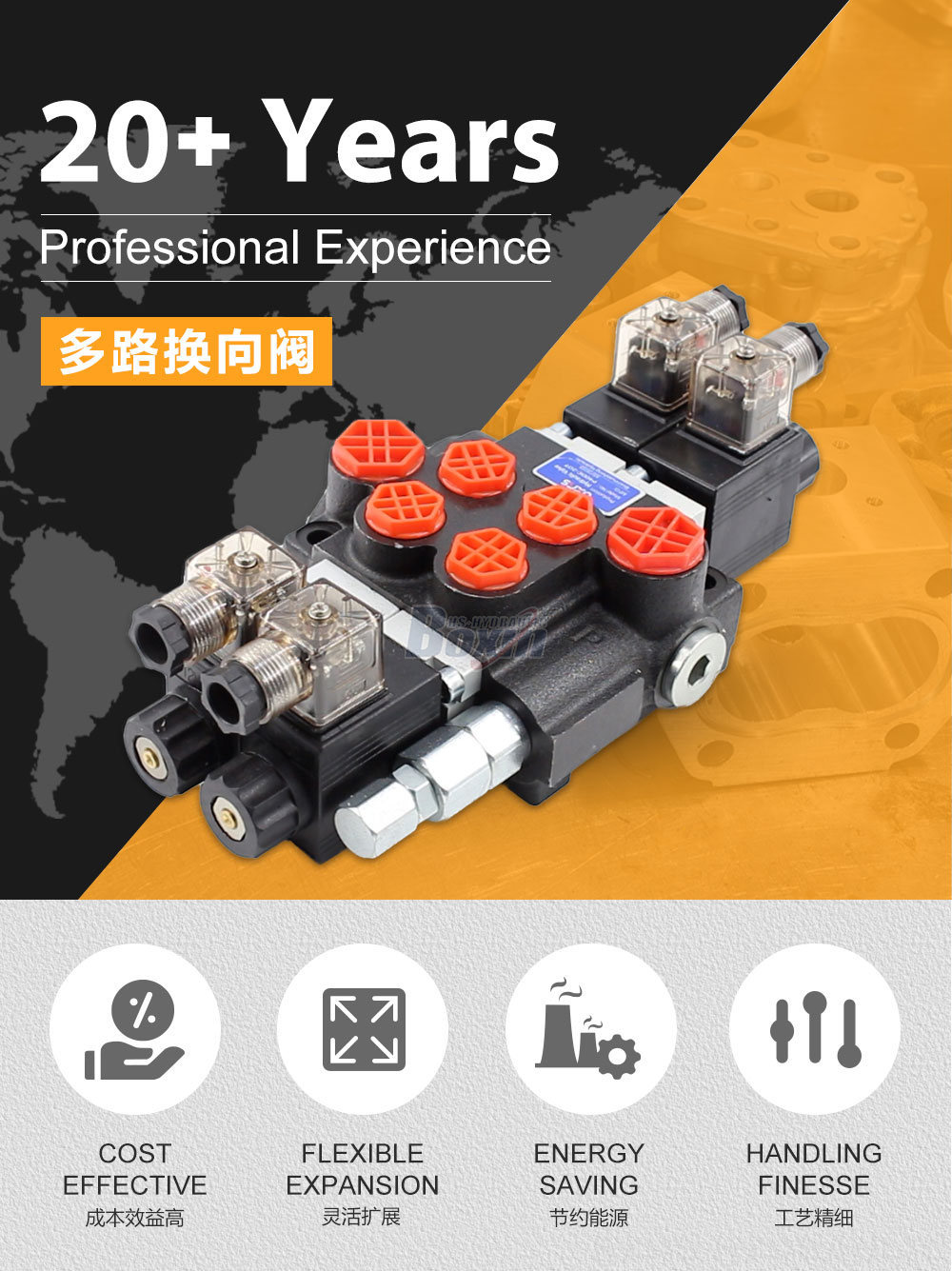

P40 Solenoid 2 Spool Monoblock Directional Valve detailed image

P40 Solenoid 2 Spool Monoblock Directional Valve detailed image

P40 Solenoid 2 Spool Monoblock Directional Valve drawing image

The P40 Solenoid 2 Spool Monoblock Directional Valve is a hydraulic valve designed for precise control of fluid flow in hydraulic systems. With its solenoid control, 2 section monoblock structure, 40 L/min rated flow, and 250 bar max pressure, this valve is ideal for various applications in material handling, construction, agriculture, and industrial vehicles.

P40 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 250 bar (3600 psi)
Inlet Port G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Outlet Port G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Size G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

**Product Features and Benefits:**

* Solenoid control for precise and responsive operation
* Monoblock construction for compact and durable design
* 2 spool design for independent control of two fluid paths
* Rated flow of 40 L/min for efficient system performance
* Max pressure of 250 bar for demanding applications
* Operating viscosity range of 15 - 75 mm²/s for compatibility with various fluids
* Wide ambient temperature range (-40°C to +80°C) for versatility in different environments

**Applications:**

* Material Handling: Forklifts, telehandlers, stackers, aerial platforms
* Construction and Earth Moving: Excavators, skid steer loaders, wheel loaders, backhoe loaders, dumpers
* Agriculture: Tractors, harvesters, balers, sprayers
* Industrial Vehicles: Sweepers, waste compactors, skip loaders, hook-loaders
