P40-U34 Manual 6 Spool Monoblock Directional Valve

Rated Flow:40 L/min (10.5 US gpm)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:31*22*12

Netweight:10.35 kg

Availability: In Stock

Description

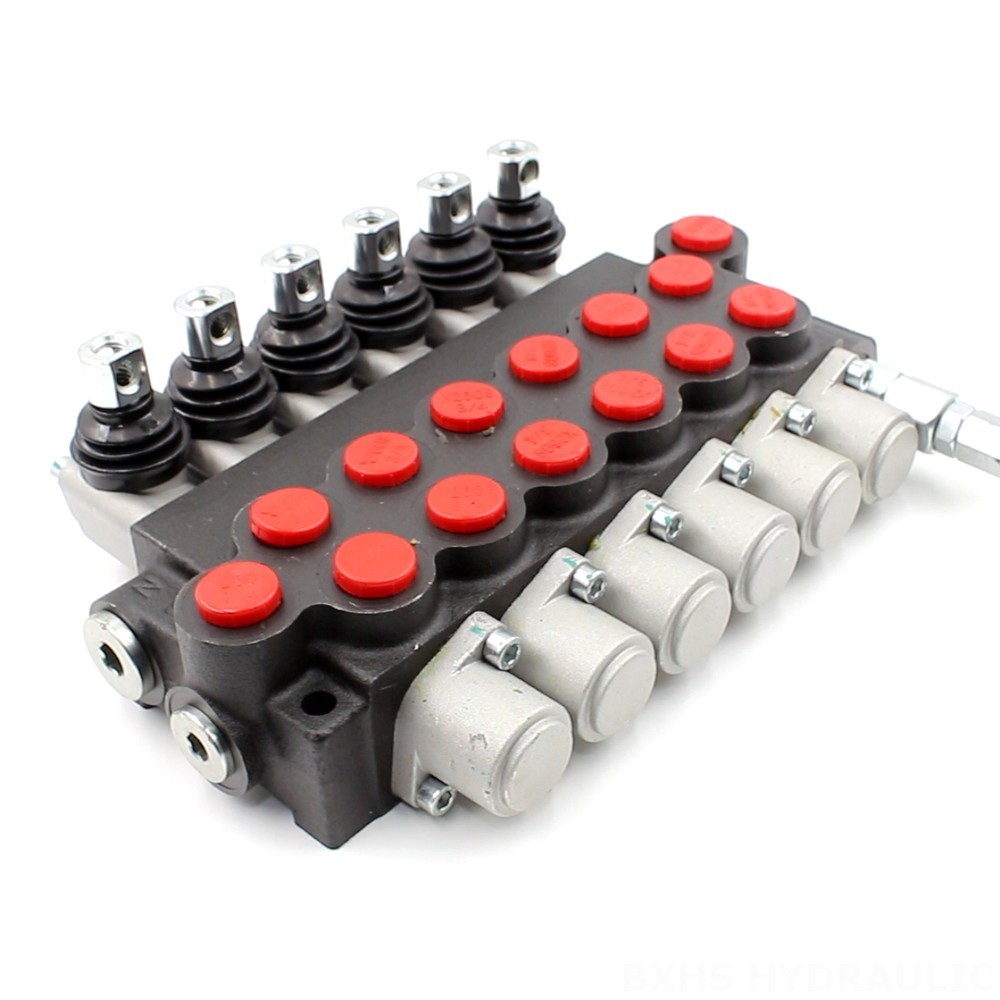

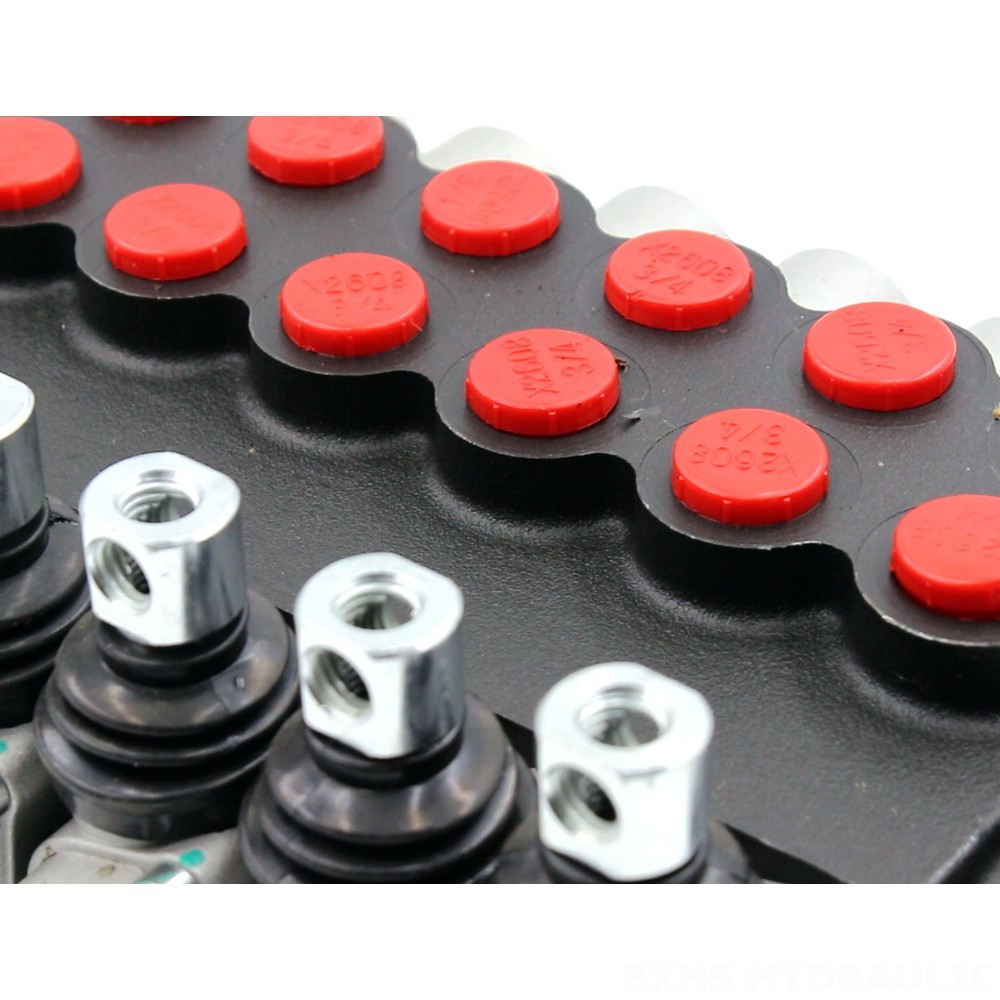

P40-U34 Manual 6 Spool Monoblock Directional Valve detailed image

P40-U34 Manual 6 Spool Monoblock Directional Valve drawing image

The P40-U34 Manual 6 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in demanding applications. With a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve provides reliable and efficient flow control. Its compact monoblock design ensures durability and leak-free operation, while the manual control allows for precise and responsive operation.

Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure	250 bar (3600 psi)
Rated Flow	40 L/min (10.5 US gpm)
Structure Type	Monoblock valve
Control Method	Manual
Section	1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section

**Product Features and Benefits:**

* Flow capacity (40 L/min) for demanding applications
* Pressure rating (250 bar) for use in heavy-duty systems
* Compact monoblock design for durability and leak-free operation
* Manual control for precise and responsive operation
* Wide operating viscosity range (15 - 75 mm²/s) for use with a variety of fluids
* Wide ambient temperature range (-40°C to +80°C) for use in harsh environments

**Applications:**

* Industrial vehicles (forklifts, telehandlers, skid steer loaders, etc.)
* Construction and earth moving equipment (excavators, cranes, graders, etc.)
* Agricultural machinery (tractors, harvesters, balers, etc.)

P40-U34 Manual 6 Spool Monoblock Directional Valve application image
