The P40-U34-OT Manual Valve is a high-performance, pressure-compensated flow control valve designed for demanding applications in material handling, construction, and agriculture.
| Ambient Temperature Range | -40°C to +80°C (-40°F to +176°F) |
|---|---|
| Operating Viscosity Range | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Max Pressure | 250 bar (3600 psi) |
| Rated Flow | 40 L/min (10.5 US gpm) |
| Structure Type | Monoblock valve |
| Section | 1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section |

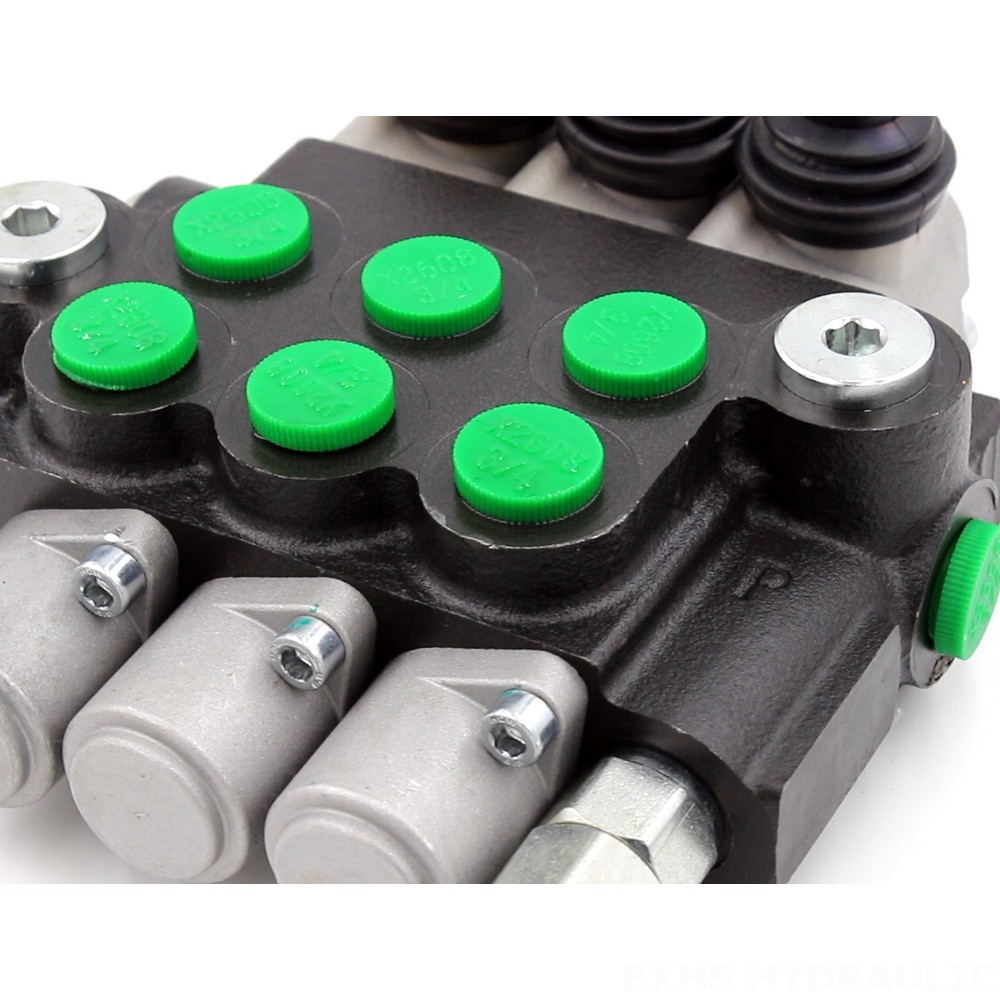

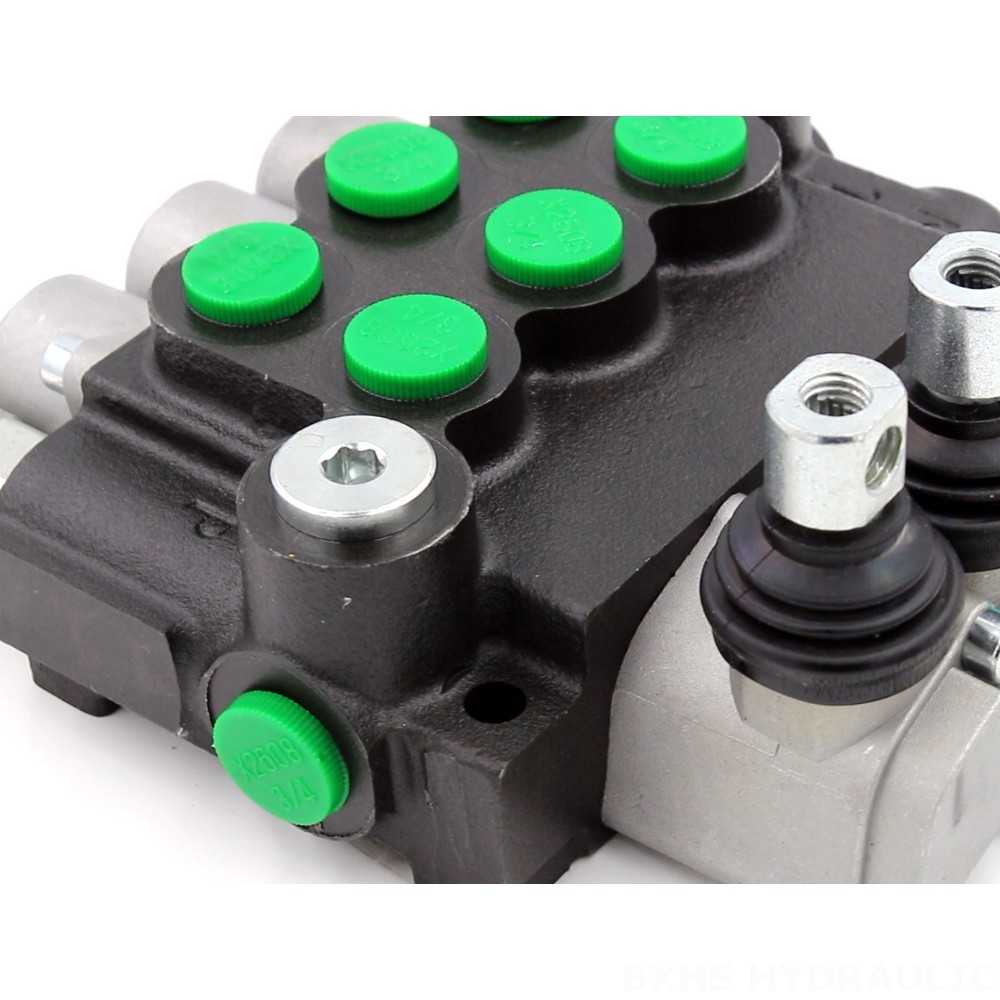

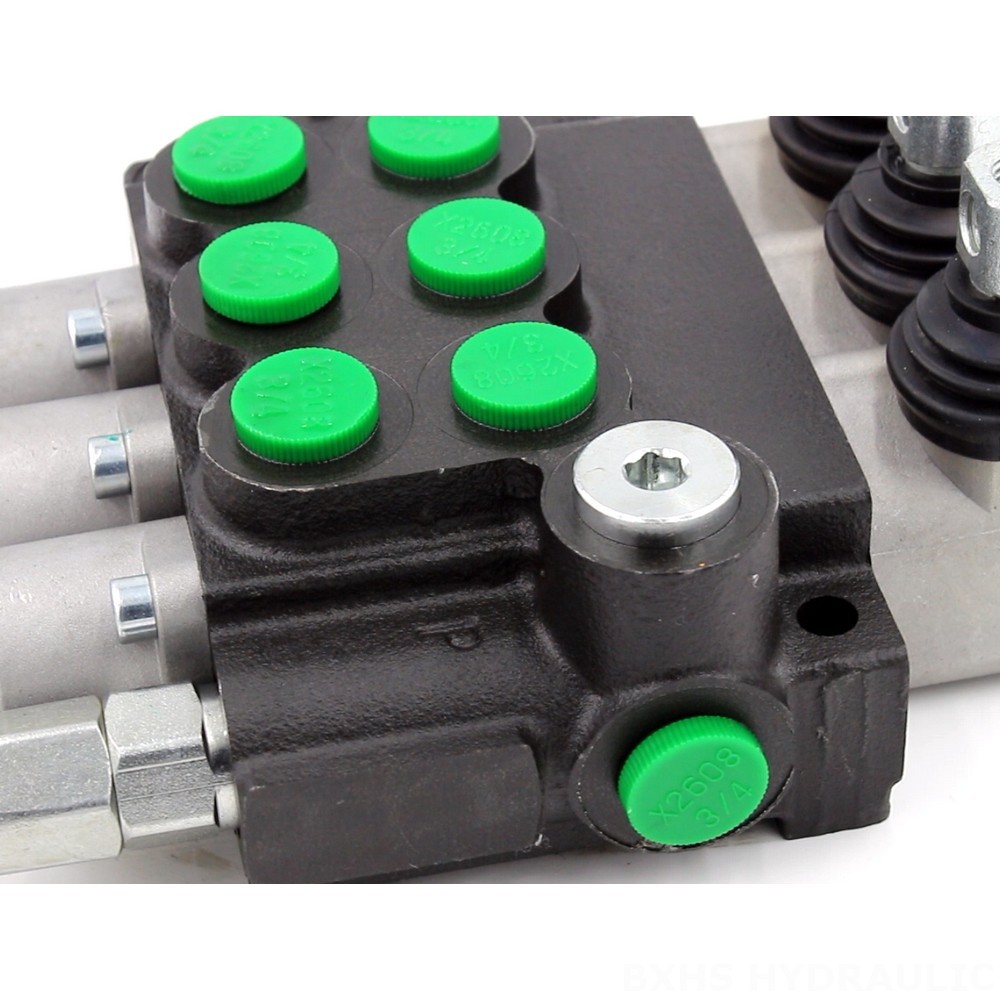

The P40-U34-OT Manual Valve is a 3-section monoblock valve featuring a 3-spool design. It offers a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). With an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F), this valve is suitable for various demanding applications. It is specifically designed for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders. The P40-U34-OT Manual Valve is available for factory direct purchase and customization options, ensuring it meets your specific requirements.
