P40-U34-U78 Manual 5 Spool Monoblock Directional Valve

Rated Flow:40 L/min (10.5 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:27*22*12

Netweight:9.30 kg

Availability: In Stock

  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • Manual and Joystick
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
676 Views are Looking for this Product

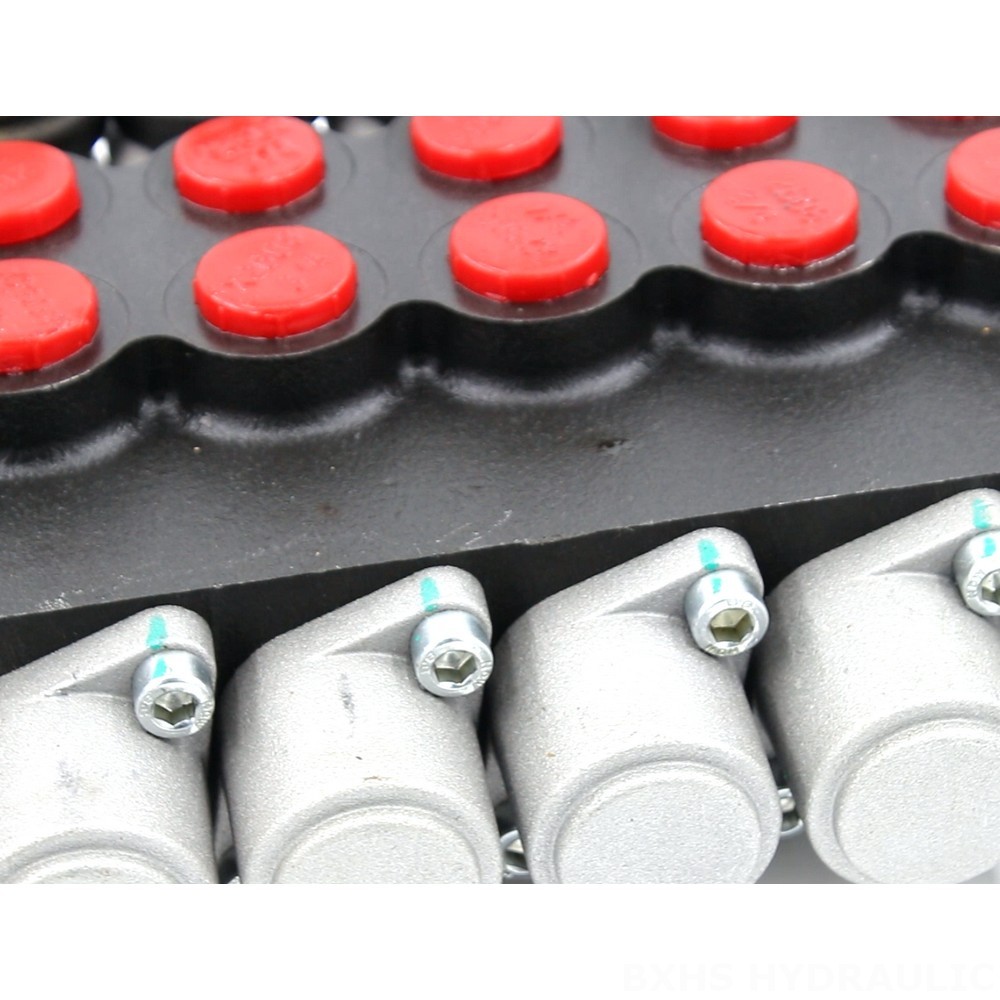

P40-U34-U78 Manual 5 Spool Monoblock Directional Valve detailed image

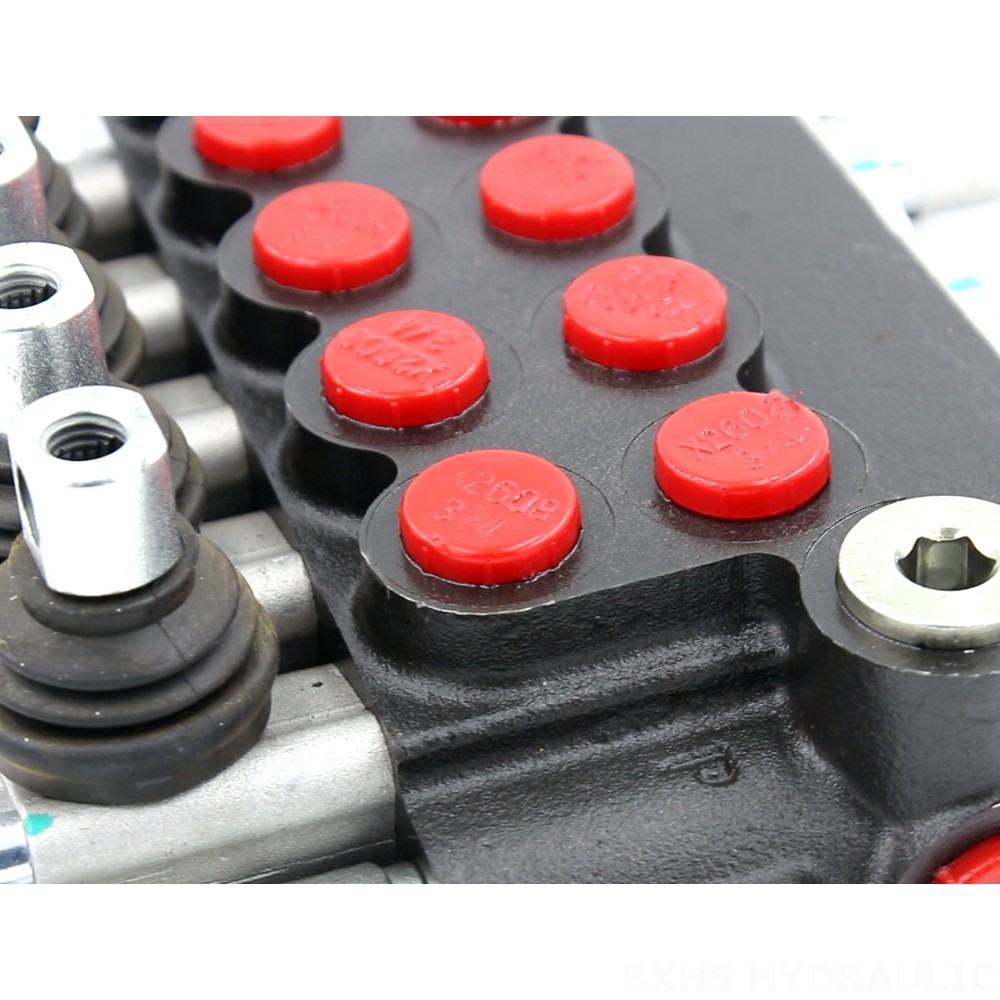

P40-U34-U78 Manual 5 Spool Monoblock Directional Valve detailed image

P40-U34-U78 Manual 5 Spool Monoblock Directional Valve drawing image

The P40-U34-U78 Manual 5 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of applications. It features a manual control with 5 sections, a rated flow of 40 L/min, and a maximum pressure of 250 bar. The valve has an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C. It is constructed with 5 spools and is suitable for use in various industries, including material handling, construction and earth moving, agriculture, and industrial vehicles.

P40 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 250 bar (3600 psi)
Inlet Port G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Outlet Port G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Size G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

**Product Features and Benefits:**

* Manual control with 5 sections
* Rated flow of 40 L/min
* Maximum pressure of 250 bar
* Operating viscosity range of 15 - 75 mm²/s
* Ambient temperature range of -40°C to +80°C
* Constructed with 5 spools
* Suitable for use in a wide range of applications

**Applications:**

* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles

**Applicable Machine Models:**

* Telehandlers
* Forklifts
* All terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Midi-excavators
* Mini-excavators
* Skid steer loaders
* Compact wheel loaders
