P40-U78 Manual 5 Spool Monoblock Directional Valve

Rated Flow:40 L/min (10.5 US gpm)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:27*22*12

Netweight:8.61 kg

Availability: In Stock

Description

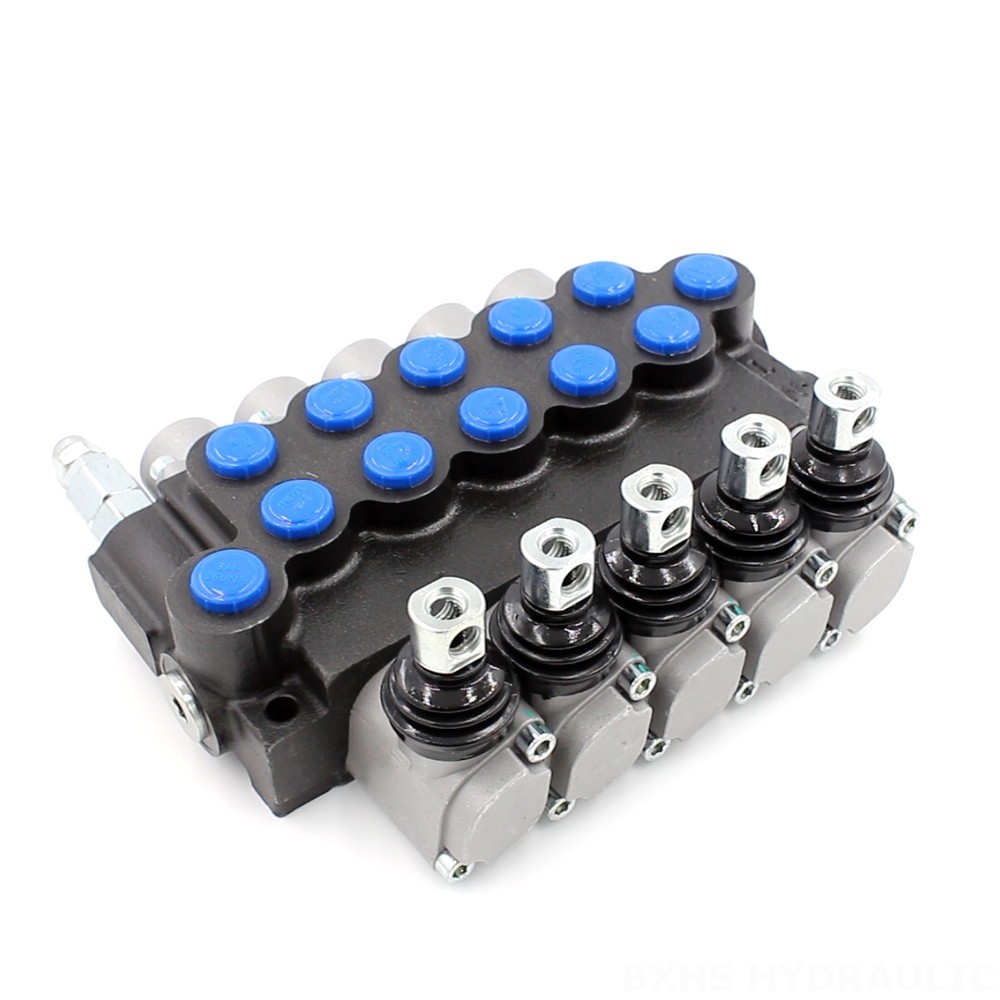

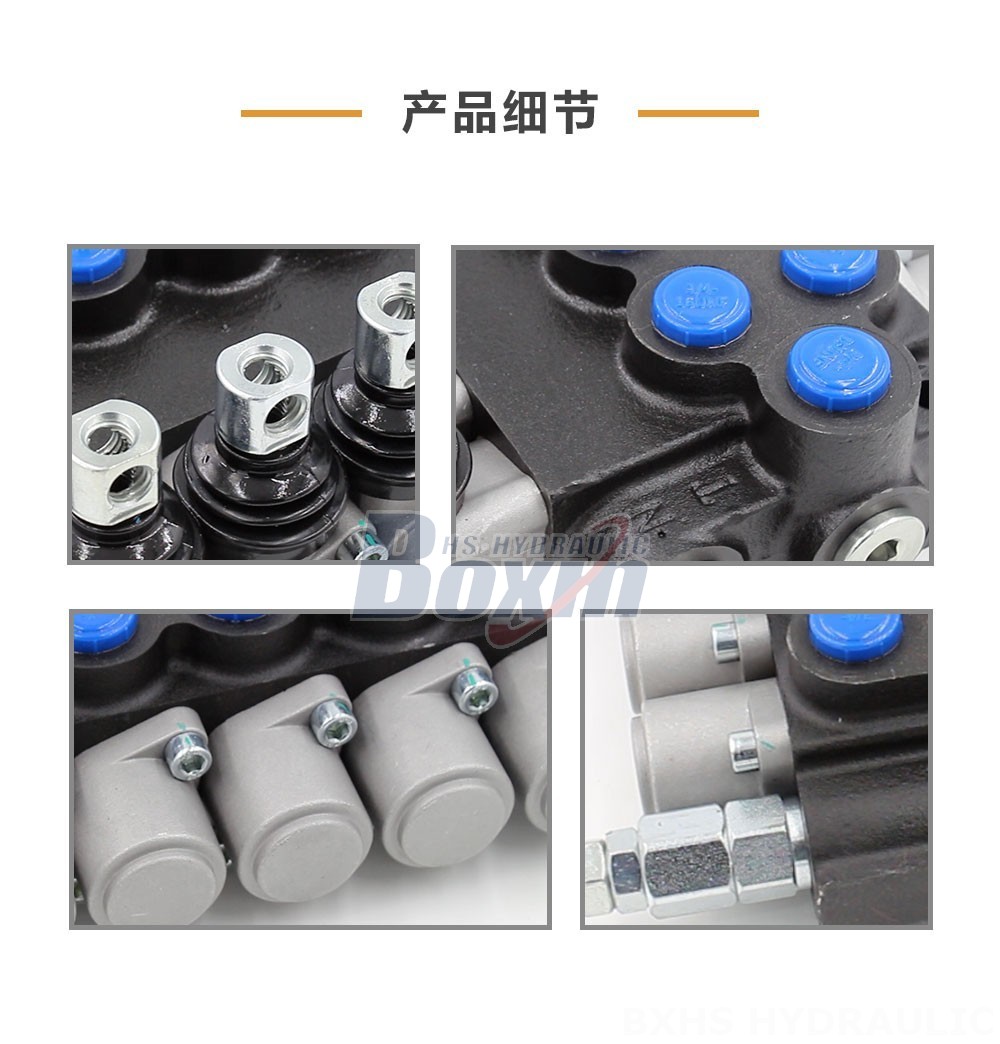

P40-U78 Manual 5 Spool Monoblock Directional Valve detailed image

P40-U78 Manual 5 Spool Monoblock Directional Valve drawing image

The P40-U78 manual 5 spool monoblock directional valve is a high-performance hydraulic valve designed for use in a wide range of industrial and mobile applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is capable of handling the most demanding hydraulic systems. The monoblock construction provides superior strength and durability, while the manual operation allows for precise control of fluid flow.

Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure	250 bar (3600 psi)
Rated Flow	40 L/min (10.5 US gpm)
Structure Type	Monoblock valve
Control Method	Manual
Section	1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section

**Product Features and Benefits:**

* Flow capacity of 40 L/min for efficient operation
* Maximum pressure of 250 bar for demanding applications
* Monoblock construction for superior strength and durability
* Manual operation for precise control of fluid flow
* Wide operating temperature range of -40°C to +80°C
* Compact design for easy installation and maintenance

**Applications:**

The P40-U78 manual 5 spool monoblock directional valve is suitable for use in a variety of industrial and mobile applications, including:

* Material handling equipment
* Construction and earth moving equipment
* Agricultural machinery
* Industrial vehicles

P40-U78 Manual 5 Spool Monoblock Directional Valve application image
