P40-U78 Manual 7 Spool Monoblock Directional Valve

Rated Flow:40 L/min (10.5 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:35*22*12

Netweight:12.50 kg

Availability: In Stock

  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • Manual and Joystick
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
745 Views are Looking for this Product

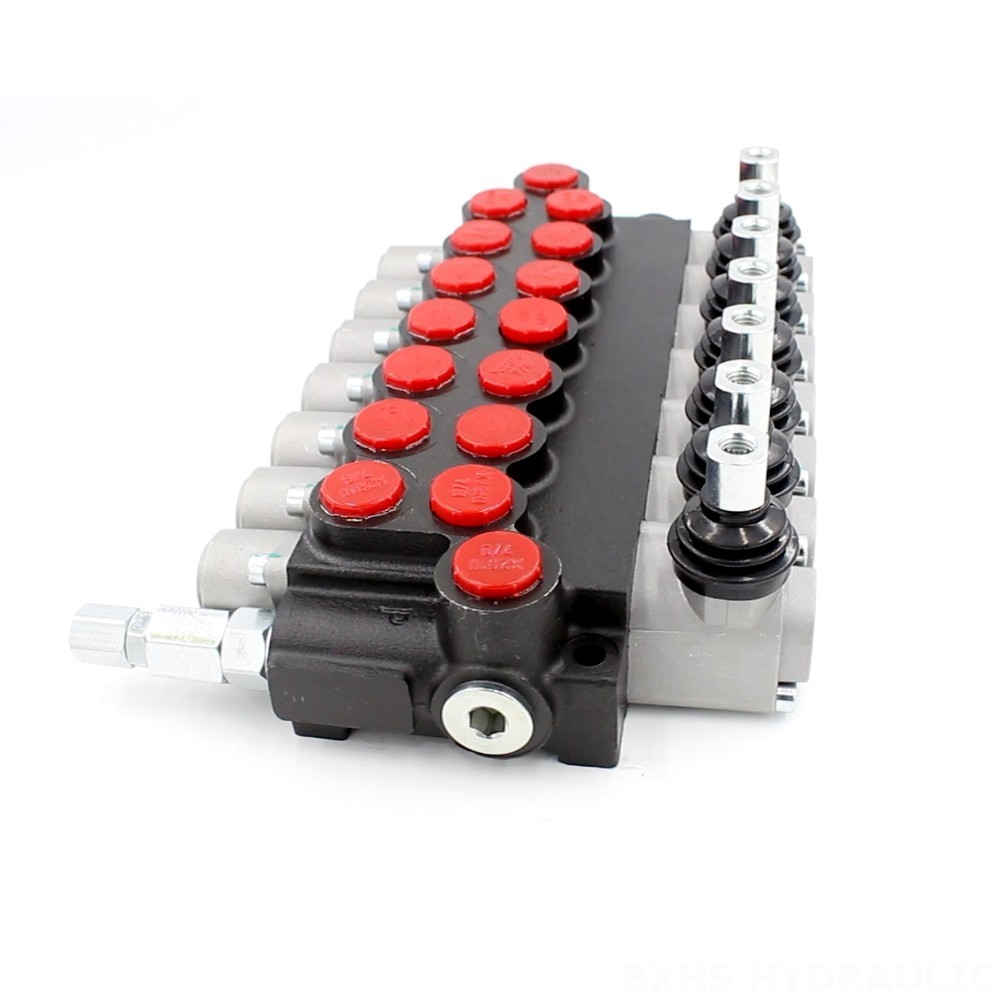

P40-U78 Manual 7 Spool Monoblock Directional Valve detailed image

P40-U78 Manual 7 Spool Monoblock Directional Valve detailed image

P40-U78 Manual 7 Spool Monoblock Directional Valve drawing image

The P40-U78 Manual 7 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it offers exceptional flow control and pressure handling capabilities. Its compact monoblock design ensures durability and reliability in harsh operating environments.

P40 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 250 bar (3600 psi)
Inlet Port G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Outlet Port G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Size G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

**Product Features and Benefits:**

* Manual control for precise operation
* 7 spool design for versatility and customization
* Monoblock construction for strength and reliability
* Rated flow of 40 L/min for efficient fluid flow
* Maximum pressure of 250 bar for handling high system pressures
* Operating viscosity range of 15 - 75 mm²/s for compatibility with various hydraulic fluids
* Wide ambient temperature range of -40°C to +80°C for use in challenging environments

**Applications:**

The P40-U78 Manual 7 Spool Monoblock Directional Valve is ideal for a wide range of hydraulic applications, including:

* Material handling equipment
* Construction machinery
* Agricultural machinery
* Industrial vehicles
* And many more
