P40 Valve Factory Wholesale Supply: P80-G34 Hydraulic Valves from the Manufacturer

Control Method:Manual

Spool:6 Spool

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:250 bar (3600 psi)

Inlet Port:G3/4

Outlet Port:G3/4

Port Size:G3/4

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Packagingsize:26*36*11

Grossweight:18.60 kg

Availability: In Stock

1340 Views are Looking for this Product

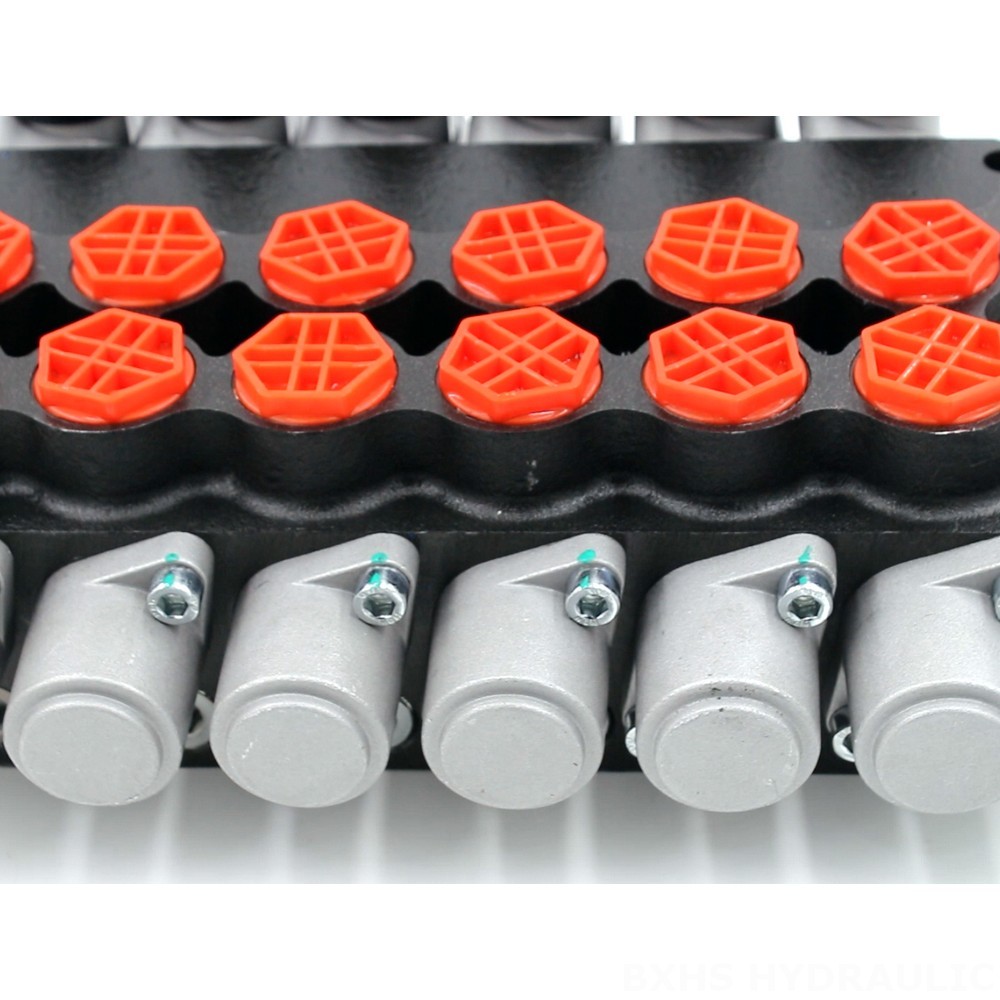

P40 Valve Factory Wholesale Supply: P80-G34 Hydraulic Valves from the Manufacturer detailed image

P40 Valve Factory Wholesale Supply: P80-G34 Hydraulic Valves from the Manufacturer detailed image

P40 Valve Factory Wholesale Supply: P80-G34 Hydraulic Valves from the Manufacturer drawing image

The P80-G34 Hydraulic Valve is a high-performance, 6-section monoblock valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. It offers a rated flow of 80 L/min, a maximum pressure of 250 bar, and a manual control method. We offer OEM, ODM, and private label options, as well as custom designs to meet your specific needs.

P80 Series Monoblock Directional Valve Parameters
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure 315 bar (4600 psi)
Rated Flow 80 L/min (21.2 US gpm)
Structure Type Monoblock valve

This P80-G34 Hydraulic Valve is a robust and reliable solution for demanding applications. Its 6-section design provides precise control and versatility. The valve features a rated flow of 80 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of equipment. It operates with a manual control method for easy and intuitive operation. As a manufacturer, we offer flexible options, including OEM, ODM, and private label services. We also provide custom design and manufacturing capabilities to meet your unique requirements. Whether you need a standard valve or a tailored solution, we are here to support your needs. Contact us today to discuss your specific application and explore our comprehensive range of services.

P40 Valve Factory Wholesale Supply: P80-G34 Hydraulic Valves from the Manufacturer application image

P40 Valve Factory Wholesale Supply: P80-G34 Hydraulic Valves from the Manufacturer packing image

P40 Valve Factory Wholesale Supply: P80-G34 Hydraulic Valves from the Manufacturer company image

P40 Valve Factory Wholesale Supply: P80-G34 Hydraulic Valves from the Manufacturer certification image
