P40J Manual 1 Spool Monoblock Directional Valve

Rated Flow:40 L/min (10.5 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P40 Series Monoblock Directional Valve

Productsize:22*15*10

Netweight:3.00 kg

Availability: In Stock

  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • Manual and Joystick
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
754 Views are Looking for this Product

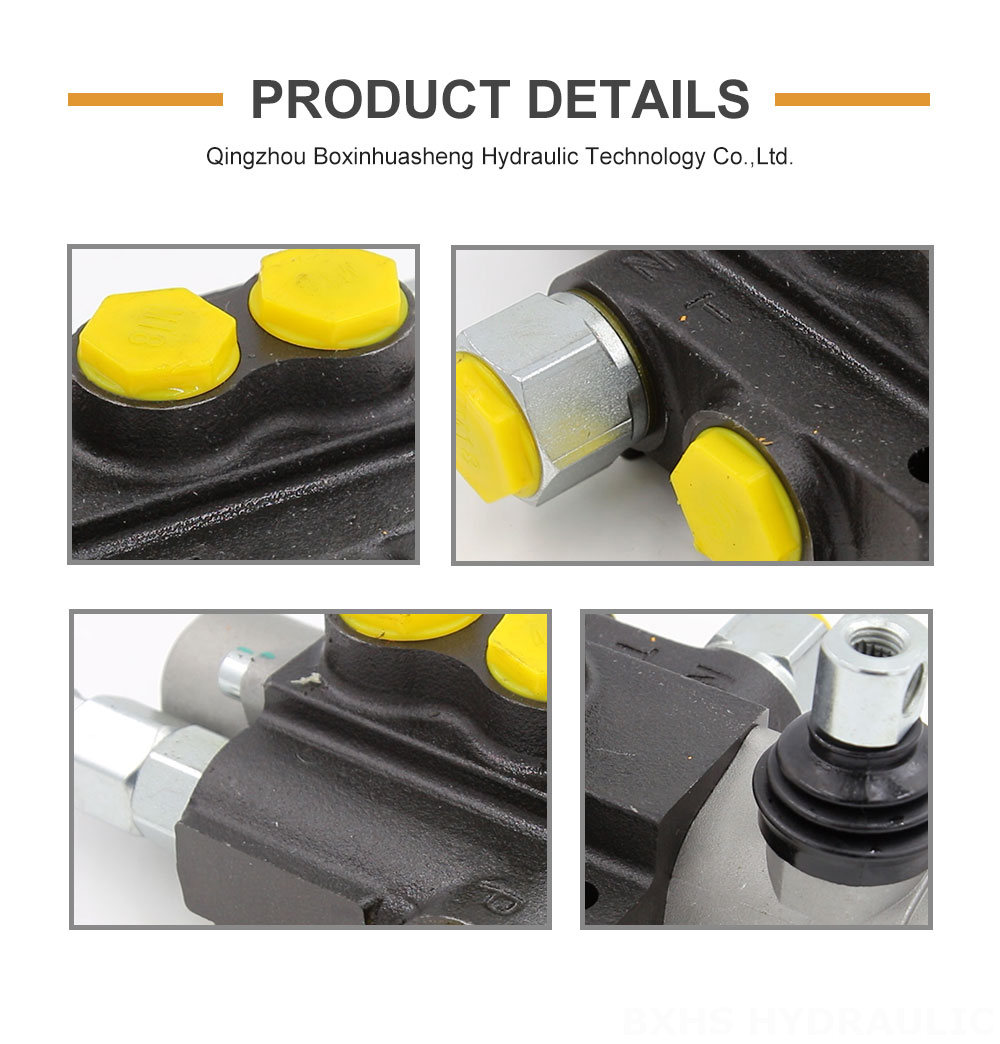

P40J Manual 1 Spool Monoblock Directional Valve detailed image

P40J Manual 1 Spool Monoblock Directional Valve detailed image

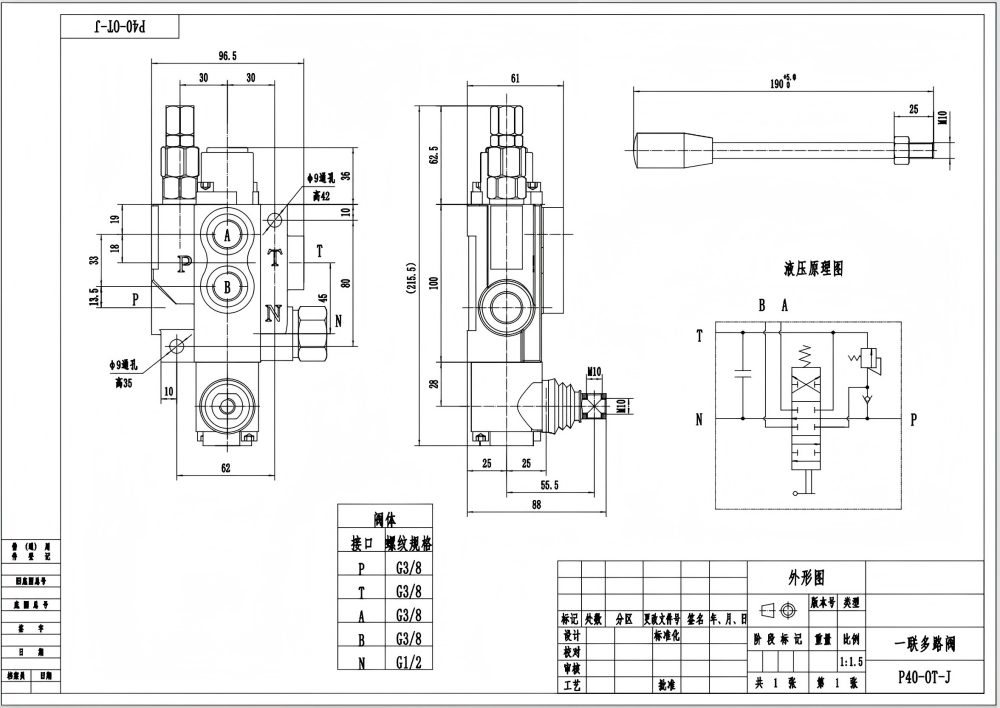

P40J Manual 1 Spool Monoblock Directional Valve drawing image

The P40J Manual 1 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for precise flow control in various hydraulic systems. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve offers reliable and efficient operation. Its compact monoblock design ensures durability and easy installation.

P40 Series Monoblock Directional Valve Parameters
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick, Manual and Joystick
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Rated Flow 40 L/min (10.5 US gpm)
Max Pressure 250 bar (3600 psi)
Inlet Port G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Outlet Port G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Size G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Structure Type Monoblock valve
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)

**Product Features and Benefits:**

- Manual control for precise flow regulation
- Monoblock construction for durability and compact size
- 40 L/min rated flow for efficient system performance
- 250 bar maximum pressure for demanding applications
- Wide operating viscosity range (15 - 75 mm²/s) for compatibility with various fluids
- Operating temperature range from -40°C to +80°C for reliable performance in diverse conditions

**Applications:**

- Hydraulic systems in construction equipment
- Agricultural machinery
- Industrial vehicles
- Material handling equipment
- Telehandlers
- Forklifts
- All-terrain cranes
- Stackers
- Aerial platforms
- Motor graders
- Excavators
- Skid steer loaders
- Compact wheel loaders
