P80-AQF-G34-G12-2OT Manual 2 Spool Monoblock Directional Valve

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Productsize:25.1*17*8

Netweight:7.80 kg

Availability: In Stock

Description

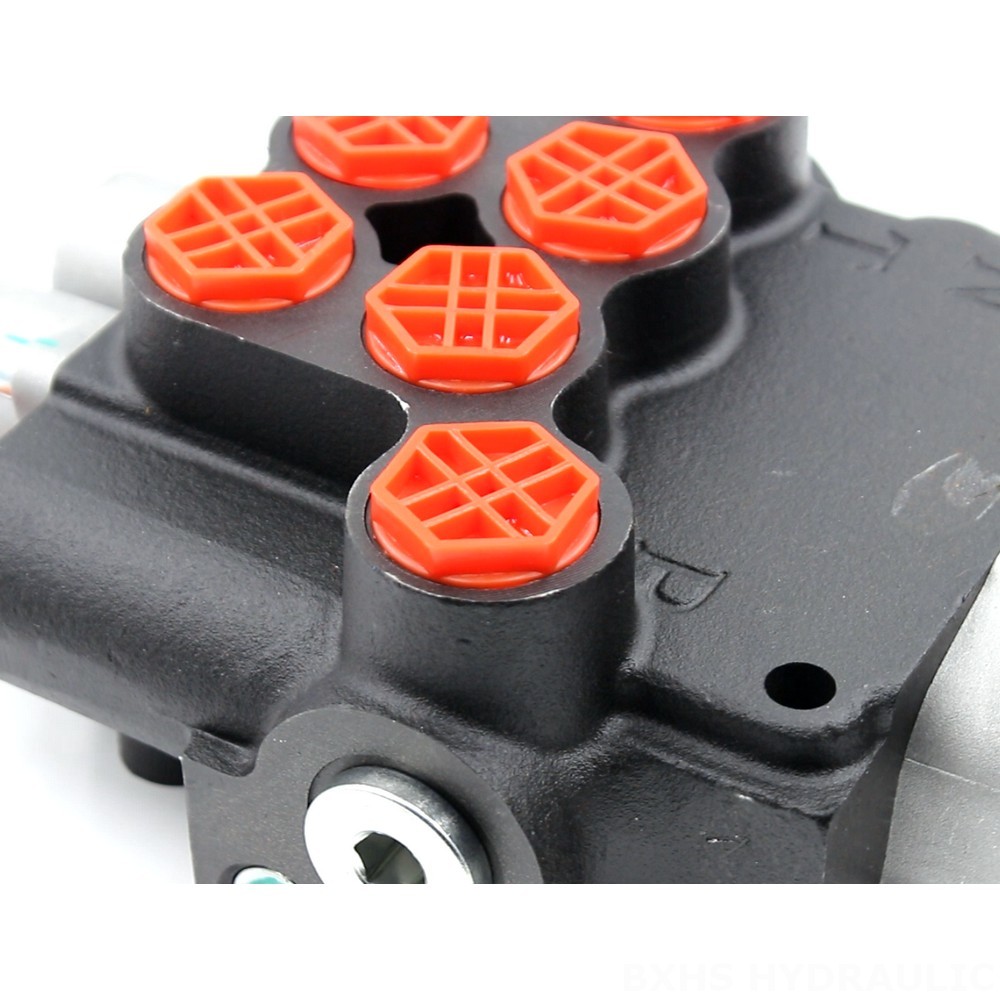

P80-AQF-G34-G12-2OT Manual 2 Spool Monoblock Directional Valve detailed image

P80-AQF-G34-G12-2OT Manual 2 Spool Monoblock Directional Valve drawing image

The P80-AQF-G34-G12-2OT Manual 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in demanding applications. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve is capable of handling large flow rates and pressures. The monoblock construction provides a compact and robust design, while the manual control allows for precise and responsive operation.

P80 Series Monoblock Directional Valve Parameters
Spool	1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Control Method	Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Port Size	G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT
Section	1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure	315 bar (4600 psi)
Rated Flow	80 L/min (21.2 US gpm)
Structure Type	Monoblock valve
Inlet Port	G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

**Product Features and Benefits:**

* High flow rate: 80 L/min (21.2 US gpm) for efficient operation
* High pressure: 250 bar (3600 psi) for demanding applications
* Monoblock construction: Compact and robust design for durability
* Manual control: Precise and responsive operation
* Wide operating temperature range: -40°C to +80°C (-40°F to +176°F) for use in various environments
* 2 spool: Versatile control for multiple functions

**Applications:**

* Mobile hydraulics: Construction machinery, agricultural equipment, industrial vehicles
* Material handling: Forklifts, cranes, stackers
* Power transmission: Pumps, motors, cylinders
* Industrial automation: Machine tools, robotics, manufacturing equipment

P80-AQF-G34-G12-2OT Manual 2 Spool Monoblock Directional Valve application image
