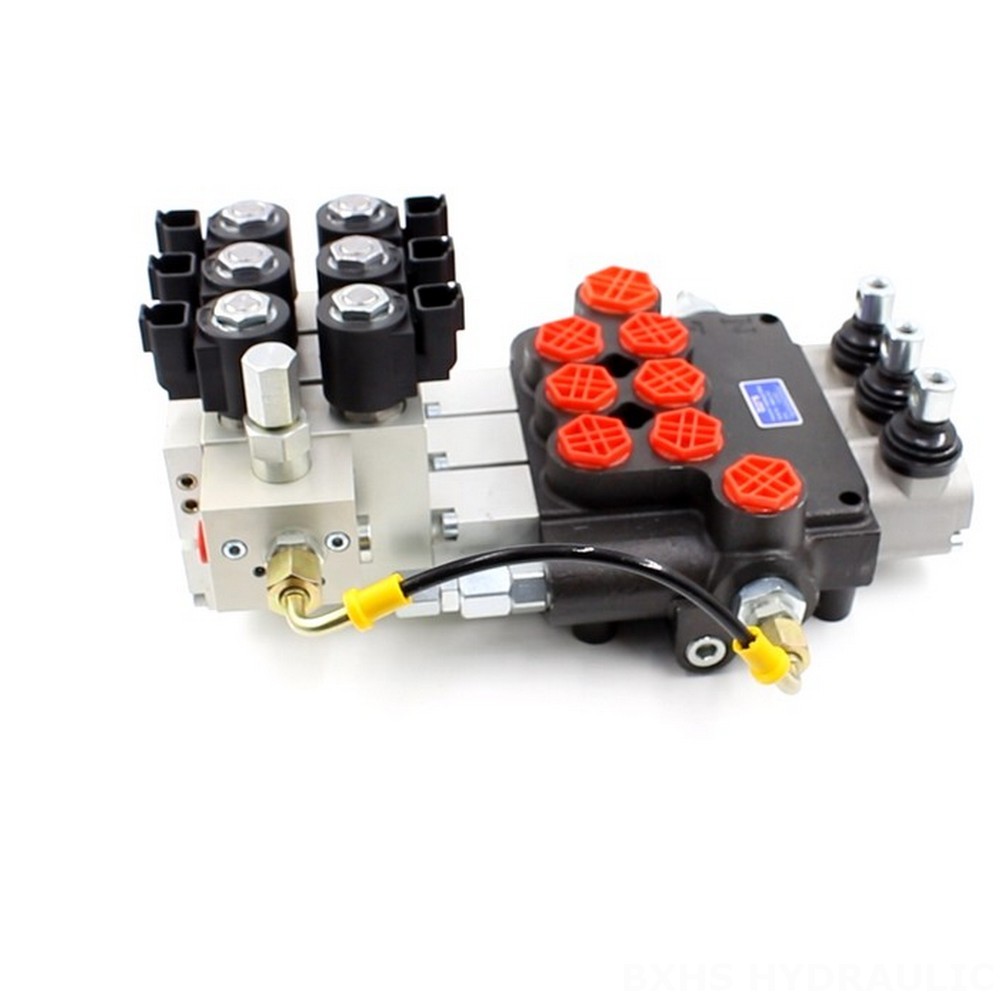

P80 Electro-hydraulic 3 Spool Monoblock Directional Valve

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Productsize:32*35*18

Netweight:17.50 kg

Availability: In Stock

  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
1816 Views are Looking for this Product

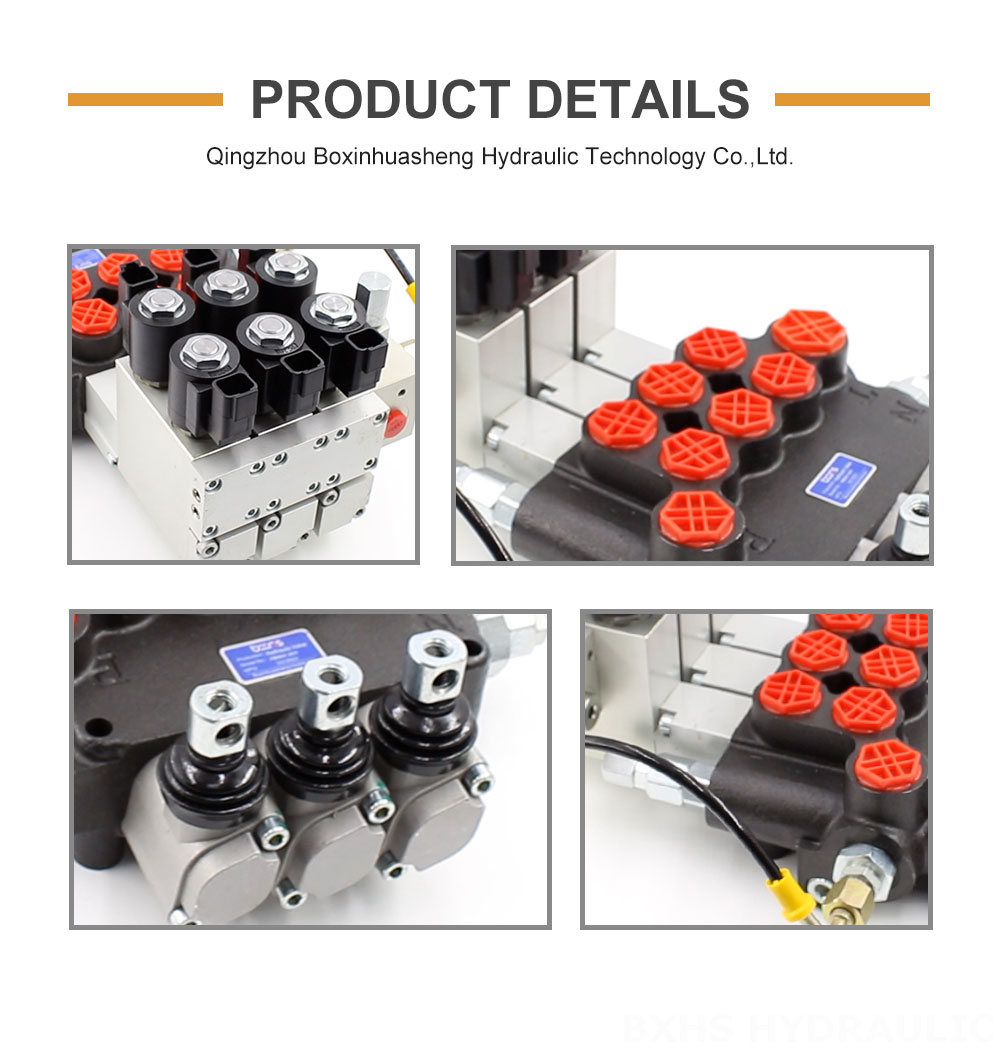

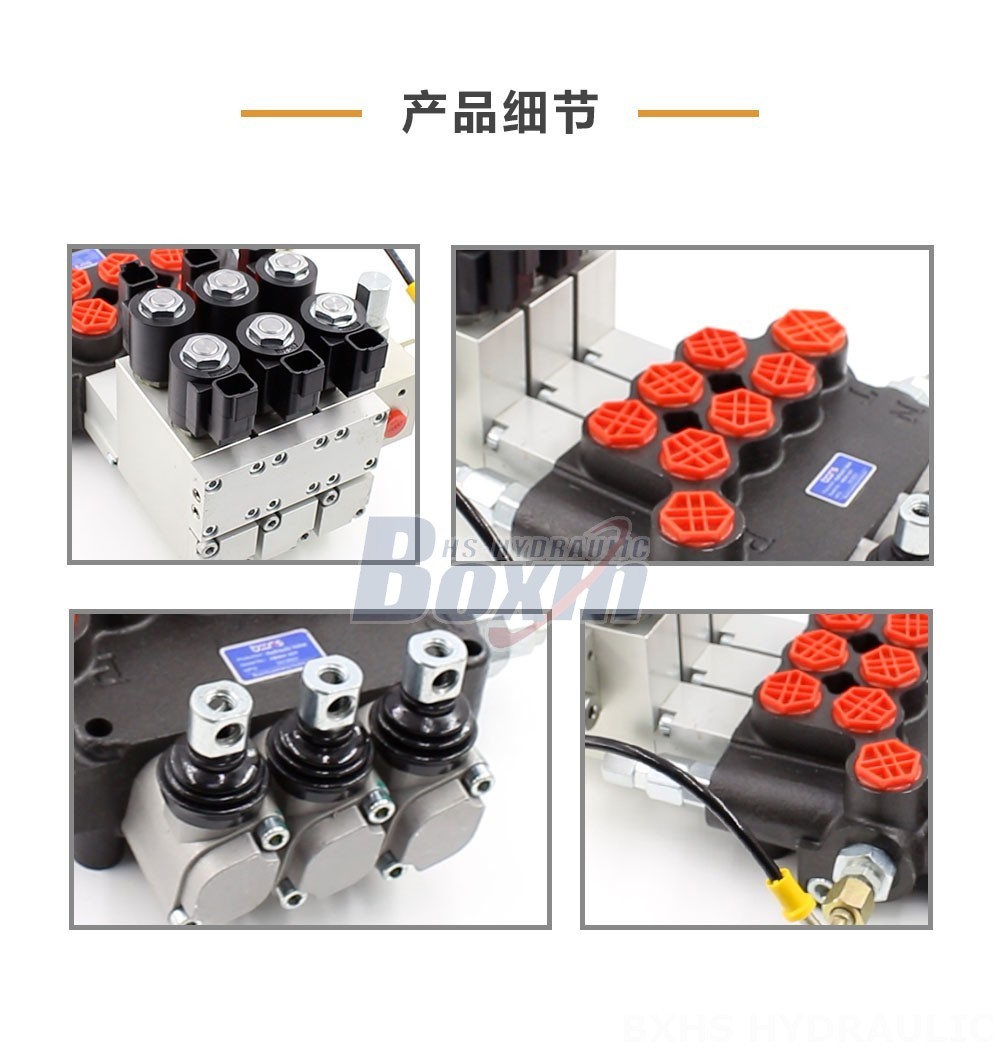

P80 Electro-hydraulic 3 Spool Monoblock Directional Valve detailed image

P80 Electro-hydraulic 3 Spool Monoblock Directional Valve detailed image

P80 Electro-hydraulic 3 Spool Monoblock Directional Valve drawing image

The P80 Electro-hydraulic 3 Spool Monoblock Directional Valve is a high-performance valve designed for demanding applications. With a rated flow of 80 L/min and a max pressure of 250 bar, this valve is ideal for use in a wide range of hydraulic systems. The valve's compact, monoblock design makes it easy to install and maintain. and Electro-hydraulic valves are often used in applications where precise control of the hydraulic system is required.

P80 Series Monoblock Directional Valve Parameters
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Port Size G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure 315 bar (4600 psi)
Rated Flow 80 L/min (21.2 US gpm)
Structure Type Monoblock valve
Inlet Port G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

**Product Features and Benefits:**

* High flow rate of 80 L/min
* High pressure rating of 250 bar
* Compact, monoblock design
* Electro-hydraulic control for precise operation
* Wide range of applications

**Applications:**

* Material handling equipment
* Construction and earth moving equipment
* Agricultural machinery
* Industrial vehicles
