P80-G12-G34-2OT Manual 2 Spool Monoblock Directional Valve

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Productsize:25.1*17*8

Netweight:7.80 kg

Availability: In Stock

Description

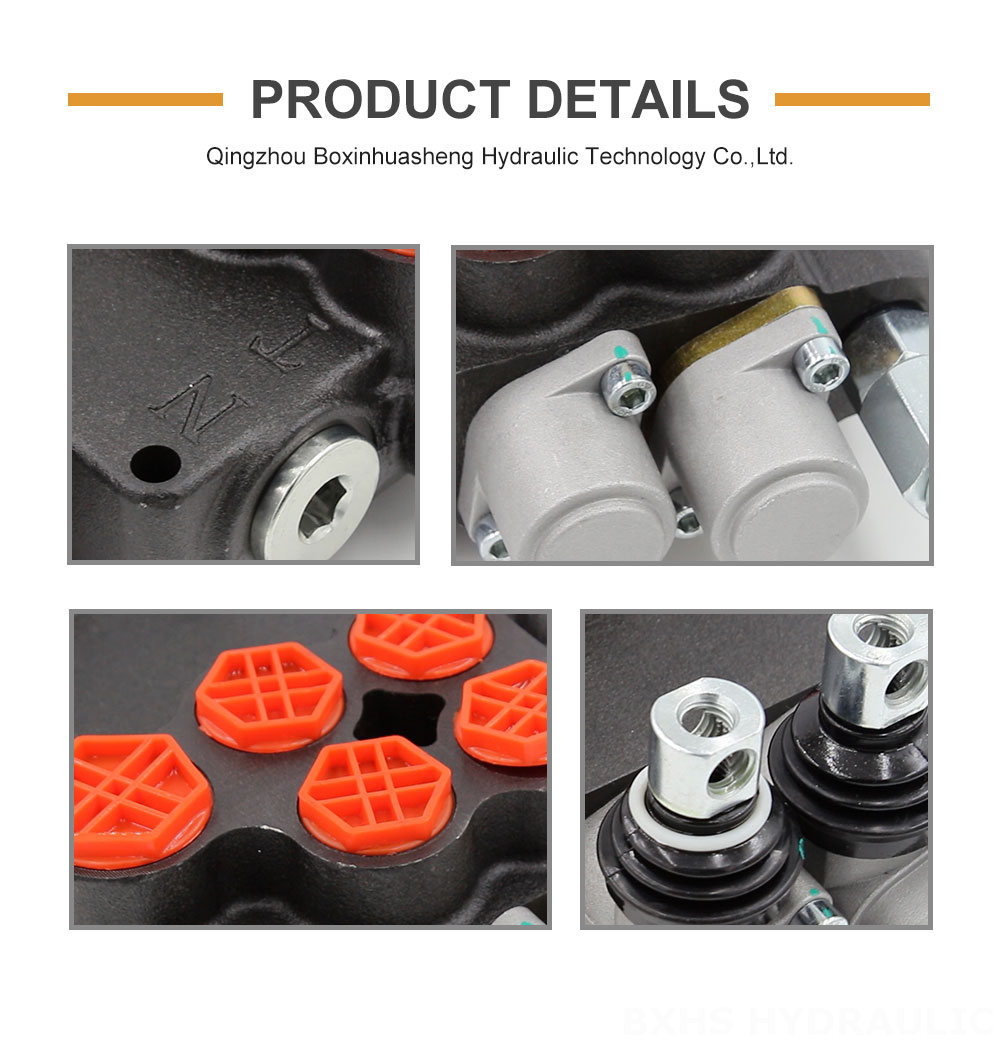

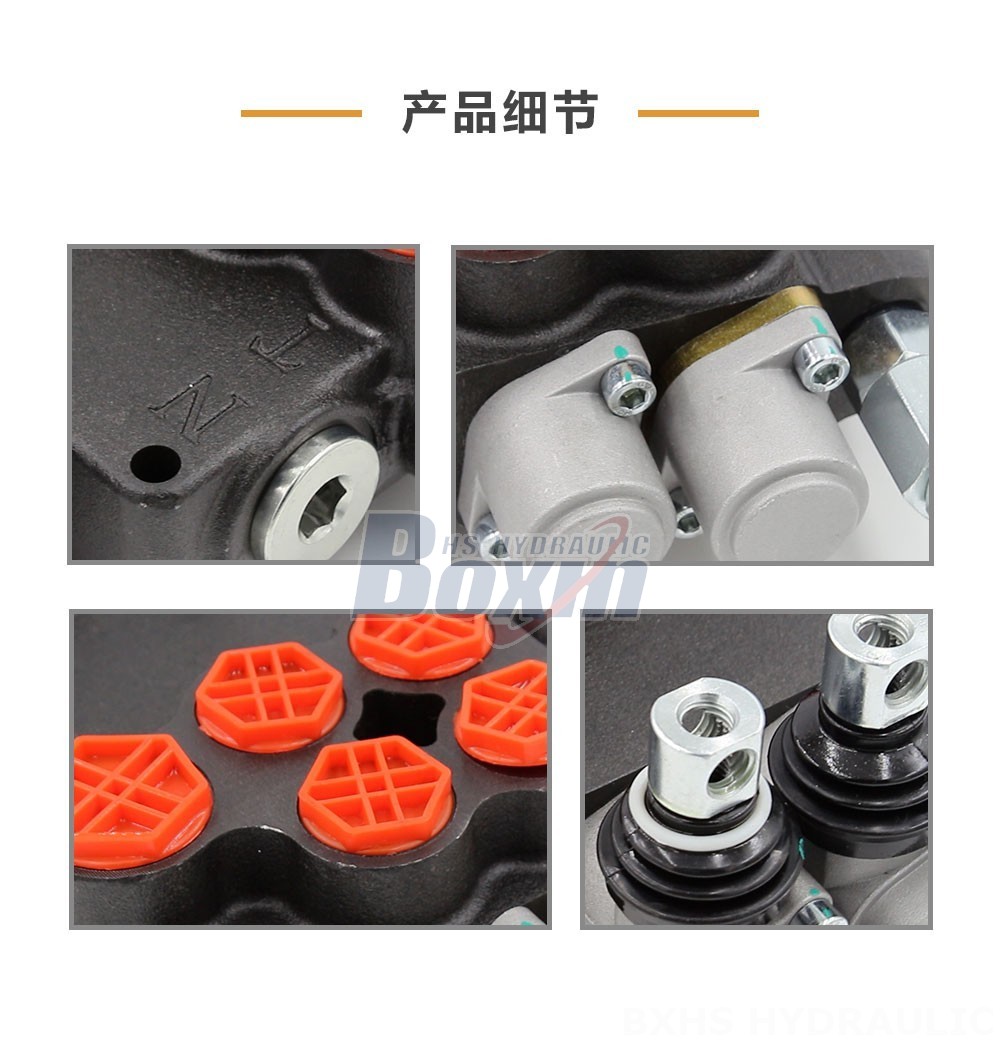

P80-G12-G34-2OT Manual 2 Spool Monoblock Directional Valve detailed image

P80-G12-G34-2OT Manual 2 Spool Monoblock Directional Valve drawing image

The P80-G12-G34-2OT Manual 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of applications. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve is capable of handling even the most demanding applications. The monoblock construction provides superior strength and durability, while the 2 spool design allows for precise control of fluid flow. This valve is also temperature resistant, with an operating temperature range of -40°C to +80°C.

P80 Series Monoblock Directional Valve Parameters
Spool	1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Control Method	Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Port Size	G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT
Section	1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Ambient Temperature Range	-40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range	15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure	315 bar (4600 psi)
Rated Flow	80 L/min (21.2 US gpm)
Structure Type	Monoblock valve
Inlet Port	G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

**Product Features and Benefits:**

* Manual control for precise fluid flow management
* 2 spool design for independent control of two fluid circuits
* Monoblock construction for superior strength and durability
* Rated flow of 80 L/min for high-flow applications
* Maximum pressure of 250 bar for demanding applications
* Operating viscosity range of 15 - 75 mm²/s for compatibility with a wide range of fluids
* Ambient temperature range of -40°C to +80°C for use in extreme environments
* Compact design for easy installation in space-constrained applications

**Applications:**

* Material handling equipment
* Construction and earth moving equipment
* Agricultural machinery
* Industrial vehicles

P80-G12-G34-2OT Manual 2 Spool Monoblock Directional Valve application image
