P80-G12-G34 Manual 4 Spool Monoblock Directional Valve

Rated Flow:80 L/min (21.2 US gpm)

Max Pressure:250 bar (3600 psi)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Productsize:25.1*24.6*8

Netweight:12.80 kg

Availability: In Stock

  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
905 Views are Looking for this Product

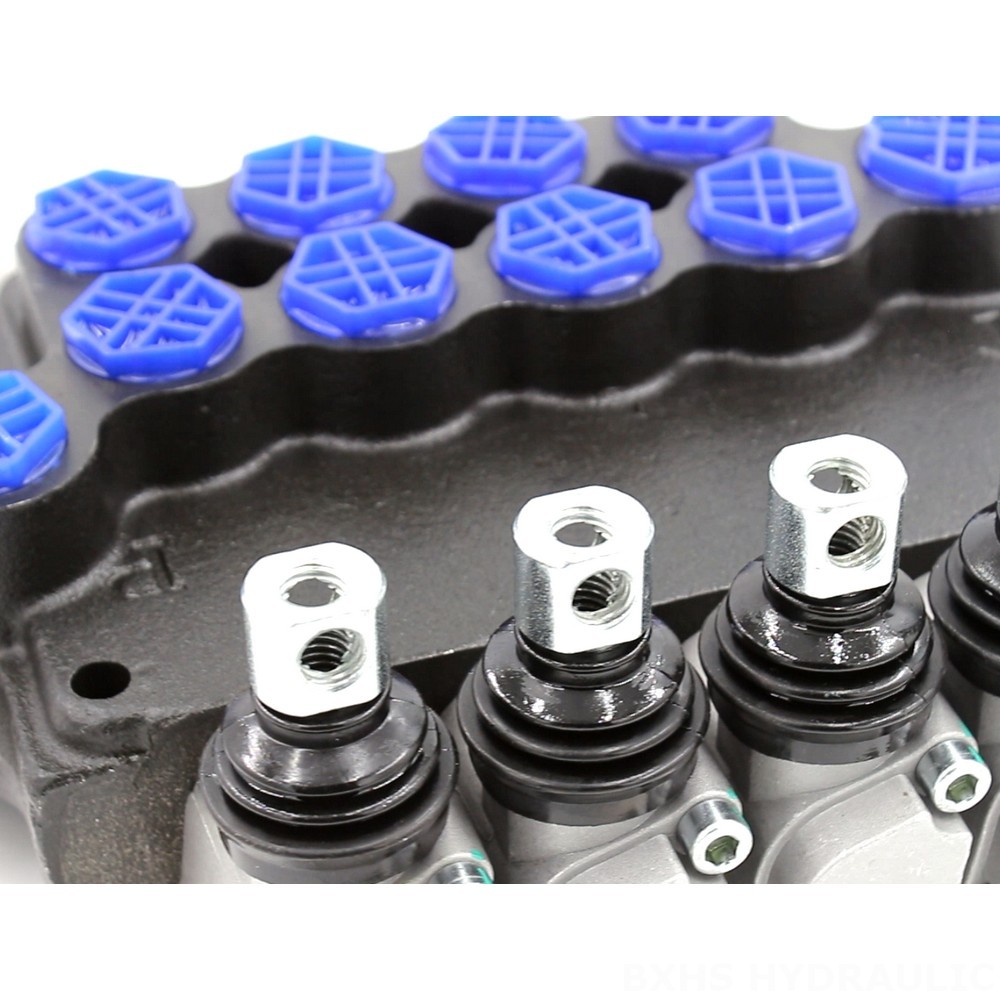

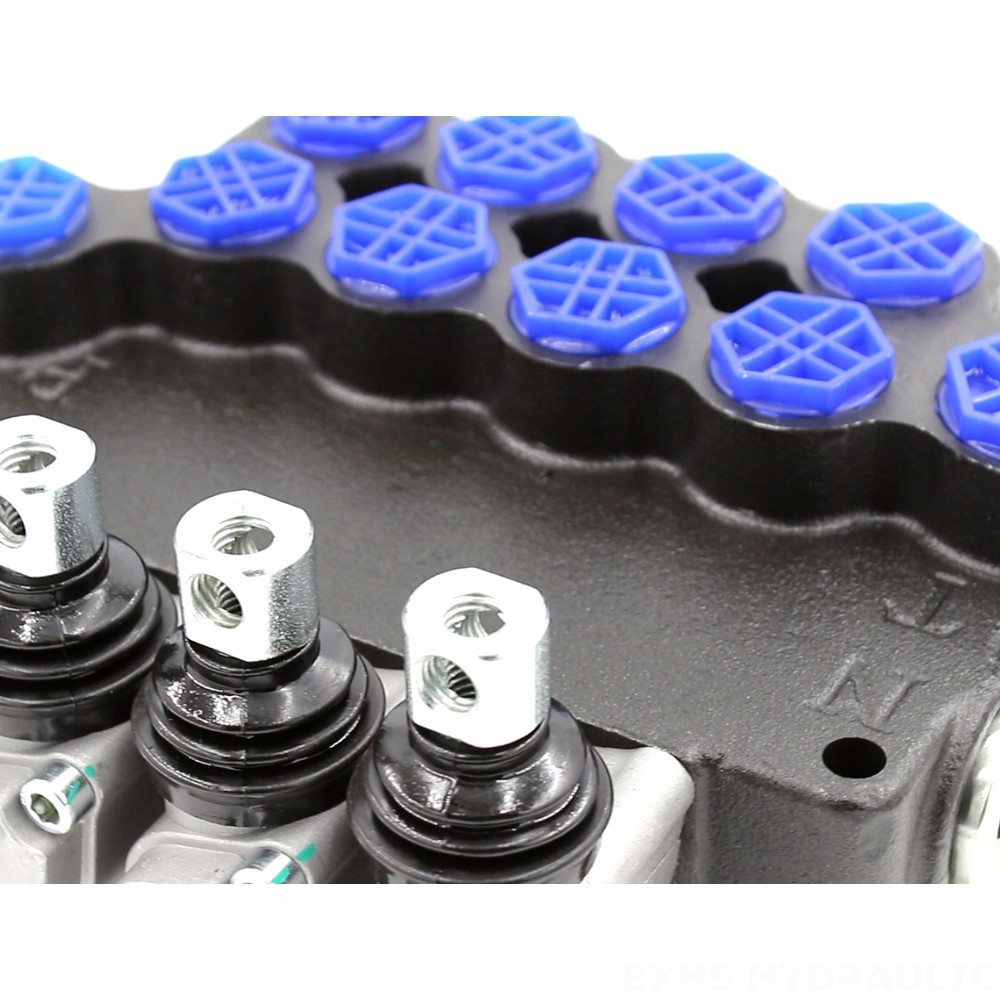

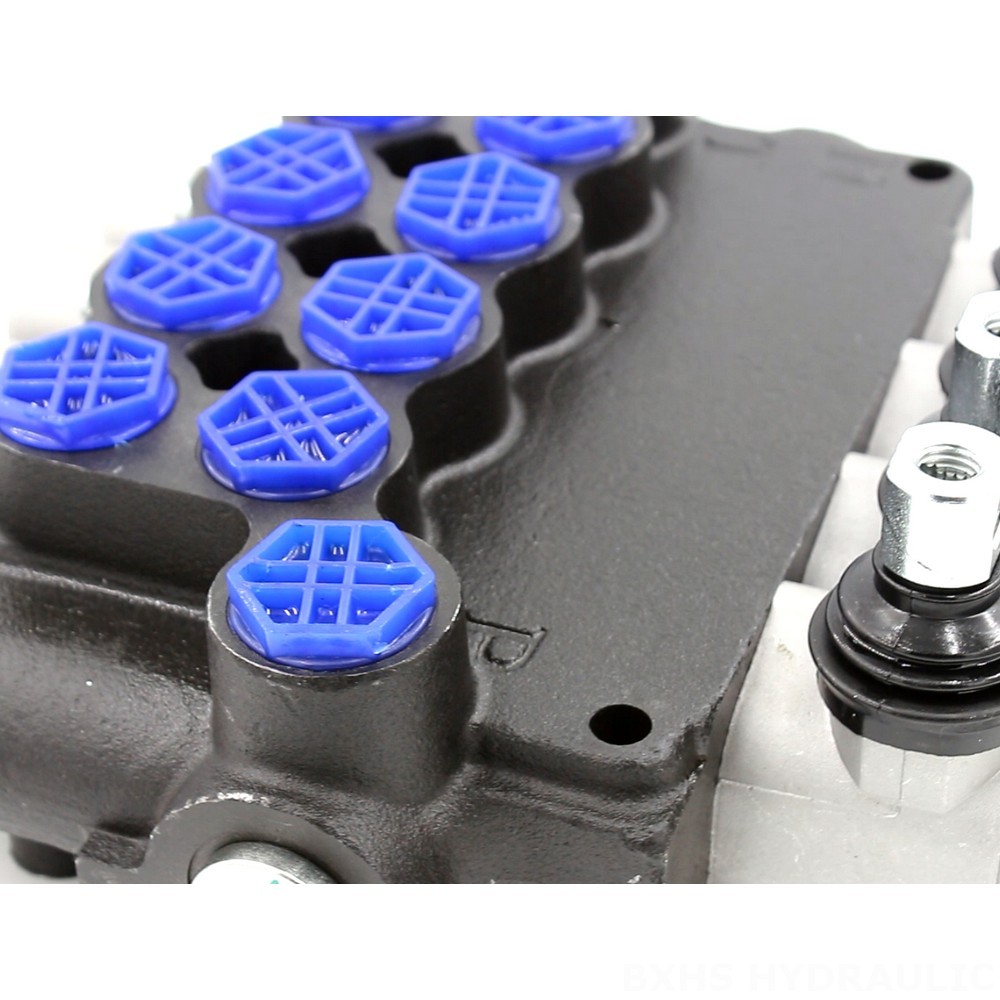

P80-G12-G34 Manual 4 Spool Monoblock Directional Valve detailed image

P80-G12-G34 Manual 4 Spool Monoblock Directional Valve detailed image

P80-G12-G34 Manual 4 Spool Monoblock Directional Valve drawing image

The P80-G12-G34 Manual 4 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications in various industries, including material handling, construction, agriculture, and industrial vehicles. It features a manual control mechanism, a rated flow of 80 L/min, a maximum pressure of 250 bar, and a monoblock structure for durability and compact installation.

P80 Series Monoblock Directional Valve Parameters
Spool 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Control Method Manual, Pneumatic, Electro-pneumatic, Electro-hydraulic, Solenoid, Hydraulic, Hydraulic and Manual, Cable, Joystick
Port Size G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT
Section 1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Max Pressure 315 bar (4600 psi)
Rated Flow 80 L/min (21.2 US gpm)
Structure Type Monoblock valve
Inlet Port G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

**Product Features and Advantages:**

* Robust monoblock construction for durability and reduced leakage
* Manual control for precise and responsive operation
* Compact design for space-saving installation
* Versatile 4-spool design allows for multiple simultaneous control functions
* Wide operating viscosity range (15 - 75 mm²/s) for compatibility with various hydraulic fluids
* Operating temperature range: -40°C to +80°C for performance in harsh environments

**Applications:**

The P80-G12-G34 Manual 4 Spool Monoblock Directional Valve is suitable for a range of applications, including:

* Material handling equipment (e.g., forklifts, telehandlers, stackers)
* Construction and earth-moving machinery (e.g., excavators, skid steer loaders, motor graders)
* Agricultural machinery (e.g., tractors, harvesters, balers)
* Industrial vehicles (e.g., sweepers, waste compactors, hook-loaders)
